Raychem TE Connectivity FLDWC03111502 Hook-up Wire

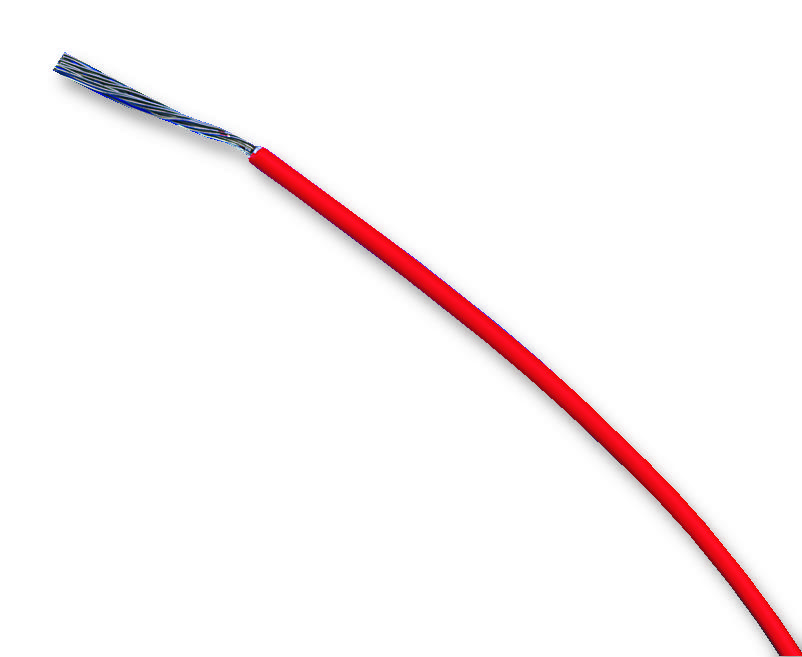

The FLDWC0311-1.50-2 is a 100-meter length of FlexLite™ dual wall hook-up wire. It features a tin-plated copper conductor and radiation-cross-linked modified polyalkene insulation. The wire complies with VW-1 flammability standards and offers a maximum resistance of 13.7 ohms per kilometer at 20°C. It has a minimum insulation resistance of 1524 megaohms, a minimum insulation tensile strength of 17.2 N/mm², and a minimum insulation elongation of 150%. This versatile wire is suitable for industrial and commercial applications.
Raychem TE Connectivity FLDWC03111502 Hook-up Wire Specifications:
- Conductor Material: Tin Plated Copper
- Insulation Material: Radiation-Crosslinked Modified Polyalkene
- Insulation Thickness: 0.10mm (Min), 0.127mm (Avg.)
- Jacket Thickness: 0.05mm (Min), 0.076mm (Avg.)
- Voltage Rating: 600 Volts (rms)
- Temperature Rating: 125°C
- Flame Rating: VW1
- Insulation Resistance: 1524 Megaohms.km (Min.)
- Insulation Tensile Strength: 17.2 N/mm² (Min.)
- Insulation Elongation: 150% (Min.)
- Shrinkage: 3 mm max at 125°C/1 hour
- Crosslink Verification: 300 +3°C/1 hr. as per WCD3106 clause 3.4.7
- Spark Test Voltage: 8.0 kV
Buy the Tyeo FLDWC0311 – Reliable Hook-up Wire for Industrial Applications
Purchase Tyeo FLDWC0311 hook-up wire online for your industrial and commercial projects. This high-quality dual wall wire with tin-plated copper conductor offers excellent electrical performance, insulation durability, and compliance with safety standards. Its radiation-cross-linked polyalkene insulation provides thermal stability up to 125°C, while the 600V rating ensures reliable power transmission. Perfect for complex wiring, it features a minimal resistance of 13.7 ohms/km, high insulation resistance, and flame retardancy, making it the ideal choice for professionals seeking dependable wiring components.
Get Tyeo FLDWC0311 today—built for precision and long-lasting durability in industrial wiring solutions.
