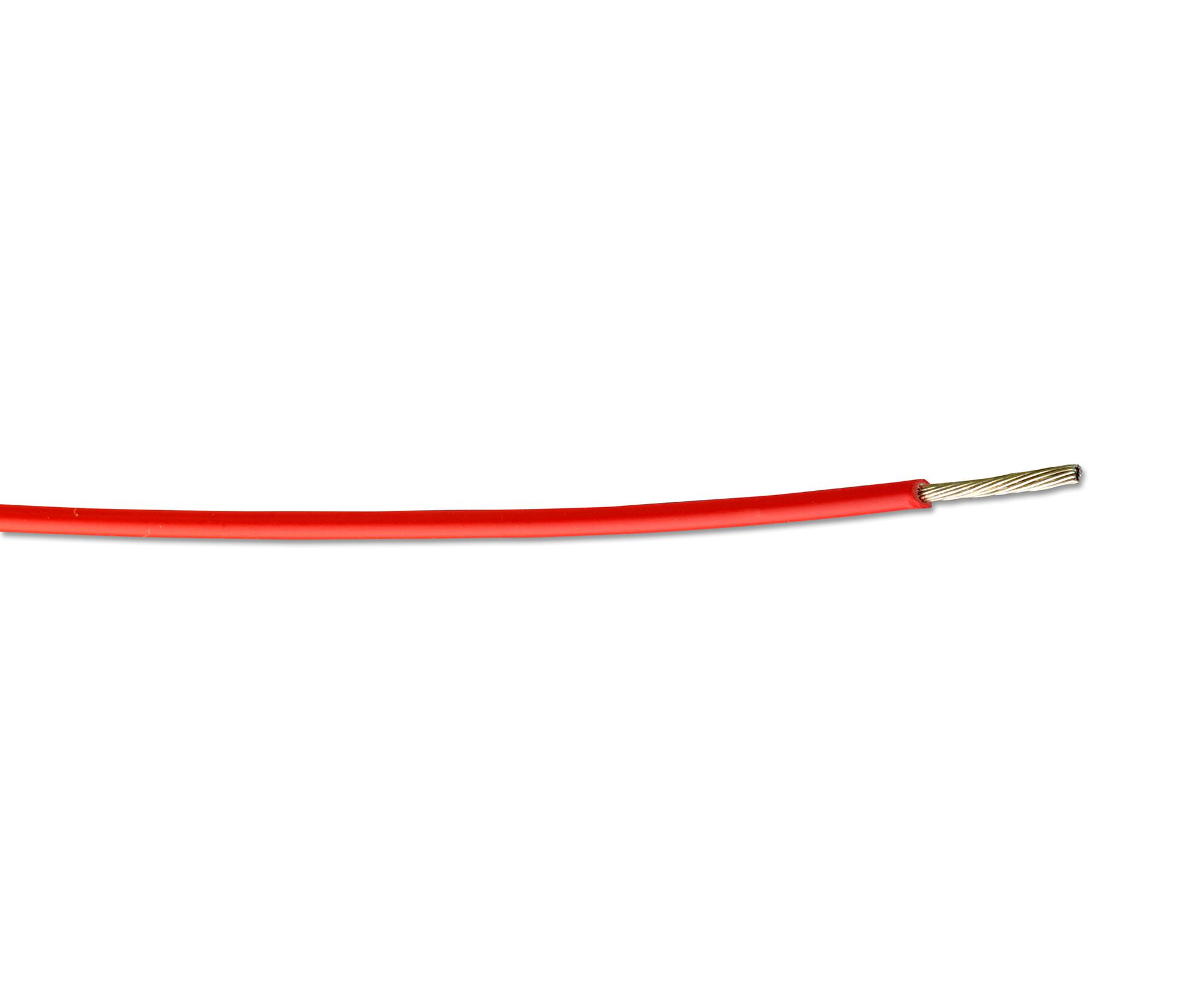

Raychem TE Connectivity FLHTC03110352 High-Temperature Hookup Wire
Flexible high-temperature hookup wire insulated with modified ETFE, suitable for environments up to 200°C and 600 volts. Includes radiation crosslinking, UL style 3557, and UL labeling. Features tin-plated copper conductors with various strandings and diameters, offering excellent resistance and tensile strength for industrial and electronic applications. Designed for reliable performance in demanding conditions, with specifications meeting UL and WCD 3106 standards, ensuring safety, durability, and compliance for high-temperature wiring needs.
Raychem TE Connectivity FLHTC03110352 High-Temperature Hookup Wire Specifications:
- Conductor Material: Tin Plated Copper
- Insulation Material: Radiation Crosslinked Modified ETFE
- Temperature Rating: 200°C
- Voltage Rating: 600 Volts
- Conductor Sizes: 0.25 mm to 2.00 mm strandings, various diameters from 0.55 mm to 2.04 mm
- Minimum Insulation Thickness: 0.15 mm to 0.36 mm depending on size
- Insulation Resistance: ≥ 1524 MΩ·km
- Tensile Strength: ≥ 34.5 N/mm²
- Insulation Elongation: ≥ 60% after testing at 232°C for 7 days
- Impulse Voltage: 8 kV
- UL Style: 3557, Effect effect WCD 3106
- Compliance: UL Listed, UL labels present
- Testing Standards: WSD 3106, UL Factory Inspection Procedure 758
- Maximum Resistance per km: 83.3 to 2.24 ohms depending on wire size
- Finished Wire Weight: 1.03 to 24.6 kg/km
Buy the Buy Tyco Electronics ETFE High-Temperature Hookup Wire Part Number FLHTC0311-0352 Online
Purchase Tyco Electronics high-temperature hookup wire online today for your industrial and electronic projects. Designed with radiation crosslinked ETFE insulation, rated for 200°C and 600 volts, this wire ensures excellent performance and safety. Featuring tin-plated copper conductors with multiple strandings and diameters, it meets UL standards and WCD 3106 requirements. Ideal for demanding environments, its durable insulation provides high tensile strength, resistance, and elongation. Simplify your procurement process by buying online—experience fast delivery, quality assurance, and reliable service for all your wiring needs.
Get Tyco Electronics high-temperature hookup wire today—built for precision, durability, and reliable performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity FLHTC03110352?
You can click on the BUY or RFQ button to purchase FLHTC03110352 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part FLHTC03110352?
You can download the FLHTC03110352 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of FLHTC03110352?
Raychem TE Connectivity
