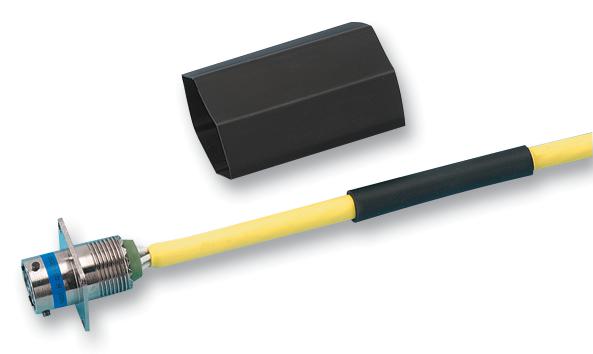

Raychem TE Connectivity HRSR060FR10 High-Ratio Heat Shrink Tubing
The High-Ratio, High-Temperature, Flexible, Thick Wall Polyolefin Heat-Shrinkable Tubing is designed for thick wall insulation, strain relief, and abrasion protection in demanding environments. With shrink ratios as high as 6:1, it provides excellent environmental sealing against moisture, oils, and chemicals while enduring temperatures from -55°C to 135°C. Manufactured from radiation-crosslinked polyolefins, it offers superior flexibility, mechanical toughness, and RoHS compliance. Suitable for sealing large transitions, repairing damaged cables, and providing reliable insulation in harsh conditions, it can be used in automotive, aerospace, and industrial applications with optional factory-applied adhesives for watertight seals.
Raychem TE Connectivity HRSR060FR10 High-Ratio Heat Shrink Tubing Specifications:
- Shrink Ratio: up to 6:1
- Temperature Range: -55°C to 135°C
- Minimum Shrink Temperature: 135°C [275°F]
- Minimum Full Recovery Temperature: 150°C [302°F]
- Wall Thickness After Heating: 0.155 inches (approximate, varies with size)
- Inside Diameter (Expanded): Ranges from 4.0 inches to 49.2 inches
- Outer Diameter: Up to 59.2 inches at maximum expansion
- Material: Radiation-crosslinked polyolefin
- Flame Retardant: Yes; meets ASTM D 635
- RoHS compliant
- Application: Environmental sealing, insulation, protection of wire splices, cable repairs, and conduit protection
- Color: Black (standard), other colors available upon request
- Standard Lengths: 1.2 meters (4 feet), 7.5 meters (25 feet)
- Ordering includes specifying product name, size, length, and color
Buy the Raychem HRHT – Reliable High-Ratio Heat-Shrinkable Tubing for Industrial Applications
Experience the superior protection of Raychem's High-Ratio Heat Shrink Tubing, designed for thick wall insulation, sealing large transitions, and repairing damaged cables in harsh industrial, aerospace, and automotive environments. Offering shrink ratios up to 6:1 and operating temperatures from -55°C to 135°C, it ensures reliable environmental sealing, abrasion resistance, and mechanical toughness. Custom lengths and colors are available, making it ideal for challenging wiring applications requiring long-term durability and high performance sealed solutions. Buy online today for quality guaranteed and fast delivery.
Get Raychem HRHT high-temperature tubing today—built for robust insulation and long-lasting protection in demanding environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity HRSR060FR10?
You can click on the BUY or RFQ button to purchase HRSR060FR10 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part HRSR060FR10?
You can download the HRSR060FR10 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of HRSR060FR10?
Raychem TE Connectivity
