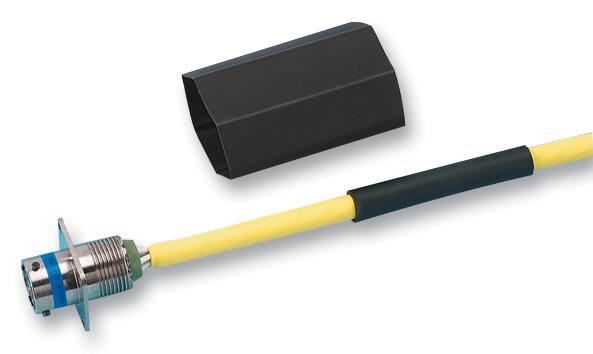

Raychem TE Connectivity HRSR125FR10 Heat Shrinkable Tubing
High-ratio heat-shrinkable tubing offers exceptional toughness, durability, and environmental sealing with water-tight performance in wet and corrosive environments. Designed to accommodate large cable and connector assemblies, it features flame-retardant, semi-rigid, or high-flex options. The tubing shrinks to fit with a ratio of 5.6:1, providing excellent insulation and abrasion protection. Approved by ABS and Lloyd's, it withstands temperatures from -55°C to 110°C, making it ideal for marine, industrial, and electrical applications requiring reliable strain relief and environmental sealing.
Raychem TE Connectivity HRSR125FR10 Heat Shrinkable Tubing Specifications:
- Inside Diameter: 15.24 mm (0.600 inch) to 101.60 mm (4.000 inch)
- Recovered Wall Thickness: 0.060 inch to 0.140 inch depending on size
- Shrink Ratio: 5.6:1
- Maximum Shrink Temperature: 121°C (250°F)
- Operating Temperature Range: -55°C to 110°C (-67°F to 230°F)
- Material Options: Flame-retardant (FR), non-flame-retardant (NF), or high-flex flame-retardant (HRSR)
- Color: Standard Black; Clear available upon request (not flame-retardant, HRHF only)
Buy the Raychem Series High-Ratio Heat-Shrinkable Tubing: HRSR125FR10
Enhance your electrical and industrial projects with Raychem Series high-ratio heat-shrinkable tubing. Offering excellent insulation, abrasion resistance, and environmental sealing, this tubing is perfect for large cable assemblies and demanding environments. Available in flame-retardant, high-flex, and semi-rigid options, it shrinks to fit with a ratio of 5.6:1, ensuring a secure, watertight seal. Suitable for temperature ranges from -55°C to 110°C, it provides reliable strain relief and long-lasting protection, making it an essential component for professional connectivity solutions.
Order your Raychem Series HRSR125FR10 high-ratio heat-shrink tubing today and ensure maximum environmental sealing and strain relief for your critical cable connections.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity HRSR125FR10?
You can click on the BUY or RFQ button to purchase HRSR125FR10 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part HRSR125FR10?
You can download the HRSR125FR10 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of HRSR125FR10?
Raychem TE Connectivity
