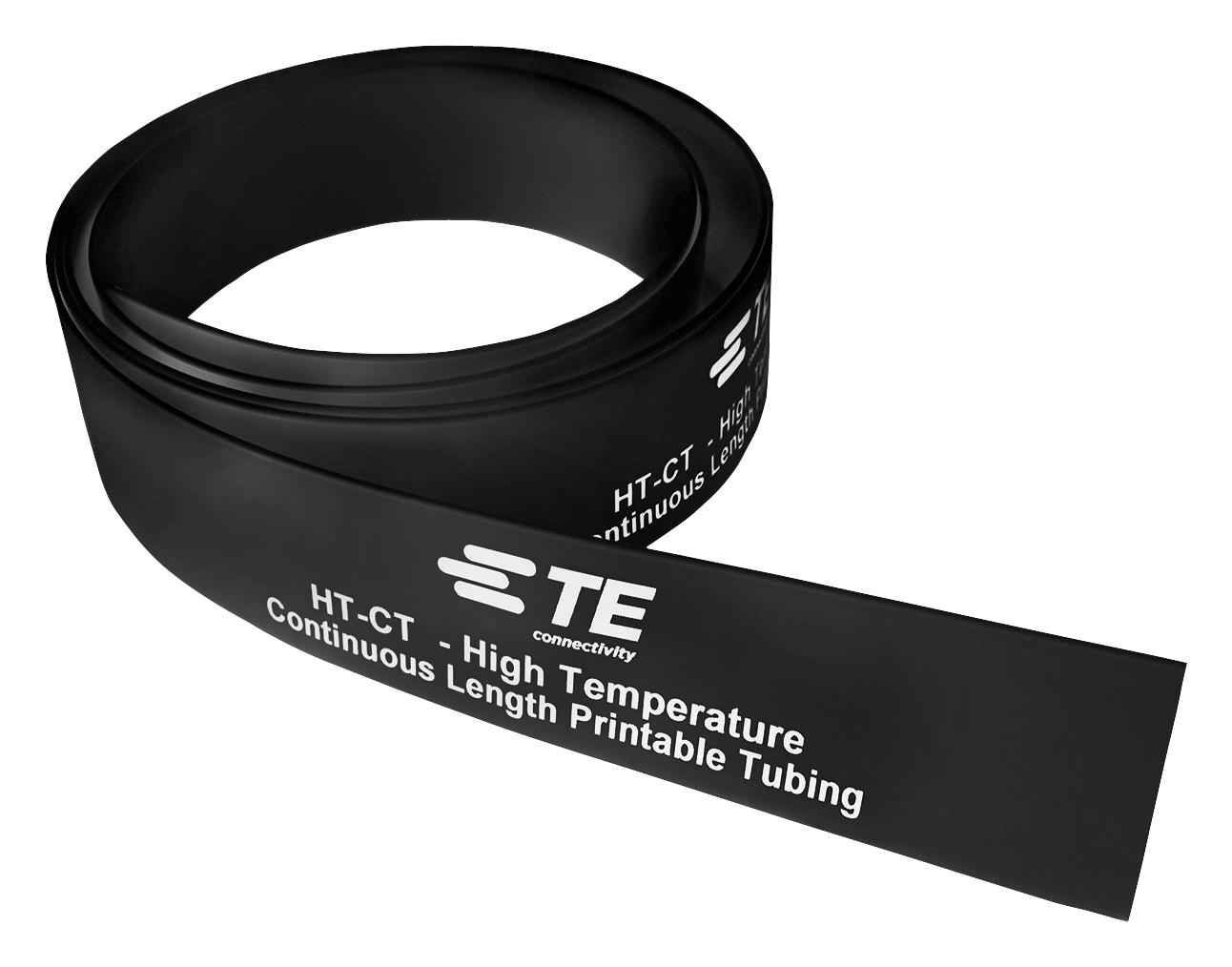

Raychem TE Connectivity HTCT50M12OUT0 High Temperature Identification Tube
High temperature continuous tube is a heat shrink identification system designed for wire and cable marking in demanding environments. Manufactured from radiation cross-linked material, it withstands temperatures up to 225°C (437°F) and offers excellent chemical resistance, flame retardancy, and compliance with RoHS and REACH regulations. The thin-walled tube shrinks 2:1 with e-beam technology, ensuring printed text remains intact and firmly attached to wires. Ideal for aerospace, military, rail, and industrial applications requiring durable, high-temperature wire identification solutions.
Raychem TE Connectivity HTCT50M12OUT0 High Temperature Identification Tube Specifications:
- Operating Temperature Range: -67°F to 437°F (-55°C to 225°C)
- Shrink Ratio: 2:1 (3/32 to 1-1/2 inch diameters)
- Sleeve Diameters: from 3/32 inch (2.4 mm) to 1-1/2 inch (38.1 mm)
- Material: Radiation cross-linked, flame-retardant
- Chemical Resistance: Excellent resistance against industrial fluids and solvents
- Flame Rating: UL VW-1 rated, self-extinguishing
- RoHS and REACH compliant, free from prohibited substances
- Print performance: High-quality, durable printing for wire and cable marking
- Application: Suitable for military, aerospace, rail, industrial environments
- Alignment with standards: MIL 202J, EN45545-2, NFPA 130, FRA, and Japan Railway requirements
Buy the Buy TE Connectivity HT-CT Part Number HTCT50M12OUT0 Online
Experience the unmatched reliability and durability of TE Connectivity High Temperature Identification Tube designed for wire and cable marking in aerospace, military, and industrial applications. This heat shrink sleeve withstands temperatures up to 225°C, offers excellent chemical and flame resistance, and ensures printed text remains secure after shrinking. Its 2:1 shrink ratio and wide diameter range make it versatile for various wire sizes. Purchase online today to benefit from high-quality, compliant wire identification solutions that meet stringent industry standards.
Buy TE Connectivity high temperature continuous tube HT-CT now and ensure reliable wire and cable identification in demanding environments with durable, flame-retardant shrink sleeves.
