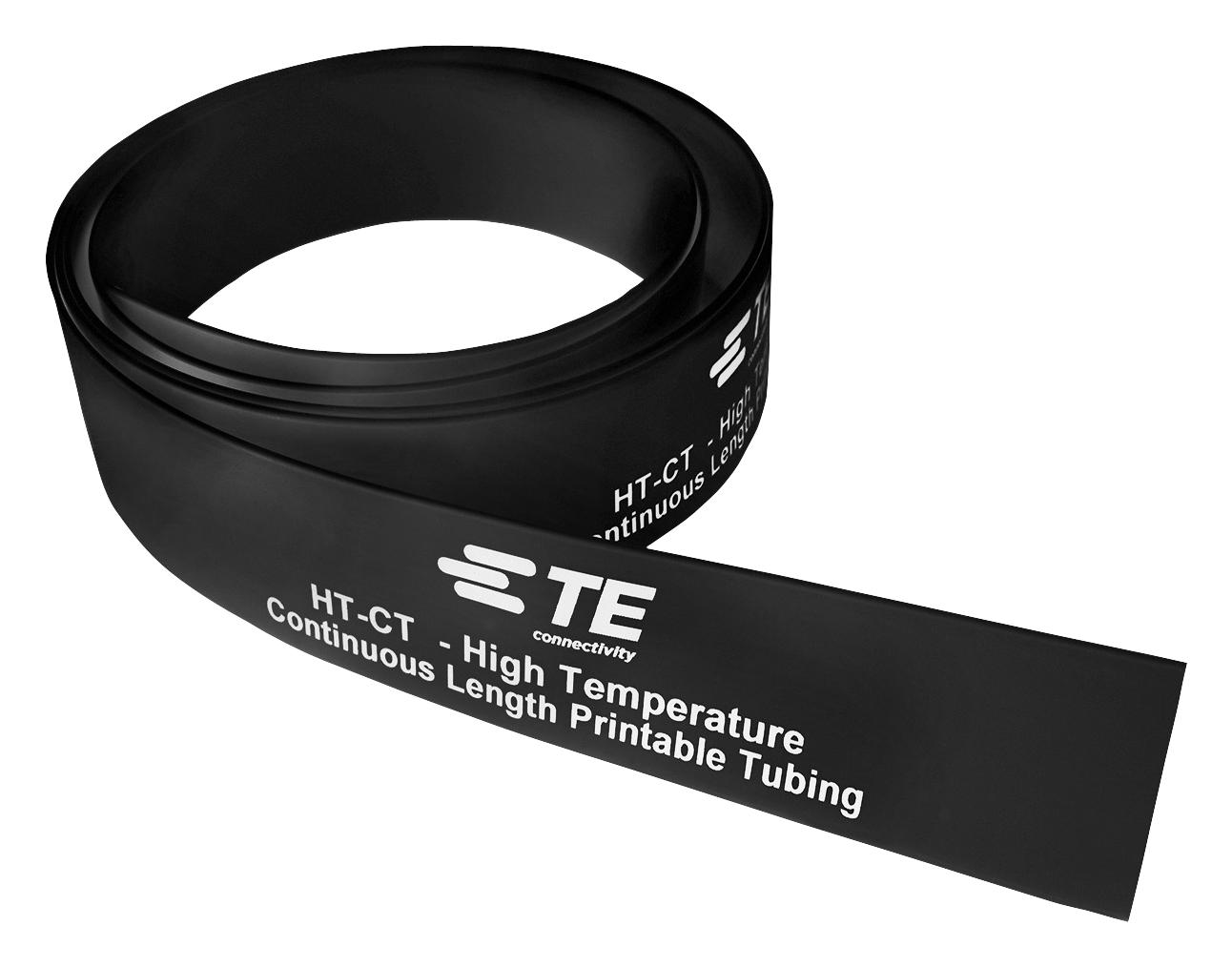

Raychem TE Connectivity HTCT50M332OUT0 High Temperature Heat Shrink Tube
High Temperature continuous tubing designed for wire and cable identification in demanding environments up to 225°C (437°F). Manufactured using radiation cross-linked material with low out-gassing, this heat shrink sleeve offers excellent chemical resistance, flame retardance, and UL VW-1 rating. The thin-walled, heat shrinkable tube provides a secure hold on printed markers, ensuring durability and clarity in aerospace, military, rail, and industrial applications. It is compliant with RoHS II and REACH regulations, available in multiple colors and sizes for versatile use.
Raychem TE Connectivity HTCT50M332OUT0 High Temperature Heat Shrink Tube Specifications:
- Operating Temperature Range: 55°C to 225°C (-67°F to 437°F)
- Shrink Ratio: 2:1 (for sizes 3/32 to 1-1/2 inch)
- Sleeve Diameters: from 3/32 inch (0.094 inch) to 1-1/2 inch (1.50 inch)
- Spool Lengths: 50 meters (164 feet) for all sizes
- Material: Radiation cross-linked high-temperature polymer
- Flame Rating: UL VW-1 rated, self-extinguishing
- Chemical Resistance: Excellent to key aerospace, military, rail, and industrial fluids
- Compliance: RoHS II, REACH, MIL 202J Method 215K, EN45545-2, NFPA 130, DOT Appendix B, Japan Railway Standards
- Color Options: Yellow (standard), White, Brown, Red, Orange, Green, Blue, Violet, Grey, Black
- Printer Compatibility: Specific thermal transfer ribbons recommended for optimal print performance
Buy the TE Connectivity Series HT-CT High Temperature Identification Sleeve: HTCT50M332OUT0
Order TE Connectivity high temperature heat shrink tubing online today to ensure durable wire and cable identification in your harsh environment applications. This advanced sleeve withstands temperatures up to 225°C, offers excellent chemical and flame resistance, and is UL VW-1 rated for safety. Available in multiple sizes and colors, it ensures high-quality print adherence and a secure fit for aerospace, military, rail, and industrial wire marking. Purchase now for reliable performance, easy application, and compliance with global safety standards.
Get TE Connectivity HT-CT high temperature heat shrink tubing today—designed for durability, chemical resistance, and perfect for demanding industrial and aerospace applications.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity HTCT50M332OUT0?
You can click on the BUY or RFQ button to purchase HTCT50M332OUT0 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part HTCT50M332OUT0?
You can download the HTCT50M332OUT0 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of HTCT50M332OUT0?
Raychem TE Connectivity
