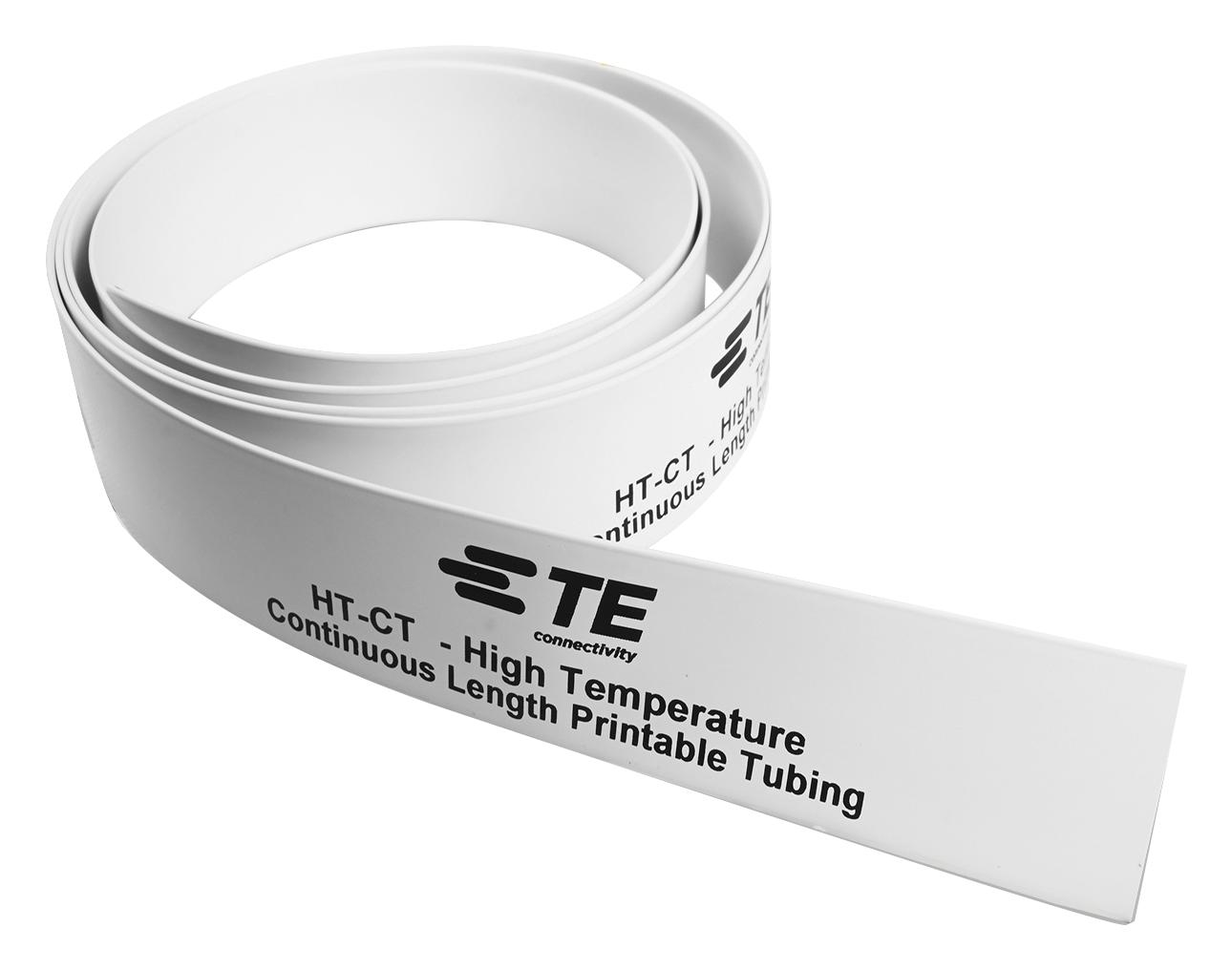

Raychem TE Connectivity HTCT50M38OUT9 Heat Shrink Marker Sleeve
The HT-CT series is a high-temperature, flame-retardant heat shrink tube designed for wire and cable identification in aerospace, military, rail, and industrial applications. Made from radiation cross-linked fluoropolymer, it withstands up to 225°C and provides excellent chemical and solvent resistance. The thin-walled, open-profile sleeve features a 2:1 shrink ratio, ensuring a firm hold on wires after shrinking. Supplied on a 50-meter spool, it is compatible with specific printers and ribbons, offering reliable performance in demanding environments with low out-gassing requirements.
Raychem TE Connectivity HTCT50M38OUT9 Heat Shrink Marker Sleeve Specifications:
- Material: Radiation cross-linked fluoropolymer
- Flammability: UL VW-1 rated, flame retarded, self extinguishing
- Operating Temperature Range: -55°C to +225°C (-67°F to 437°F)
- Shrink Ratio: 2:1
- Sleeve Diameter: from 3/32 inch (3.2 mm) to 1-1/2 inch (38.1 mm)
- Spool Length: 50 meters (164 feet)
- Color Options: Standard yellow, white; other colors on request
- Resistant to aerospace, military, rail, and industrial fluids
- Compliance: RoHS II, REACH, MIL 202J, EN45545-2, NFPA 130, DOT, Japan Railway standards
- Recommended for wire diameters: 0.031 to 0.075 inches (for 3/32 inch sleeve) and others as per size
Buy the TE Connectivity HT-CT – Reliable Heat Shrink Identification for Industrial Applications
Enhance your wire and cable identification with the TE Connectivity HT-CT series, designed for high-temperature and chemically resistant environments. This flame-retardant, UL VW-1 rated heat shrink tubing provides a secure, long-lasting marker solution for aerospace, military, rail, and industrial applications. With a 2:1 shrink ratio, open profile, and compatibility with specific printers and ribbons, it ensures easy application and clear markings under extreme conditions. Available in various colors and supplied on a 50-meter spool, order online now for reliable, high-performance wire marking in demanding environments.
Order your TE Connectivity HT-CT high-temperature marker sleeve today and ensure your wiring projects withstand extreme conditions with dependable identification.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity HTCT50M38OUT9?
You can click on the BUY or RFQ button to purchase HTCT50M38OUT9 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part HTCT50M38OUT9?
You can download the HTCT50M38OUT9 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of HTCT50M38OUT9?
Raychem TE Connectivity
