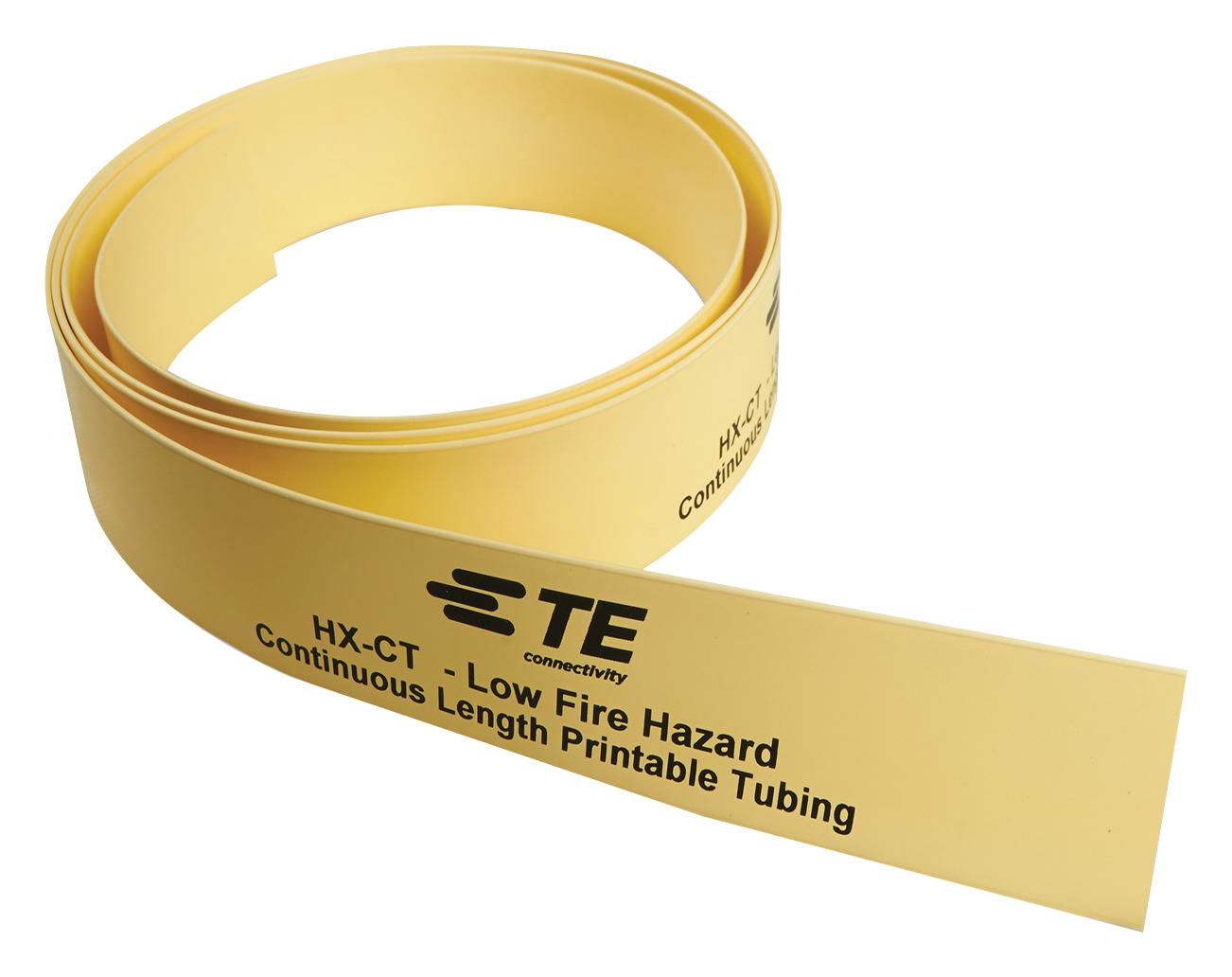

Raychem TE Connectivity HXCT40M254OUT9 Wire Marker Sleeve
The HX-CT series is a heat-shrinkable wire marker designed for high safety standards. Made from a radiation cross-linked low fire hazard material, it features zero halogen, low toxic fumes, and low smoke emission, suitable for environments demanding fire safety. It is self-extinguishing, non-flame propagating, with an excellent resistance to burning (LOI 39%). The markers resist key rail and industrial fluids, operate within -55°C to +105°C, and provide a 2:1 shrink ratio with an open profile for easy application. The spool contains 40 meters (131 feet) of continuous marking tube for wire and cable identification.
Raychem TE Connectivity HXCT40M254OUT9 Wire Marker Sleeve Specifications:
- Material: radiation cross-linked low fire hazard polymer
- Flammability: self-extinguishing, non-flame propagating
- Fire Safety: meets EN45545-2 Fire Hazard Classification 3
- LOI: 39%
- Shrink Ratio: 2:1
- Operating Temperature Range: -55°C to +105°C
- Application Temperature: -67°F to 221°F
- Color: standard yellow, white, others available on request
- Length: 40 meters (131 feet) spool, part number HXCT40M254OUT9
- Recommended Cable Diameter: 1.27 mm to 33.0 mm depending on size
- Resistance: key rail and industrial fluids, solvents
- Compliance: EN45545-2, BS 6853, NF F 16-101, JIS
- Use: wire and cable identification in railway and industrial environments
Buy the TE Connectivity HXCT40M254OUT9 – Reliable Wire Marker Sleeve for Industrial Environments
Order TE Connectivity HX-CT wire marker sleeves online today and ensure safe, reliable identification of wires and cables. Designed with low fire hazard materials, these heat-shrink tubes provide excellent resistance to industrial fluids and high temperatures, making them ideal for railway and industrial environments. With a 2:1 shrink ratio and easy-to-use open profile, they ensure a firm hold on wires while meeting strict fire safety standards like EN45545-2. Available in various sizes and colors, they are perfect for durable and compliant cable marking.
Get TE Connectivity HX-CT today—built for safety, durability, and easy installation in industrial wiring systems.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity HXCT40M254OUT9?
You can click on the BUY or RFQ button to purchase HXCT40M254OUT9 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part HXCT40M254OUT9?
You can download the HXCT40M254OUT9 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of HXCT40M254OUT9?
Raychem TE Connectivity
