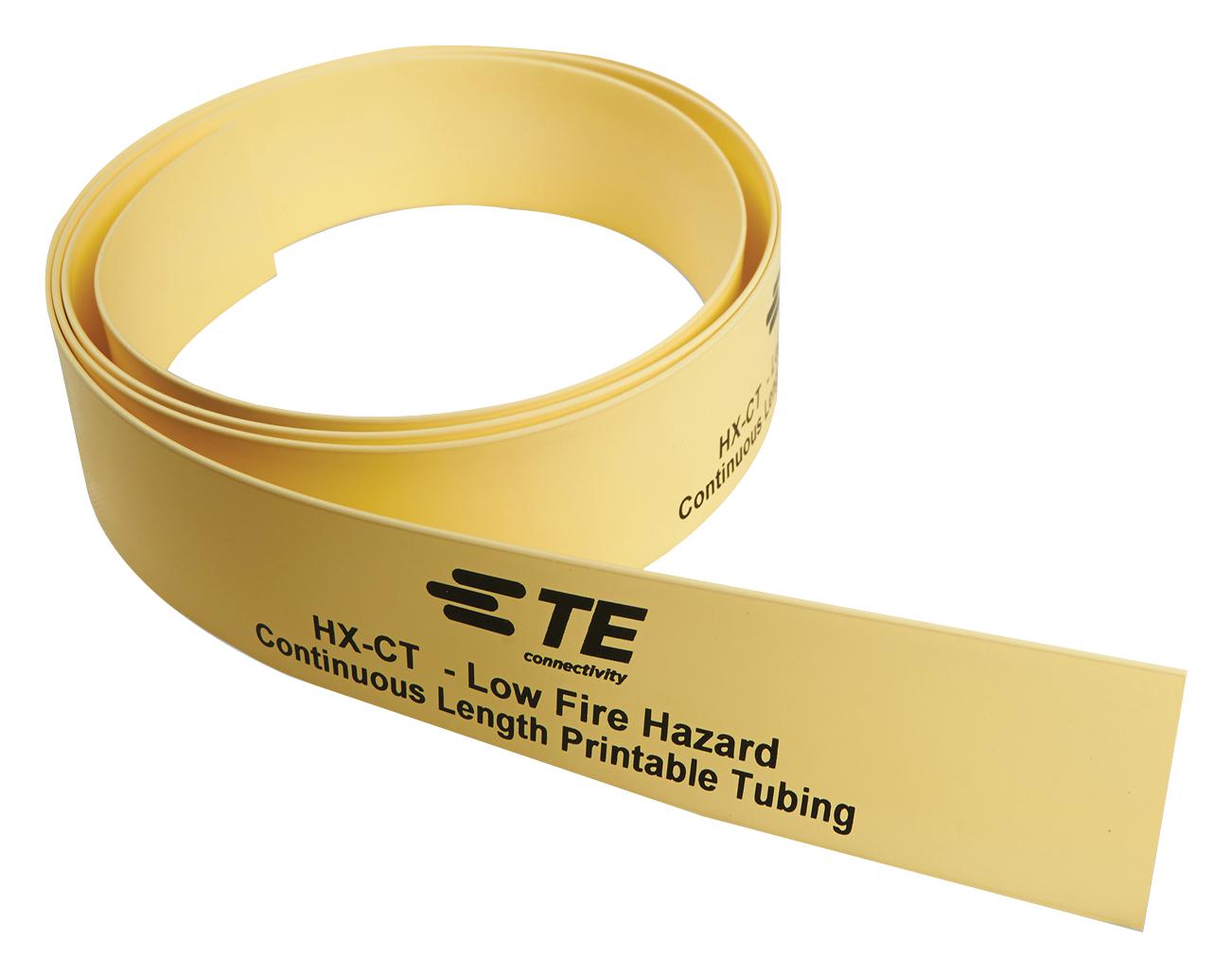

Raychem TE Connectivity HXCT40M381OUT4 Heat Shrink Marker
The HX-CT series is a heat-shrinkable wire marker designed for safety and durability. It features zero halogen, low toxic fumes, and low smoke emissions, making it suitable for use in areas where fire safety is critical. The material is self-extinguishing, non-flame propagating, and exhibits excellent resistance to combustion with a typical Limiting Oxygen Index (LOI) of 39%. It is resistant to key rail and industrial fluids as specified by TE standard RW-2072. The marker provides a 2:1 shrink ratio and a more open profile for easier application. Operating temperature ranges from -55°C to +105°C. The spool, which fits outside a printer, contains 40 meters of wire marker.
Raychem TE Connectivity HXCT40M381OUT4 Heat Shrink Marker Specifications:
- Material: Radiation cross-linked, zero halogen, self-extinguishing
- Shrink ratio: 2:1
- Operating temperature: -55°C to +105°C (-67°F to 221°F)
- Applicable standards: EN45545-2 Fire Hazard Classification 3, BS 6853, NF F 16-101
- Flammability: UL 94V-0, LOI 39%
- Resistant to: Key rail and industrial fluids as per UNIFE Railway Industry Substance List
- Spool length: 40 meters (131 feet)
- Inside diameter: Ranges from 1.2 mm to 38.1 mm, corresponding to various spool options
- Color options: Yellow, White, Brown, Red, Orange, Green, Blue, Violet, Grey, Black
- Temperature resistance: -55°C to +105°C
Buy the TE Connectivity HXCT40M381OUT4 – Reliable Heat Shrink Identification System for Industrial Applications
Purchase the TE Connectivity Heat Shrink Marker HXCT40M381OUT4 online today to ensure safety, durability, and compliance for your industrial wiring projects. Designed with advanced radiation cross-linked material, this low fire hazard identification system provides excellent chemical and flame resistance, making it ideal for railway and industrial environments. Its 2:1 shrink ratio allows for easy installation on various cable sizes. Featuring a broad color selection and operational temperature range from -55°C to +105°C, this wire marker is the perfect solution for safe and reliable cable management in safety-critical applications. Order now for fast delivery and professional results.
Order your TE Connectivity HXCT40M381OUT4 today and enhance your wire and cable identification with durable, fire-safe heat shrink markers.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity HXCT40M381OUT4?
You can click on the BUY or RFQ button to purchase HXCT40M381OUT4 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part HXCT40M381OUT4?
You can download the HXCT40M381OUT4 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of HXCT40M381OUT4?
Raychem TE Connectivity
