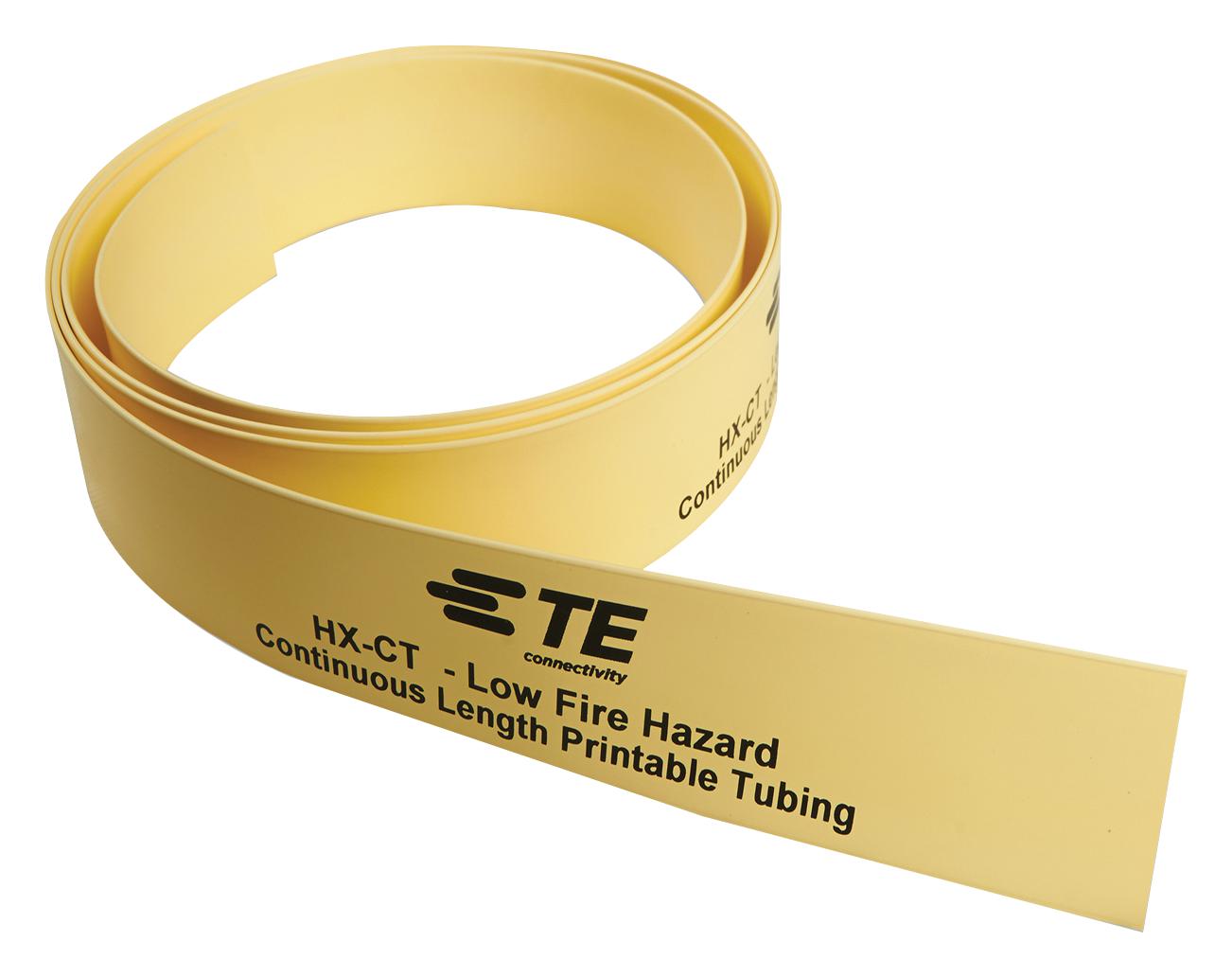

Raychem TE Connectivity HXCT40M381OUT9 Heat Shrink Marker Tape
The HX-CT series is a heat-shrinkable wire marker tape designed to provide low fire hazard properties. It is zero halogen, produces low toxic fumes and smoke, and is self-extinguishing with non-flame propagating characteristics. The material exhibits excellent resistance to burning, with a typical Limiting Oxygen Index (LOI) of 39%, and is resistant to key rail and industrial fluids as specified by TE standard RW-2072. It offers a 2:1 shrink ratio, has a more open profile for easier application, and operates effectively within a temperature range of -55°C to +105°C. The spool is compatible with outside printers, measuring 40 meters in length.
Raychem TE Connectivity HXCT40M381OUT9 Heat Shrink Marker Tape Specifications:
- Shrink Ratio: 2:1
- Temperature Range: -55°C to +105°C
- Flammability: Self-extinguishing, non-flame propagating
- LOI (Limiting Oxygen Index): 39%
- Material: Radiation cross-linked, zero halogen, low smoke and toxic fumes
- Resistance: Key rail and industrial fluids as per TE standard RW-2072
- Spool Length: 40 meters (131 feet)
- Inside Diameter (Minimum): 2.4mm (~0.094 inch), 3.2mm (~0.125 inch), 4.8mm (~0.189 inch), 6.4mm (~0.250 inch), 9.5mm (~0.375 inch), 12.7mm (~0.500 inch), 19.0mm (~0.75 inch), 25.4mm (~1.00 inch), 38.1mm (~1.50 inch)
- Colors Available: Yellow, White, Brown, Red, Orange, Green, Blue, Violet, Grey, Black
- Compliance: EN45545-2 Fire hazard classification 3, BS 6853 Vehicle Category 1a, London Underground approval, NF F 16-101, Japan Railway standards
Buy the TE Connectivity HX-CT – Reliable Low Fire Hazard Identification System for Industrial Applications
Secure your wiring and cables with TE Connectivity's HX-CT low fire hazard heat shrink marker tape, offering flame resistance, chemical durability, and easy application for industrial and rail applications. Manufactured with radiation cross-linked, zero halogen material, it provides reliable performance in extreme temperatures from -55°C to +105°C. This 40-meter spool is compatible with specific printers and supplies excellent print performance, ensuring clear identification while adhering to strict fire safety standards. Ideal for rail, industrial, and safety-critical wiring environments.
Buy TE Connectivity HX-CT heat shrink tubing now and ensure high safety standards with flame-retardant, industrial-grade wire markers.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity HXCT40M381OUT9?
You can click on the BUY or RFQ button to purchase HXCT40M381OUT9 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part HXCT40M381OUT9?
You can download the HXCT40M381OUT9 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of HXCT40M381OUT9?
Raychem TE Connectivity
