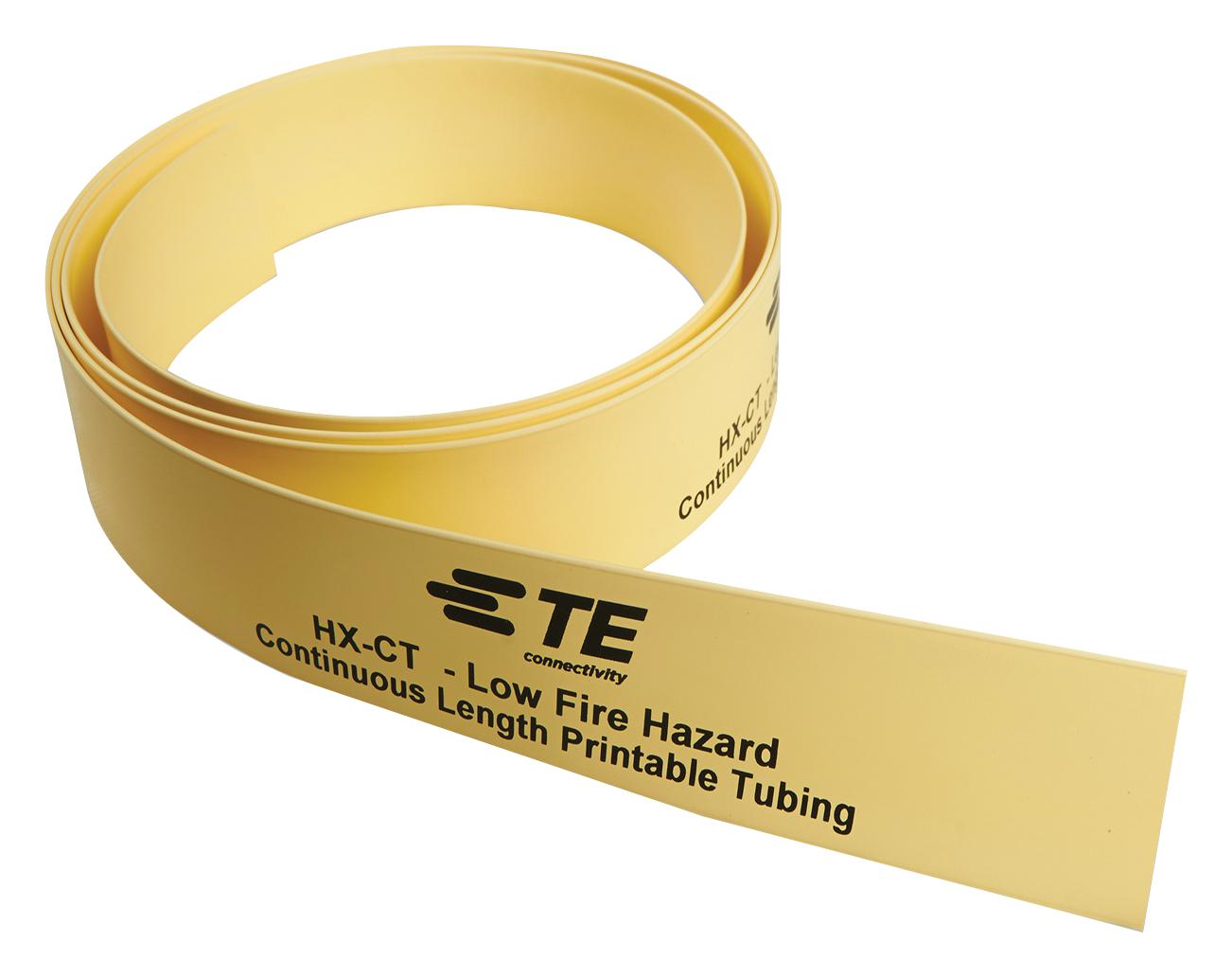

Raychem TE Connectivity HXCT50M127OUT9 Wire Marker
The HX-CT series is a heat shrinkable wire marker characterized by its low fire hazard properties, making it suitable for use in environments where fire safety is critical. It is zero halogen, produces low toxic fumes and smoke, and is self-extinguishing with non-flame propagating qualities. The material exhibits excellent resistance to burning, with a typical Limiting Oxygen Index (LOI) of 39%. It is resistant to key rail and industrial fluids, as specified by TE standard RW-2072. The wire marker features a 2:1 shrink ratio and an open profile for easy application. Operating temperature range is from -55°C to +105°C. The spool accommodates outside printing and has a length of 50 meters (164 feet).
Raychem TE Connectivity HXCT50M127OUT9 Wire Marker Specifications:
- Material: Radiation cross-linked, zero halogen, self-extinguishing
- Flammability: UL 94V-0 compliant
- LOI (Limiting Oxygen Index): 39%
- Shrink Ratio: 2:1
- Temperature Range: -55°C to +105°C
- Sleeve Length: 50 meters (164 feet)
- Inside Diameter: varies by spool size, minimum 2.4mm (3/32 inch), maximum 38.1mm (1.50 inch)
- Application: Wire and cable marker identification
- Resistance: Key rail and industrial fluids, solvents
- Fire Safety Standards: EN45545-2 Class 3, BS 6853 Vehicle Category 1a, London Underground, NF F 16-101, Japanese Railway standards,
Buy the TE Connectivity Series LFH Wire Marker: HXCT50M127OUT9
Purchase the TE Connectivity wire marker with 50 meters spool, designed for enhanced safety with low fire hazard properties. This heat shrink tube features a 2:1 ratio, excellent flame resistance, and high durability to withstand industrial and rail applications. Its operating temperature from -55°C to +105°C makes it ideal for various environments. Compatible with specific printers and ribbons, it ensures clear, long-lasting markings, improving safety and compliance. Buy online now for reliable, high-performance wire identification in your critical projects.
Order your TE Connectivity Series HXCT50M127OUT9 heat shrink wire marker today and ensure fire-safe cable identification in demanding environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity HXCT50M127OUT9?
You can click on the BUY or RFQ button to purchase HXCT50M127OUT9 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part HXCT50M127OUT9?
You can download the HXCT50M127OUT9 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of HXCT50M127OUT9?
Raychem TE Connectivity
