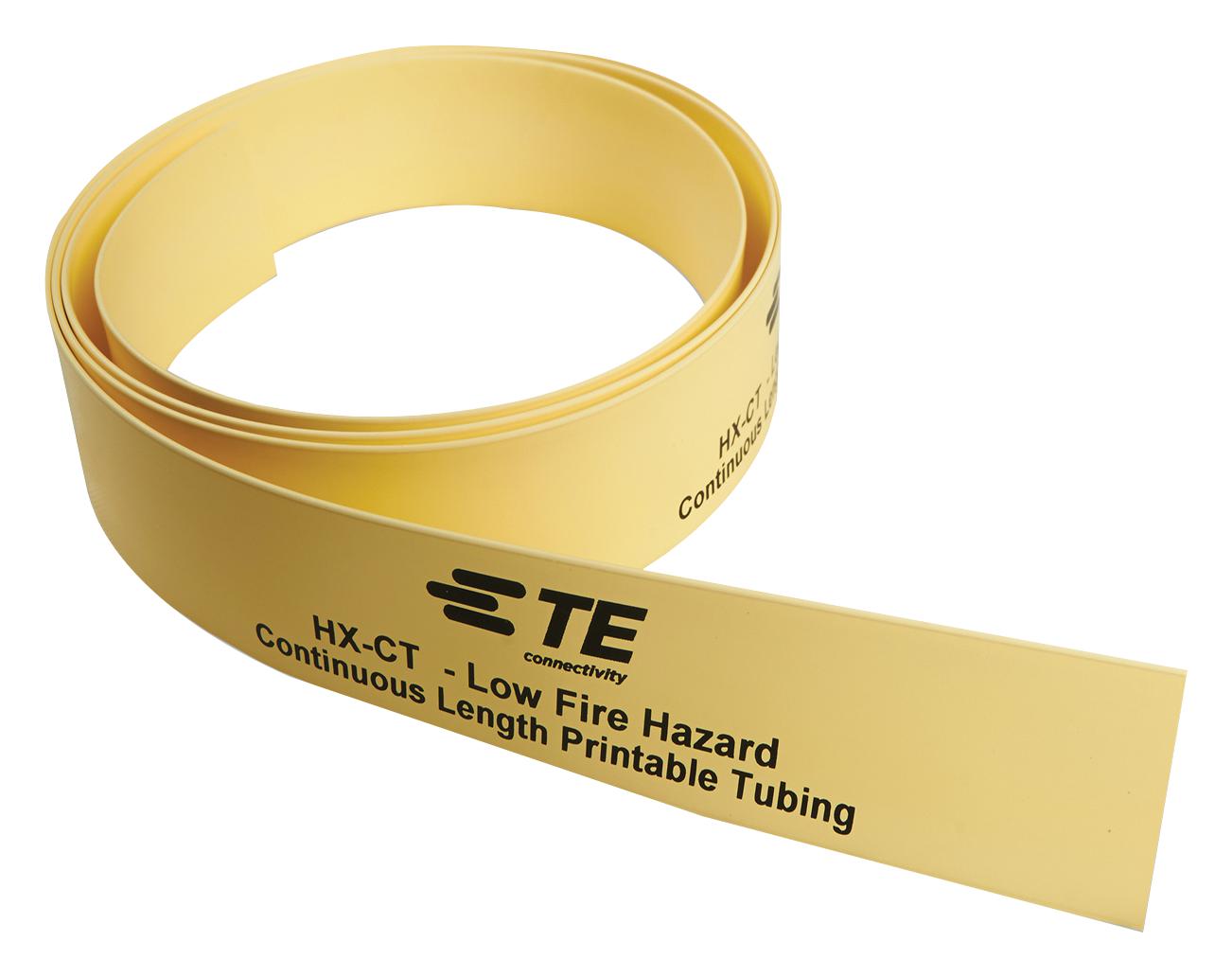

Raychem TE Connectivity HXCT50M190OUT9 Heat Shrink Wire Marker
The HX-CT series is a heat shrinkable wire marker designed to provide low fire hazard properties, making it suitable for use in environments where fire safety is a concern. It is zero halogen, produces low toxic fumes and smoke, and is self-extinguishing with non-flame propagating characteristics. The material exhibits excellent resistance to burning, with a typical Limiting Oxygen Index (LOI) of 39%, and is resistant to key rail and industrial fluids as specified by TE standard RW-2072. Featuring a 2:1 shrink ratio and a more open profile for easier application, it operates effectively within a temperature range of -55°C to +105°C. The spool is compatible with outside printer feeds and comes in a length of 50 meters (164 feet).
Raychem TE Connectivity HXCT50M190OUT9 Heat Shrink Wire Marker Specifications:
- Material: Radiation cross-linked, low fire hazard polymer
- Shrink Ratio: 2:1
- Operating Temperature Range: -55°C to +105°C
- Flammability: Self-extinguishing, non-flame propagating
- LOI: 39%
- Resistant to: Rail and industrial fluids as per TE RW-2072
- Spool Length: 50 meters (164 feet)
- Inside Diameter Options: from 2.4mm to 38.1mm (3/32 to 1-1/2 inch)
- Color: Standard Yellow, White, other colors available on request
- Recommended printer ribbons: 60mm or 100mm widths
- Compliance: EN45545-2 Fire Hazard Classification 3, RoHS II, REACH
- Shrink profile: Open for easier cable application
- Temperature Resistance: Up to 105°C
Buy the TE Connectivity Series LFH HX-CT: HXCT50M190OUT9
Purchase the TE Connectivity LFH HX-CT heat shrink wire marker online today to secure your cable identification with low fire hazard, flame-resistant caps. Designed for rail and industrial applications, this 50-meter spool features a 2:1 shrink ratio and can withstand temperatures up to 105°C. Its radiation cross-linked material ensures safety compliance and resistance to industrial fluids. The open profile allows easy application, and the product comes in multiple colors, with recommended ribbons available for optimal printing performance. Reliable, safe, and easy to implement—order now for your wiring projects.
Order your TE Connectivity Series LFH HX-CT 50-meter heat shrink wire marker today and ensure your cables meet fire safety standards with reliable, flame-retardant protection.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity HXCT50M190OUT9?
You can click on the BUY or RFQ button to purchase HXCT50M190OUT9 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part HXCT50M190OUT9?
You can download the HXCT50M190OUT9 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of HXCT50M190OUT9?
Raychem TE Connectivity
