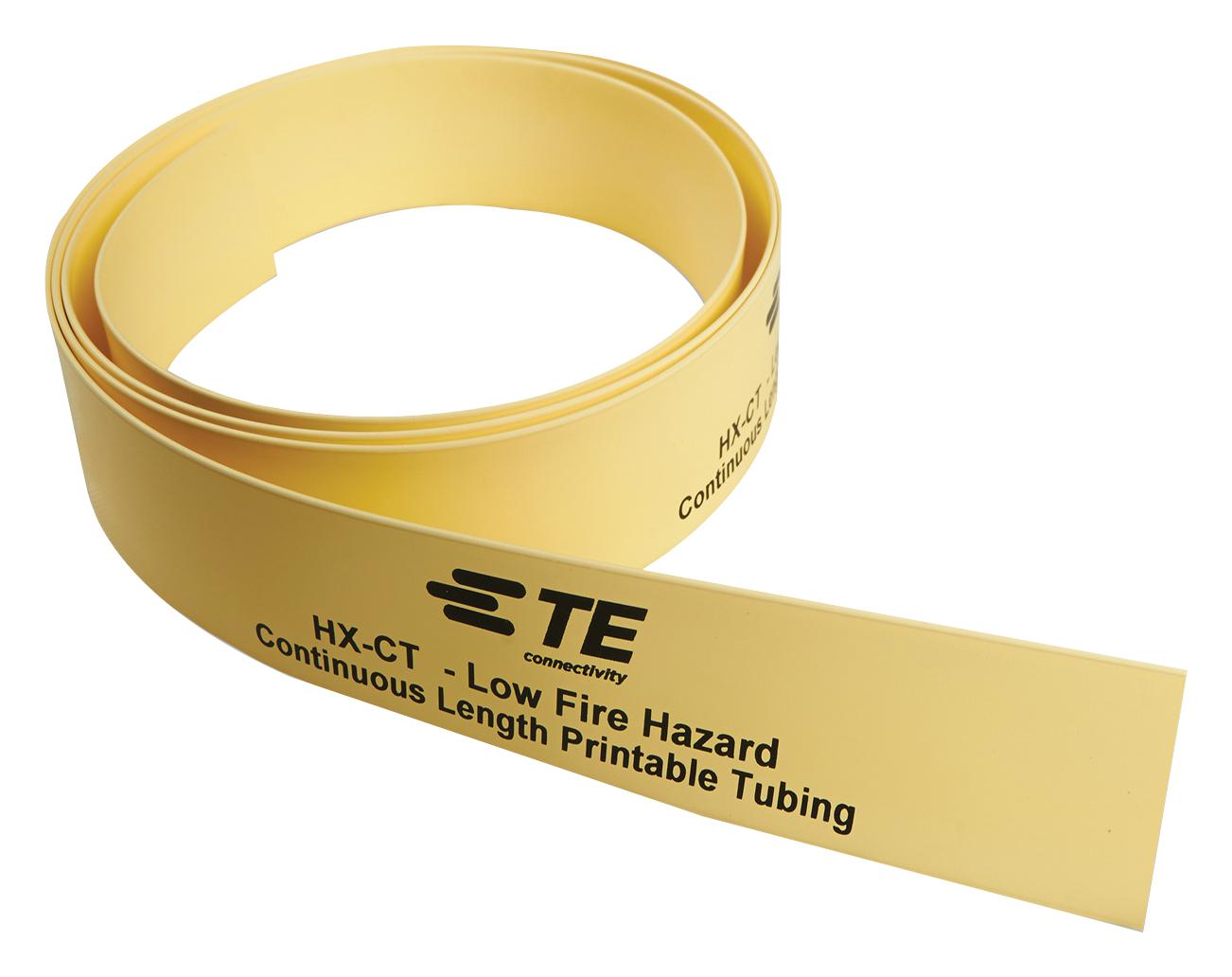

Raychem TE Connectivity HXCT50M32OUT4 Heat Shrink Marker Tape
The HX-CT series is a heat shrinkable wire marker designed for safe and reliable identification of wires and cables. It features low fire hazard properties, being zero halogen, with low toxic fumes and low smoke emissions. The material is self-extinguishing and non-flame propagating, providing excellent resistance to burning with a typical Limiting Oxygen Index (LOI) of 39%. It is resistant to key rail and industrial fluids as per TE specification RW-2072. The product offers a 2:1 shrink ratio, an open profile for easier application, and operates within a temperature range of -55°C to +105°C. The spool, which contains 50 meters (164 feet) of marker tape, is compatible with outside printers.
Raychem TE Connectivity HXCT50M32OUT4 Heat Shrink Marker Tape Specifications:
- Shrink Ratio: 2:1
- Temperature Range: -55°C to +105°C
- Material: Radiation cross-linked, zero halogen
- Flammability: Self-extinguishing, non-flame propagating
- LOI: 39%
- Resistant to key rail and industrial fluids
- Spool Length: 50 meters (164 feet)
- Color: Standard Yellow, White, and other colors on request
- Outside Diameter: 2.4mm to 38.1mm (3/32 inch to 1-1/2 inch)
- Recommended Cable Diameter Use Range: 1.27 mm to 33.0 mm
- Operating Temperature: -55°C to +105°C
- Compliance: EN45545-2 Fire Hazard Classification 3, BS 6853 Vehicle Category 1a
Buy the Buy TE Connectivity HX-CT Part Number HXCT50M32OUT4 Online
Purchase TE Connectivity HX-CT heat shrink wire markers online and ensure reliable wire and cable identification with low fire hazard properties. Made from radiation cross-linked, zero halogen material, these markers comply with industry standards such as EN45545-2 and BS 6853, ensuring safety for rail and industrial applications. Each spool contains 50 meters of high-performance, resistant, easy-to-apply tubing with a 2:1 shrink ratio. Perfect for professional use, these markers provide excellent adhesion, flame retardance, and chemical resistance, making installation efficient and durable for long-term use.
Get TE Connectivity HX-CT low fire hazard heat shrink markers today—designed for safe wire identification with excellent flame resistance, ideal for railway and industrial use.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity HXCT50M32OUT4?
You can click on the BUY or RFQ button to purchase HXCT50M32OUT4 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part HXCT50M32OUT4?
You can download the HXCT50M32OUT4 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of HXCT50M32OUT4?
Raychem TE Connectivity
