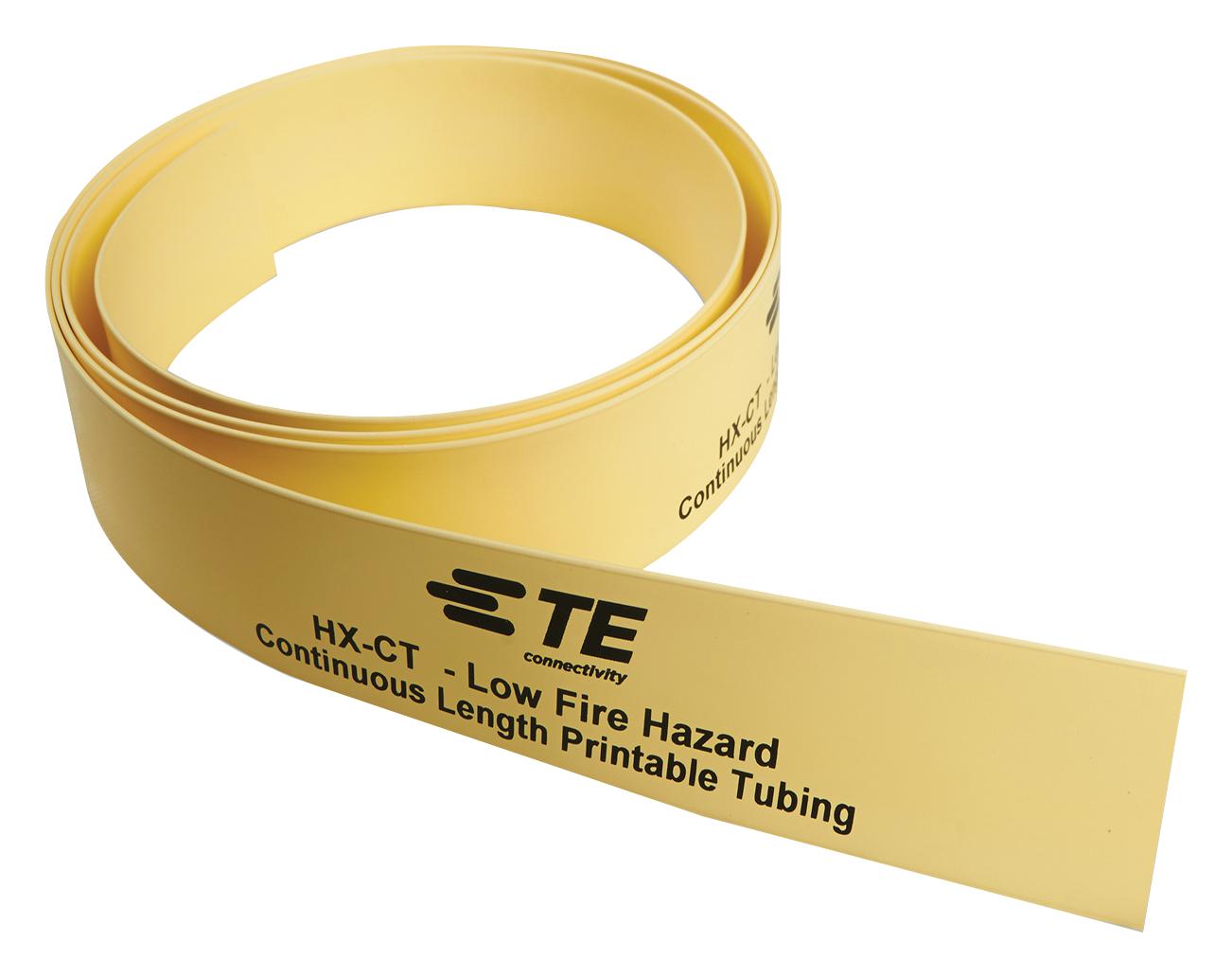

Raychem TE Connectivity HXCT50M48OUT4 Wire Marker
The HX-CT series is a heat shrinkable wire marker designed for safe, low fire hazard identification in electrical applications. It is zero halogen, produces low toxic fumes and smoke, and is self-extinguishing with non-flame propagating properties. The material exhibits excellent resistance to burning, with a typical Limiting Oxygen Index (LOI) of 39%. It is resistant to key rail and industrial fluids as specified by TE (RW-2072). The wire marker features a 2:1 shrink ratio, an open profile for easier application, and operates within a temperature range of -55°C to +105°C. Each spool contains 50 meters (164 feet) of material, compatible with outside printer fittings.
Raychem TE Connectivity HXCT50M48OUT4 Wire Marker Specifications:
- Material: Radiation cross-linked, halogen-free, flame retardant
- Shrink Ratio: 2:1
- Maximum Operating Temperature: 105°C
- Minimum Operating Temperature: -55°C
- Open Profile Design for Ease of Use
- Wire Range: Suitable for 1.27 mm to 38.1 mm (0.050 to 1.5 inch) diameter cables
- Spool Length: 50 meters (164 feet)
- Standard Colors: Yellow, White; other colors available on request
- Resistant to rail and industrial fluids as per TE RW-2072 specifications
- Compliance: EN45545-2 Fire Hazard Classification 3, RoHS II, REACH, BS 6853, NF F 16-101
Buy the TE Connectivity HX-CT 50M – Reliable Low Fire Hazard Identification System for Industrial Applications
Purchase the TE Connectivity wire marker system online today for safe, flame-retardant identification of wires and cables. This heat shrink marker features a 2:1 shrink ratio, operates at temperatures from -55°C to +105°C, and complies with rail safety standards like EN45545-2. Its halogen-free, low smoke, self-extinguishing material ensures safety in critical environments. The spool provides 50 meters of durable, industrial-grade material available in multiple colors, compatible with specific printers and ribbons. Buy now for efficient, reliable cable management and enhanced safety in your projects.
Get TE Connectivity HX-CT 50M today—built for safety, durability, and reliable wire identification in industrial and railway environments.
