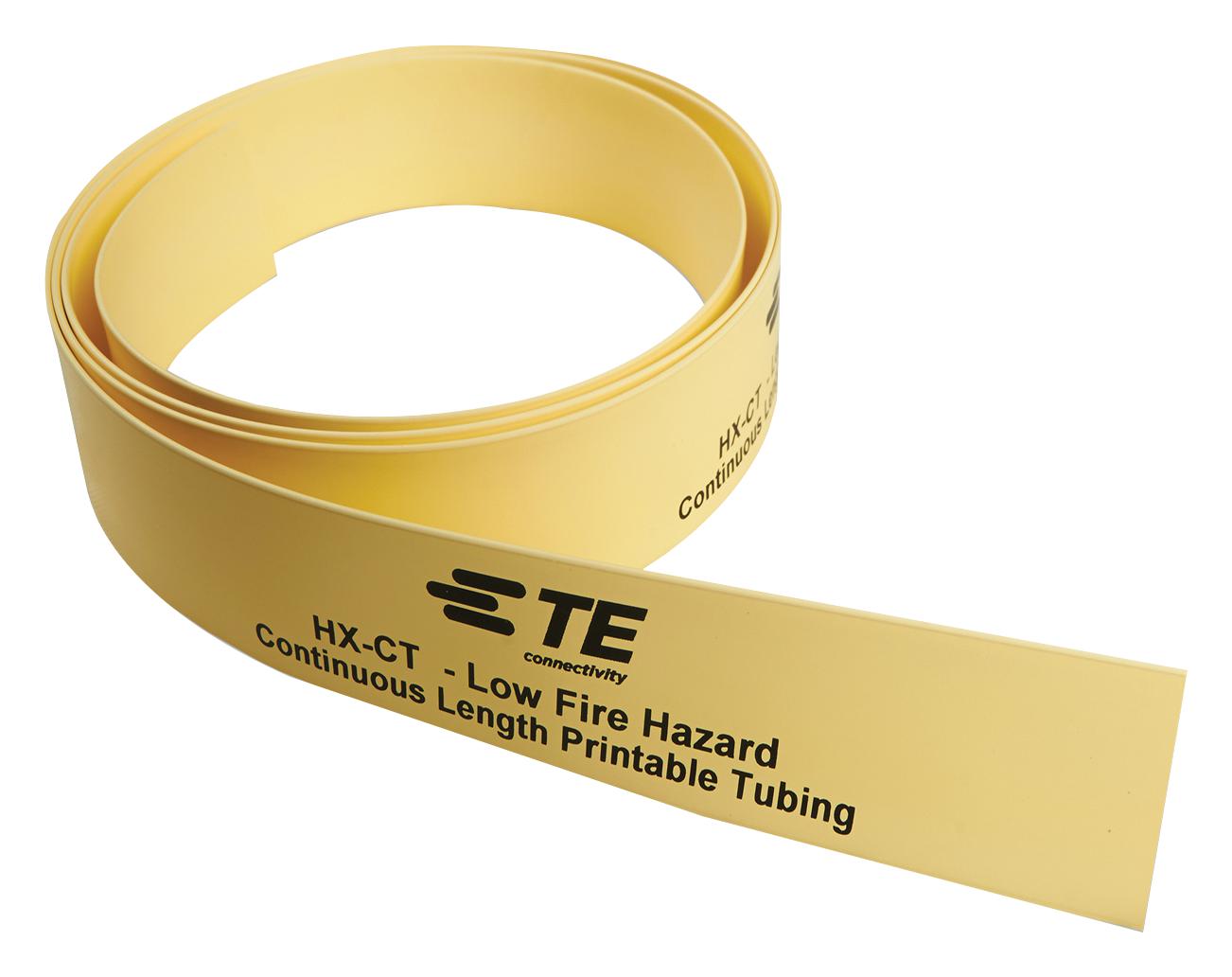

Raychem TE Connectivity HXCT50M64OUT9 Heat Shrink Identification Tube
The HX-CT series is a heat shrinkable wire marker designed to offer low fire hazard properties, making it suitable for use in environments where fire safety is critical. It is zero halogen with low toxic fumes and smoke, and it is self-extinguishing and non-flame propagating. The product exhibits excellent resistance to burning, with a typical Limiting Oxygen Index (LOI) of 39%. It is resistant to key rail and industrial fluids as specified by TE standard RW-2072. The marker features a 2:1 shrink ratio and an open profile for easier application. Its operating temperature range is from -55°C to +105°C. The spool is compatible with outside printer feeds, is 50 meters (164 feet) long, and the part number is HXCT50M64OUT9.
Raychem TE Connectivity HXCT50M64OUT9 Heat Shrink Identification Tube Specifications:
- Material: Radiation cross-linked, flame-retardant, zero halogen
- Shrink Ratio: 2:1
- Operating Temperature Range: -55°C to +105°C
- Length: 50 meters (164 feet)
- Inner Diameter: 2.4mm to 38.1mm (based on spool option)
- Color Options: Yellow, White, Red, Orange, Green, Blue, Violet, Grey, Black, Brown
- Resistance: LOI 39%, resistant to rail and industrial fluids
- Compliance: EN45545-2 Fire Hazard Classification 3, RoHS II, REACH
- Application: Wire and cable identification in rail and industrial environments
Buy the TE Connectivity HXCT – Reliable Identification System for Industrial Applications
Secure reliable wire identification with the HX-CT low fire hazard heat shrink tube. Manufactured with flame-retardant, zero halogen materials, it offers excellent heat resistance and chemical resistance. Ideal for railway and industrial applications, its 2:1 shrink ratio ensures a firm hold on wires, even in demanding conditions. Available in standard and custom colors, the tubing complies with EN45545-2 fire safety standards, making it perfect for safety-critical environments. Purchase online now for quick delivery and hassle-free installation.
Order your TE Connectivity Series HXCT low fire hazard heat shrink tubing today and enhance the safety and reliability of your railway and industrial wiring projects.
