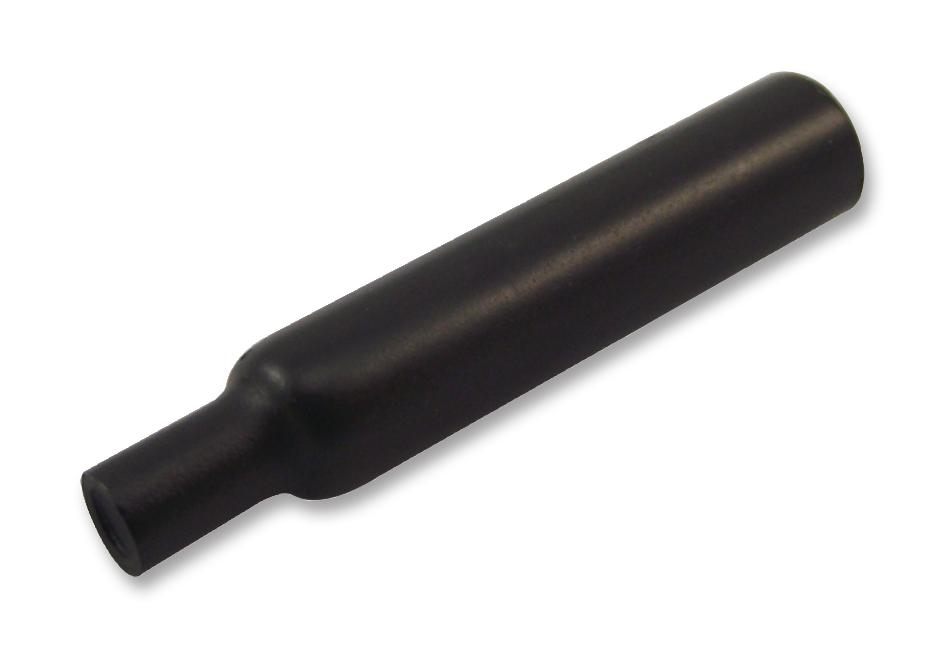

Raychem TE Connectivity PDCAP120 Electrical Encapsulation Cap
Raychem PD Caps are semirigid, encapsulant-lined polyolefin caps designed to protect and insulate electrical connections. These vibration-proof caps offer rapid and simple installation, providing rugged protection against abrasion, vibration, and flexing. They serve as moisture-resistant covers for crimped and terminated wires, motor coils, fixtures, and connectors, ensuring reliable electrical insulation. With an operating temperature range from -55°C to 110°C and a melting point of 125°C, these RoHS-compliant caps are an economical solution for electrical encapsulation in various applications, including motor connections and cable terminations.
Raychem TE Connectivity PDCAP120 Electrical Encapsulation Cap Specifications:
- Shrink Ratio: 3:1
- Operating Temperature Range: -55°C to 110°C
- Minimum Full Recovery Temperature: 135°C [275°F]
- Material: Semirigid polyolefin with encapsulant lining
- Wall Thickness: 0.125 inches (expanded), 0.048 inches (recovered)
- Inside Diameter: 0.50 inches to 0.85 inches (nominal)
- Length: 1.00 inch to 1.50 inches (varies by size)
- Color: Black
- Vibration, abrasion, flex protection
- Moisture-resistant covering, not for immersion applications
- RoHS compliant
- Use: Electrical connection encapsulation, motor coils, crimped wires, fixtures
- Temperature rating: -55°C to 110°C, melts at 125°C
- External dimensions vary with size, suitable for snug fit over components
Buy the Buy RAYCHEM PD Caps Part Number PDCAP120 Online
Secure your electrical connections with RAYCHEM PD Caps, offering rugged, moisture-resistant protection suitable for motor coils, wiring, and fixtures. Designed for quick installation, these caps are ideal for insulating crimped connections, providing vibration-proof shielding, and preventing moisture ingress. Made from durable, RoHS-compliant polyolefin, they withstand high temperatures from -55°C to 110°C. Available in various sizes and black color, these caps ensure a snug fit, reliable insulation, and long-lasting protection, making them a cost-effective choice for electrical wiring and motor applications.
Order your RAYCHEM Series PD Caps PDCAP120 today and provide your electrical connections with reliable vibration and moisture protection.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity PDCAP120?
You can click on the BUY or RFQ button to purchase PDCAP120 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part PDCAP120?
You can download the PDCAP120 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of PDCAP120?
Raychem TE Connectivity
