Raychem TE Connectivity RAY1016010 Tubular shielding braid

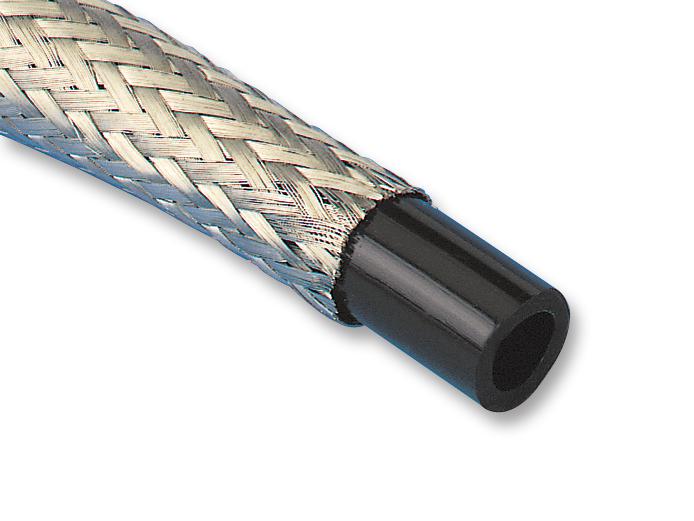

The RayBraid RAY-101-6.0(10) is a tinned copper tubular braiding designed for electrical shielding of wire bundles and military harnesses. It comes supplied on a plastic tube former that simplifies assembly and offers greater durability compared to flattened braid. Fully compatible with Tinel-Lock adaptors for secure termination to connectors, this braid provides a minimum of 93% optical coverage. It is highly flexible with a high expansion ratio, making it suitable for various industrial and power management applications. Note that extended lead times may occur due to market demand, and this product is not eligible for discounts.
Raychem TE Connectivity RAY1016010 Tubular shielding braid Specifications:
- Material: Tinned copper
- Diameter: 6.0 mm
- Optical coverage: Minimum 93%
- Expansion ratio: Minimum 2:1
- Supplied on plastic tube former for easy assembly
- Compatibility: Tinel-Lock adaptors for termination
- Electrical screening for wire bundles and applications requiring high durability
- Maximum bundle diameter: 11.0 mm
- Temperature resistance: Suitable for high-temperature environments
- Finish: Tinned copper (standard), alternative finishes available
- Construction: Tubular braid with high flexibility
- Application: Power management, aerospace, military harnesses, industrial wiring
Buy the Buy Raychem RayBraid Part Number RAY1016010 Online
Purchase the RayBraid tubular shielding braid from Raychem online today for superior electromagnetic interference protection and reliable wire bundle shielding. Designed with high flexibility and a high expansion ratio, this braid ensures easy handling and secure termination with Tinel-Lock adaptors. Its durable tinned copper construction provides excellent conductivity and corrosion resistance. Ideal for military, aerospace, and industrial applications, this braid offers minimum 93% optical coverage, making it an essential component for wire harness assemblies requiring high durability and shielding effectiveness. Order now for swift delivery and superior performance.
Get Raychem RayBraid RAY1016010 today—high-quality flexible shielding braid with high optical coverage for reliable wire harness protection.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity RAY1016010?
You can click on the BUY or RFQ button to purchase RAY1016010 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part RAY1016010?
You can download the RAY1016010 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of RAY1016010?
Raychem TE Connectivity
