Raychem TE Connectivity RHW-24/6-1200/ADH-0 Datasheet & Stock

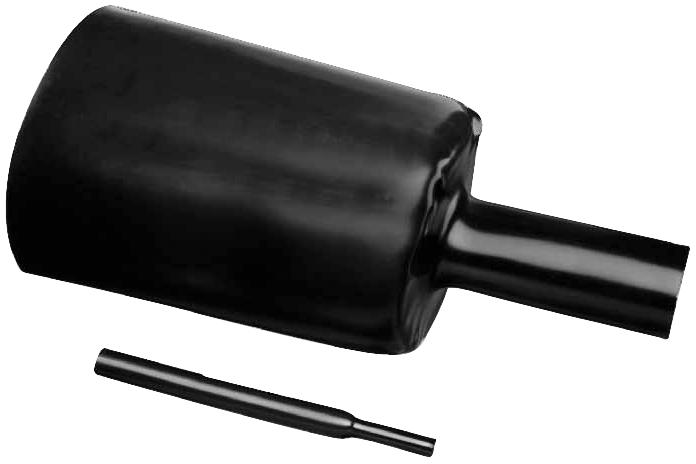

The RHW-24/6-1200/ADH-0 is a black dual-wall Heat Shrink Tubing made of irradiated modified polyolefin and offers 4:1 shrink ratio. The tubing is specifically designed for insulating, protecting and sealing electrical connections and joints in low-voltage cables. RHW is the ideal choice whenever maximum mechanical protection is required in an electrical insulation system. The material used to manufacture RHW is both halogen-free and UV resistant. It provides splice insulation thickness equal to or greater than standard wire insulation manufactured to common industry standards. The tubing provides a complete moisture-proof seal preventing corrosion of underlying components and adhesive liner specially formulated to seal to most common insulation materials including cross-linked polyolefin, PVC, neoprene and other elastomeric materials as well as most metals.




Resistant to chemicals, moisture and oils

Provides high level of strain relief when installed on splices and joints

Easy to install with a torch or heat gun

125°C Full recovery temperature

-40 to 110°C Operating temperature range





Applications


Power Management,

Automotive,

Safety,

Industrial
