Raychem TE Connectivity RNF100116BKSTK Heat-Shrink Tubing

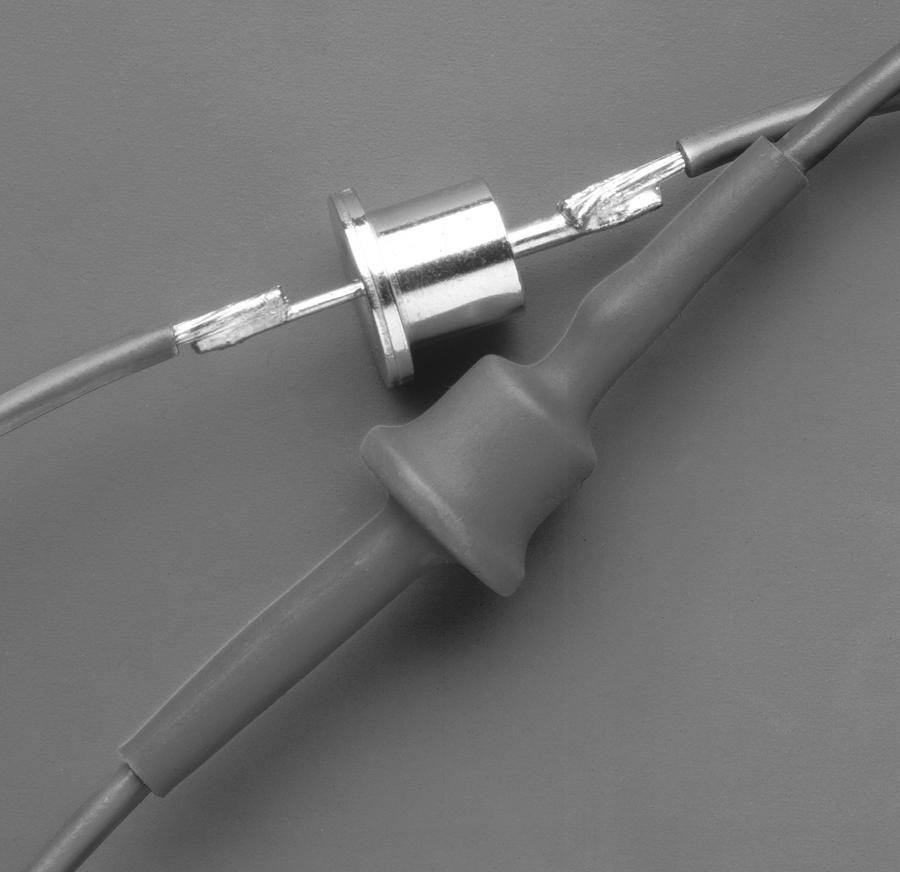

The RNF-100-1/16-BK-STK heat-shrinkable tubing offers excellent mechanical, thermal, and fluid resistance for demanding environments. It provides superior abrasion and solvent resistance, conforms to irregular shapes, and is flame-retardant. Ideal for insulating wire terminations, connections, and jacketings for wire bundles and light-duty harnesses, it ensures reliable electrical insulation and strain relief. Suitable for industrial, military, aerospace, and commercial applications, it withstands temperatures from -55°C to 135°C, meeting or exceeding industry standards for safety and durability.
Raychem TE Connectivity RNF100116BKSTK Heat-Shrink Tubing Specifications:
- Shrink Ratio: 2:1
- Minimum Shrink Temperature: 95°C (203°F)
- Temperature Range: -55°C to 135°C
- Inside Diameter: 1/16 inch (0.046 inch) as supplied, expands to 0.6 inch, after heating 0.023 inch wall thickness, recovery wall thickness approximately 0.016 inch
- Colors Available: Black, white, red, blue, yellow, clear, brown, orange, green, violet, gray
- Flame-Retardant: Yes
- RoHS Compliant: Yes
- Material: Polyolefin, Flame-retardant (colors only)
- Application: Insulation, strain relief, jacketings for wire bundles, identification
- Standards: MIL-STD-23053/5, AMS-DTL-23053/5, RT-350, VDE 0341 Pt 9005, UL 224, CSA Certified
Buy the Buy Raychem RNF-100 Part Number RNF100116BKSTK Online
Purchase Raychem RNF-100-1/16-BK-STK heat-shrink tubing online for excellent mechanical, thermal, and chemical resistance in demanding applications. This versatile tubing provides reliable insulation, strain relief, and abrasion resistance for wire terminations, bundles, and harnesses in industrial, military, aerospace, and commercial sectors. Offering a 2:1 shrink ratio and operating temperatures from -55°C to 135°C, it conforms to irregular shapes and is flame-retardant. Available in multiple colors, it ensures safety, durability, and compliance with industry standards. Order now for quick delivery and superior performance.
Get Raychem RNF-100-1/16-BK-STK today—built for superior abrasion resistance, reliable insulation, and long-lasting performance in demanding environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity RNF100116BKSTK?
You can click on the BUY or RFQ button to purchase RNF100116BKSTK from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part RNF100116BKSTK?
You can download the RNF100116BKSTK datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of RNF100116BKSTK?
Raychem TE Connectivity
