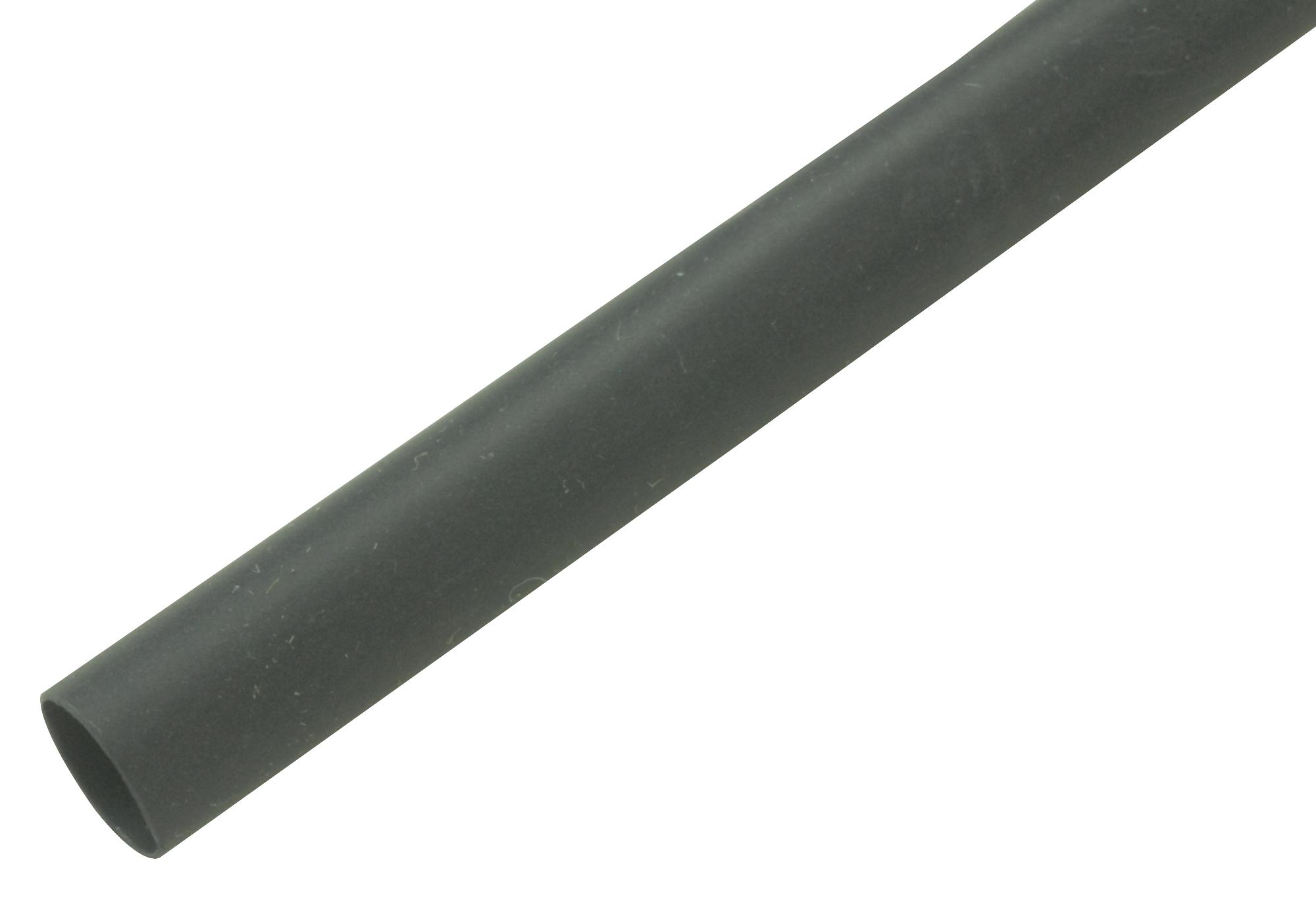

Raychem TE Connectivity RNF1003160STK Heat Shrink Tubing
The RNF-100 series from TE Connectivity features flame-retardant, high-performance polyolefin heat shrink tubing designed for general-purpose applications. Made from irradiated modified polyolefin, these flexible, single-wall tubes offer a 2:1 shrink ratio and excellent physical, chemical, and electrical properties, meeting or exceeding industrial and military standards. They resist abrasion, fluids, and thermal stress across temperatures from -55°C to +135°C, withstanding voltages up to 600V. Ideal for insulation, strain relief, wire bundling, and color coding, these versatile tubes are available in various sizes and colors including black, white, red, blue, yellow, and clear.
Raychem TE Connectivity RNF1003160STK Heat Shrink Tubing Specifications:
- Material: irradiated modified polyolefin
- Shrink Ratio: 2:1
- Operating Temperature Range: -55°C to 135°C
- Minimum Shrink Temperature: 121°C (250°F)
- Maximum Voltage: 600V
- Wall Thickness After Heating: 0.08 inches (2 mm) for 3/32 inch size
- Inside Diameter (Expanded): 0.093 inches (2.4 mm) for 3/32 inch size
- Inside Diameter (Recovered): 0.046 inches (1.2 mm) for 3/64 inch size
- Color Options: Black, white, red, blue, yellow, clear, and others
- Standards: MIL-DTL-23053/5 Class 1 & 2, RT-350, AMS-DTL-23053/5, VDE 0341 Pt 9005
Buy the TE Series RNF-100 Heat Shrink Tubing: RNF1003160STK
Experience superior electrical insulation, strain relief, and environmental resistance with TE Series RNF-100 heat shrink tubing. Designed for demanding applications, this versatile polyolefin tubing offers a 2:1 shrink ratio, excellent chemical and mechanical resistance, and operating temperatures from -55°C to +135°C. Available in multiple colors and sizes, it ensures secure, professional wiring solutions. Order online today to benefit from quick delivery, quality assurance, and the perfect fit for your electrical, automotive, or industrial projects, providing durable and safe connections.
Order your TE Series RNF-100 heat shrink tubing today and enhance your electrical insulation and protection with reliable polyolefin coverage.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity RNF1003160STK?
You can click on the BUY or RFQ button to purchase RNF1003160STK from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part RNF1003160STK?
You can download the RNF1003160STK datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of RNF1003160STK?
Raychem TE Connectivity
