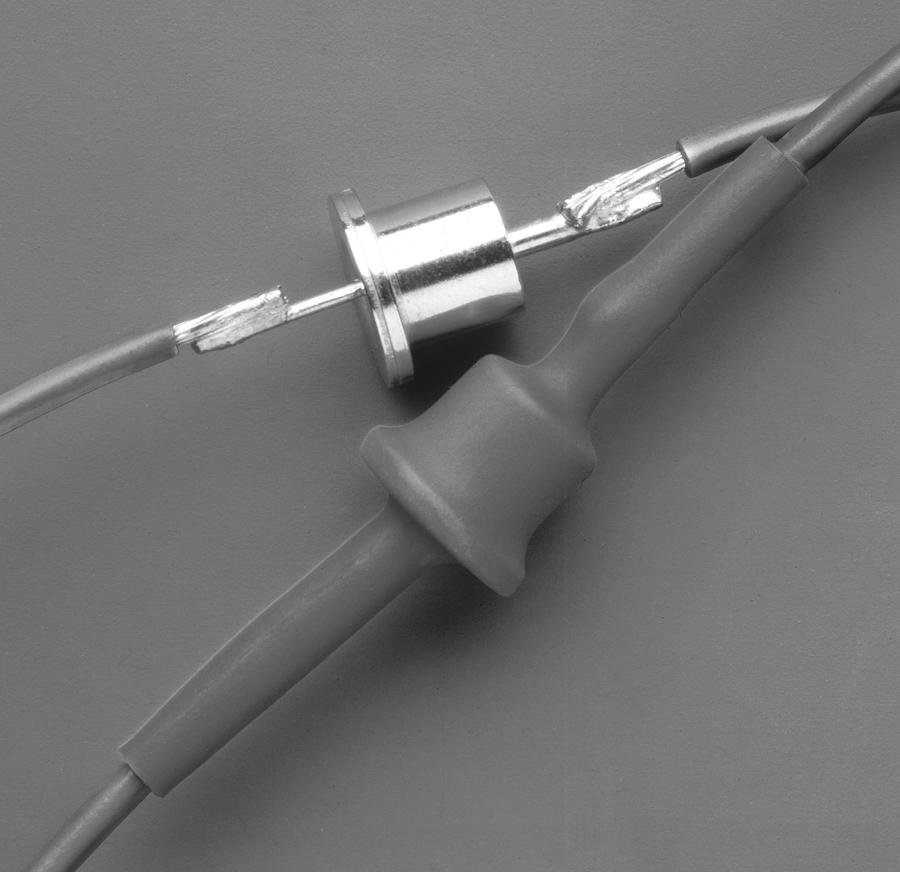

Raychem TE Connectivity RNF100MINISPL364BK Heat Shrink Tubing
The RNF-100-MINI-SPL-3/64-BK is a black, flexible, flame-retardant heat shrink tubing made from irradiated, modified polyolefin. It features a 2:1 shrink ratio and provides electrical insulation and strain relief for in-line components, electrical connections, wire terminations, and splices. Ideal for bundling wires in lightweight, flexible harnesses, it also aids in wire, cable, terminal, and component identification or color coding. The tubing has a minimum full recovery temperature of 121°C, a minimum shrink temperature of 95°C, and operates within a temperature range of -55°C to 135°C. It is suitable for applications in power management, automotive, safety, medical, defense, military, aerospace, and industrial sectors.
Raychem TE Connectivity RNF100MINISPL364BK Heat Shrink Tubing Specifications:
- Material: Irradiated, modified polyolefin
- Shrink Ratio: 2:1
- Full Recovery Temperature: 121°C (250°F)
- Shrink Temperature: 95°C (203°F)
- Operating Temperature Range: -55°C to 135°C (-67°F to 275°F)
- Flammability Rating: UL 224/CSA VW-1
- Color: Black
- Maximum Voltage: 600 V
- Dimensions: 3/64 inch (1.19 mm) diameter, 6 inch (152 mm) length
- Application: Electrical insulation, strain relief, wire and cable bundling, color coding
- Suitable for: Power management, automotive, aerospace, military, industrial applications
Buy the Raychem RNF100MINISPL364BK – Reliable Heat Shrink Tubing for Industrial Applications
Order Raychem RNF-100 heat shrink tubing online today for quick, reliable electrical insulation, strain relief, and wire management. This flexible, flame-retardant polyolefin tubing offers excellent chemical resistance, operates within -55°C to 135°C, and features a 2:1 shrink ratio, making it ideal for aerospace, automotive, power, and industrial applications. Its UL 224/CSA VW-1 flammability rating ensures safety compliance, while the easy-to-apply design helps streamline installation in various complex wiring systems. Secure your supplies now for durable, high-quality insulation solutions.
Get Raychem RNF-100 mini-spools today—designed for reliable insulation and superior flame resistance in demanding environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity RNF100MINISPL364BK?
You can click on the BUY or RFQ button to purchase RNF100MINISPL364BK from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part RNF100MINISPL364BK?
You can download the RNF100MINISPL364BK datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of RNF100MINISPL364BK?
Raychem TE Connectivity
