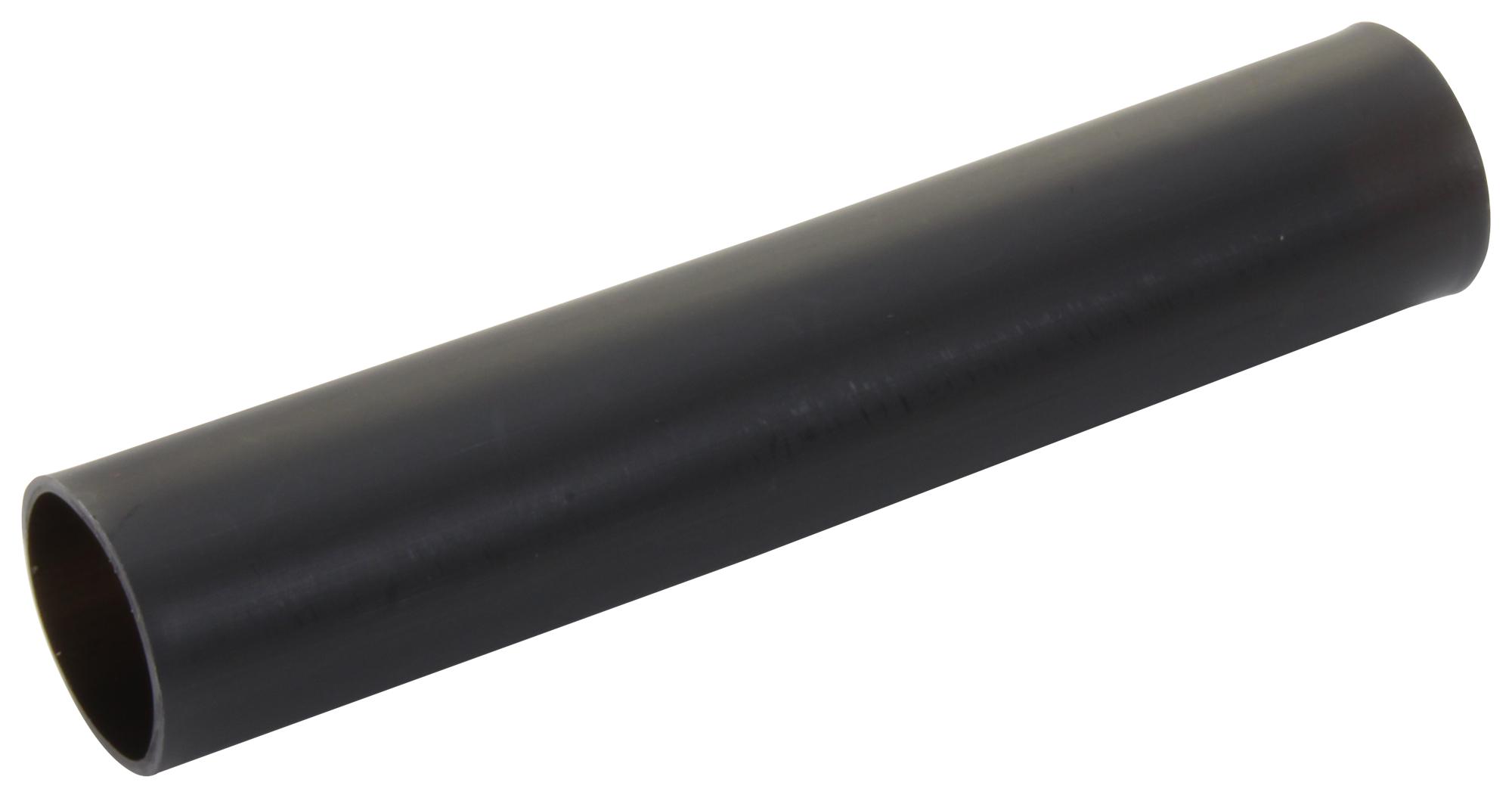

Raychem TE Connectivity RNF30002480STK Electrical Insulation Tubing
The RNF-3000 series is a high-shrink ratio, flame-retardant polyolefin tubing designed for insulation, strain relief, and protection of wires and cables. With a 3:1 shrink ratio, it easily conforms to irregular shapes, providing reliable electrical insulation and mechanical protection. Suitable for light-duty harnessing, wire identification, and electronic component insulation, this tubing operates from -55°C to 135°C. Available in multiple colors and sizes, it meets industry standards, RoHS compliance, and approvals for diverse electrical applications, ensuring safety and durability.
Raychem TE Connectivity RNF30002480STK Electrical Insulation Tubing Specifications:
- Shrink Ratio: 3:1
- Minimum Shrink Temperature: 80°C [176°F]
- Recovery Temperature: 120°C [248°F]
- Operating Temperature Range: -55°C to 135°C [-67°F to 275°F]
- Inside Diameter: 1.5/0.5 to 39/13 inches [0.060 to 1.534 meters]
- Wall Thickness: 0.10 to 0.20 inches [2.54 to 5.08 mm] after heating
- Material: Flame-retardant polyolefin
- Colors Available: Black, white, red, blue, yellow, clear, and nonstandard colors
- Approvals: Industry standards compliance, RoHS, UL listed
Buy the Raychem Series RNF-3000 High-Shrink Flame-Retardant Tubing: RNF3000
Enhance your electrical safety and organization with Raychem RNF-3000 high-shrink polyolefin tubing, offering reliable insulation, strain relief, and wire protection. Designed for quick and easy application, it shrinks uniformly to snugly fit irregular shapes, providing excellent chemical, physical, and electrical properties. Suitable for a wide temperature range from -55°C to 135°C, this flame-retardant tubing meets all industry standards, including RoHS, ensuring compliance and safety. Available in various colors and sizes, it’s perfect for light-duty harnessing, wire identification, and electronic component insulation, streamlining your assembly and maintenance processes.
Order your Raychem Series RNF-3000 flame-retardant tubing today and ensure your electrical insulation and protection needs are expertly met with durable, reliable material.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity RNF30002480STK?
You can click on the BUY or RFQ button to purchase RNF30002480STK from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part RNF30002480STK?
You can download the RNF30002480STK datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of RNF30002480STK?
Raychem TE Connectivity
