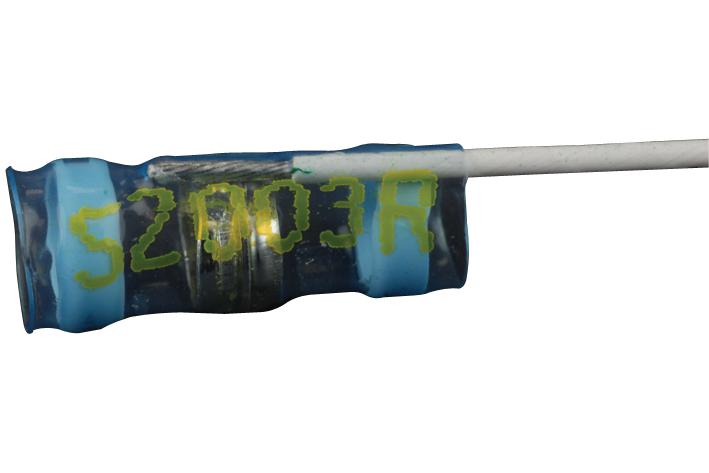

Raychem TE Connectivity S2003W2229 Shield Terminator
High-performance, high-temperature cable terminators designed for aerospace, defense, and marine applications. They provide fast, reliable shield termination and grounding for cables up to 200°C, featuring heat-shrinkable fluoropolymer tubing, thermoplastic inserts, and solder made from a tin 96%/silver 4% bi-alloy. These sleeves ensure environmental protection, strain relief, and secure sealing, with various sizes and pre-installed leads, including nickel-plated braid and MIL-W-22759/91-22-9 wire. Ideal for sealing and protecting shielded cables in extreme conditions, compliant with industry standards like SAE-AMS-DTL-23053/13 and SAE-AS83519.
Raychem TE Connectivity S2003W2229 Shield Terminator Specifications:
- Operating Temperature: 150°C to 200°C
- Material: Heat-shrinkable fluoropolymer tubing
- Solder: Tin 96%/Silver 4% bi-alloy
- Insulation Inserts: Thermoplastic fluoropolymer
- Standards: SAE-AMS-DTL-23053/13, SAE-AS83519, RoHS/ELV compliant
- Jacket Outer Diameter: ranges from 1.90 mm to 6.90 mm depending on size
- Shield Diameter: ranges from 0.90 mm to 4.30 mm depending on size
- Durability: Seal and strain relief for reliable environmental protection
- Application: Shield termination and grounding in extreme environments
- Includes: Various sizes with optional pre-installed leads, nickel-plated or MIL-W-22759/91-22-9 wire
Buy the Buy TE Connectivity Shield Terminators Part Number S2003W2229 Online
Order the TE Connectivity shield terminator S2003W2229 online for fast, reliable, and cost-effective cable shield termination. Designed for aerospace, defense, and marine industries, it features heat-shrinkable fluoropolymer tubing, thermoplastic inserts, and high-quality solder for secure and environmentally protected connections up to 200°C. Available in various sizes and lead configurations, including pre-installed nickel-plated and MIL-W-22759/91-22-9 wires. Ensures quick installation, strain relief, and long-term durability for critical applications in extreme environments. Perfect for sealing shielded cables efficiently and reliably.
Get TE Connectivity S2003W2229 today—built for precision, quick installation, and long-lasting environmental sealing in extreme conditions.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity S2003W2229?
You can click on the BUY or RFQ button to purchase S2003W2229 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part S2003W2229?
You can download the S2003W2229 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of S2003W2229?
Raychem TE Connectivity
