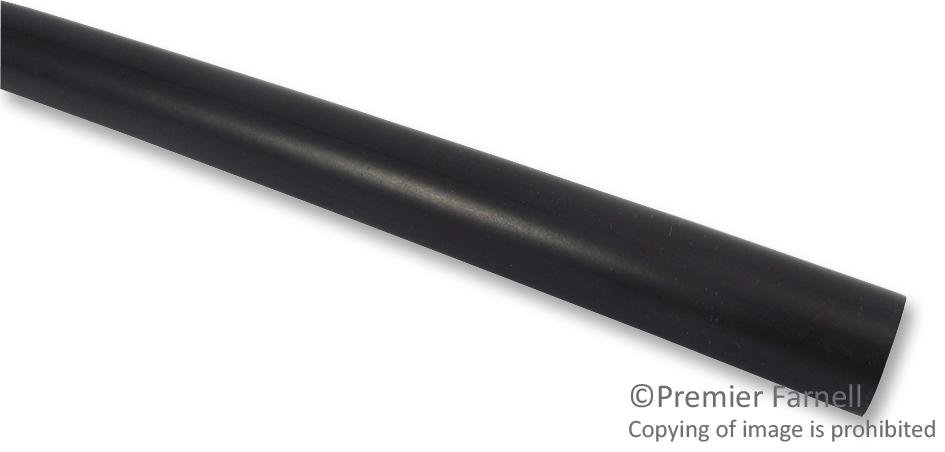

Raychem TE Connectivity SCL3160STK Heat-Shrinkable Tubing
SCL heat-shrinkable tubing by Tyco Electronics offers robust moisture resistance, strain relief, and electrical insulation for splices, terminations, and mechanical connections. Constructed as a dual-wall system with a crosslinked polyolefin outer layer and meltable inner wall, it shrinks with heat to fill surface irregularities. Suitable for electrical, aerospace, and industrial applications, SCL provides splash, chemical, and abrasion resistance. It is UL-recognized at 125°C, 600 V, meeting AMS-DTL-23053/4 Class 1 standards, ensuring reliable performance in demanding environments and requiring minimal sizes for diverse uses.
Raychem TE Connectivity SCL3160STK Heat-Shrinkable Tubing Specifications:
- Type: Raychem SCL RT-1301, AMS-DTL-23053/4, Class 1
- Full recovery temperature: 135°C
- Continuous operating temperature: 55°C to 110°C
- Wall thickness after recovery: approximately 0.038 inches (0.96 mm)
- Inside diameter expanded: varies from 0.125 inches (3.2 mm) to 1.000 inches (25.4 mm)
- Tensile strength: minimum 1500 psi (10.3 MPa)
- Ultimate elongation: 200% minimum
- Dielectric strength: minimum 500 volts/mil
- Volume resistivity: at least 10^5 ohm-cm
- Water absorption: maximum 0.1%
- Chemical resistance: noncorrosive and resistant to common solvents
- Temperature rating: operating 55°C to 110°C, full recovery at 135°C
- Electrical insulation: meets UL and military standards
- Physical dimensions: inside diameters from 3.2 mm to 25.4 mm, wall thickness approx 0.6 mm to 0.8 mm after recovery
- Colors: Black standard, with additional color options per size
- Packaging: 4-foot lengths for easy handling and installation
Buy the Tyco Electronics SCL3160STK – Reliable Heat-Shrinkable Tubing for Industrial Applications
Purchase Tyco Electronics heat-shrink tubing online today. Engineered for durability and superior insulation, this tubing ensures moisture resistance, strain relief, and abrasion protection for electrical and industrial applications. Easy to install with a reliable shrink temperature, it offers exceptional performance in demanding environments, meeting UL and military standards. Its versatile sizes and colors make it suitable for a wide range of wiring, splicing, and mechanical protection needs. Invest in quality today for long-term electrical safety and reliability.
Get Tyco Electronics SCL3160STK today—built for precision, long-lasting durability, and versatile electrical insulation needs.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity SCL3160STK?
You can click on the BUY or RFQ button to purchase SCL3160STK from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part SCL3160STK?
You can download the SCL3160STK datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of SCL3160STK?
Raychem TE Connectivity
