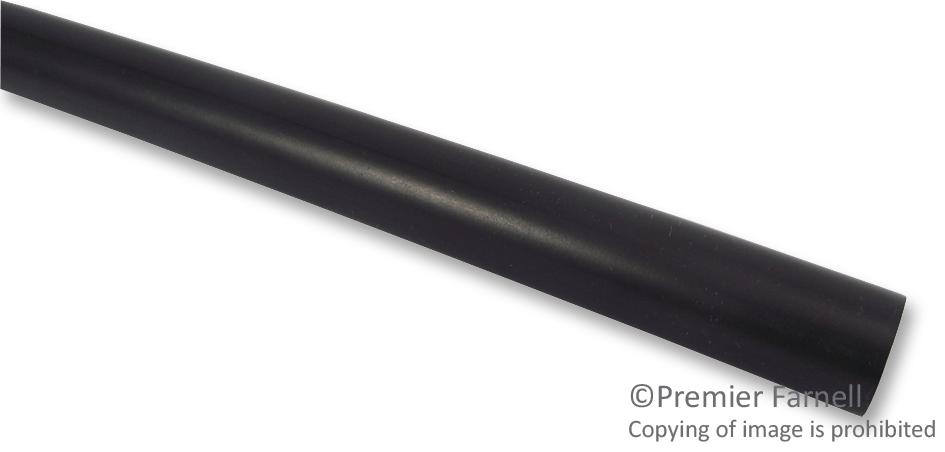

Raychem TE Connectivity SCL380STK Heat Shrink Tubing
The SCL-3/8-0-STK is a black, dual-wall heat shrink tubing made of semi-rigid, cross-linked irradiated polyolefin. It features a meltable inner liner and a semi-rigid outer jacket, providing a 3:1 shrink ratio. This tubing offers excellent moisture resistance, strain relief, and electrical insulation, making it suitable for electrical splices, terminations, breakouts, and mechanical connections. Upon heating, the outer wall shrinks tightly around the connector, while the inner layer melts and flows to fill surface irregularities, ensuring a rugged barrier against abrasion, vibration, and flexing. It operates effectively from -55°C to 110°C, with a minimum recovery temperature of 135°C. Widely used in power management, automotive, industrial, and safety applications, this reliable tubing enhances electrical and mechanical protection.
Raychem TE Connectivity SCL380STK Heat Shrink Tubing Specifications:
- Material: Cross-linked irradiated polyolefin
- Color: Black
- Shrink Ratio: 3:1
- Inner Wall: Meltable
- Outer Jacket: Semi-rigid, crosslinked polyolefin
- Full Recovery Temperature: 135°C
- Operating Temperature Range: -55°C to 110°C
- Dimensions: Diameter expands to 3/8 inch, recovered wall thickness approximately 0.038 inches
- Tensile Strength: Minimum 1500 psi (10.3 MPa)
- Ultimate Elongation: 200% minimum
- Dielectric Strength: 500 volts/mil
- Volume Resistivity: 10^15 ohm-cm
- Chemical Resistance: Noncorrosive, resistant to common solvents
- Water Absorption: Max 0.1% in 24 hours
- Flammability: UL 94V-0
- Temperature Resistance: No dripping or cracking at 175°C for 168 hours
- Electrical Insulation: Meets UL and military standards
- Packaging: 4-foot lengths, in standard colors including black
- Ordering: Specify size and color; example SCL3/8-0-0 (Black)
Buy the Tyco Electronics SCL380STK – Reliable Heat Shrink Tubing for Industrial Applications
Enhance your electrical and mechanical protection with Tyco Electronics SCL380STK heat shrink tubing. Designed for durability, moisture resistance, and strain relief, it features a 3:1 shrink ratio with a meltable inner liner that flows to fill irregularities for a secure fit. Suitable for power management, automotive, and industrial applications, this tubing ensures long-lasting insulation and protection against abrasion, vibration, and flexing. Order 4-foot lengths online today and benefit from quick delivery, high-quality standards, and reliable performance for your projects.
Buy Tyco Electronics SCL380STK now and experience unmatched reliability, excellent insulation, and mechanical protection in your electrical projects.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity SCL380STK?
You can click on the BUY or RFQ button to purchase SCL380STK from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part SCL380STK?
You can download the SCL380STK datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of SCL380STK?
Raychem TE Connectivity
