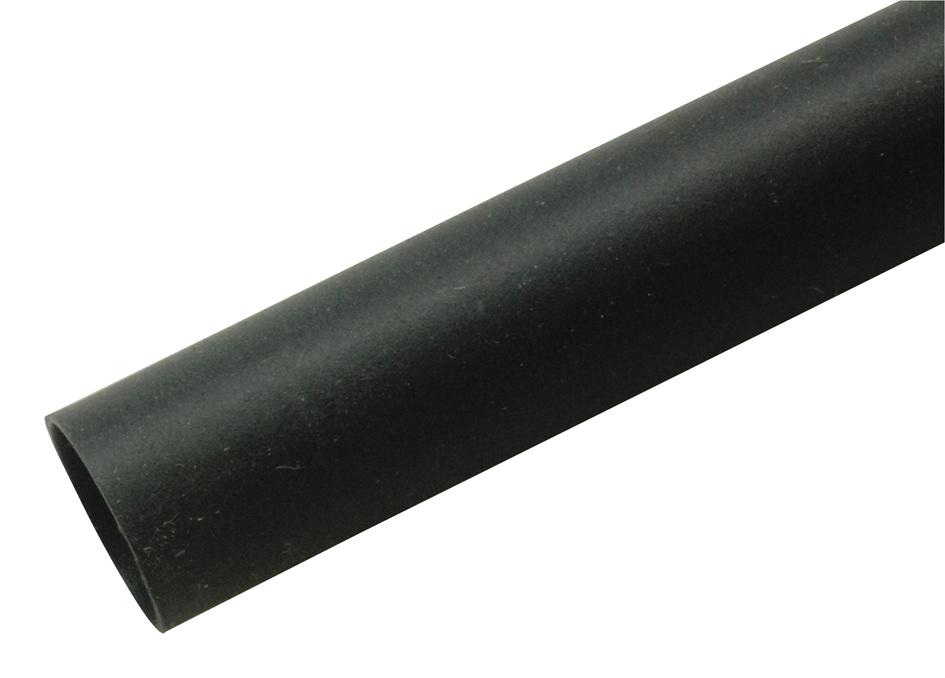

Raychem TE Connectivity SCTNO2E5050MM Polyolefin Tubing
Raychem SCT series flame-retardant, adhesive-lined, semi-rigid polyolefin tubing is designed for wire insulation, splice sealing, and component protection in automotive and industrial applications. Featuring a 4:1 shrink ratio, the tubing offers excellent strain relief and abrasion resistance, with a thick adhesive liner providing an effective moisture barrier. It performs reliably across an extended temperature range from -40°C to +150°C, with a minimum shrink temperature of 110°C. RoHS compliant, these tubes are suitable to insulate wire splices in harsh environments, ensuring long-term durability and safety.
Raychem TE Connectivity SCTNO2E5050MM Polyolefin Tubing Specifications:
- Shrink Ratio: 4:1
- Inner Diameters: SCT No.1 1.7 [0.065] in, SCT No.2 2.3 [0.090] in, SCT No.3 2.5 [0.100] in, SCT No.4 4.4 in
- Recovered Wall Thickness: 0.060 in (nominal)
- Operating Temperature Range: -40°C to 150°C
- Minimum Shrink Temperature: 110°C
- Full Recovery Temperature: 135°C
- Material: Flame-retardant, polyolefin with adhesive liner
- Color: Black
- RoHS Compliant
- Application: Wire splices, terminal insulation, component sealing
- Length: Cut pieces available, standard packaging
- Certification: RoHS
Buy the Buy Raychem SCT Series Flame-Retardant Polyolefin Tubing Part Number SCTNO2E5050MM Online
Purchase Raychem SCT series flame-retardant, adhesive-lined polyolefin tubing online for dependable wire insulation and sealing in harsh environments. With a 4:1 shrink ratio, extended temperature performance from -40°C to 150°C, and RoHS compliance, this tubing protects wire splices, terminals, and components against abrasion, moisture, and heat. Ideal for automotive, industrial, and electronics applications, the tubing's thick adhesive liner ensures a secure barrier against fluids and environmental contaminants. Order now to enhance your project's durability and safety with quality sealing solutions.
Order your Raychem SCT Series flame-retardant, adhesive-lined tubing today and secure reliable insulation and sealing for your automotive and industrial projects.
