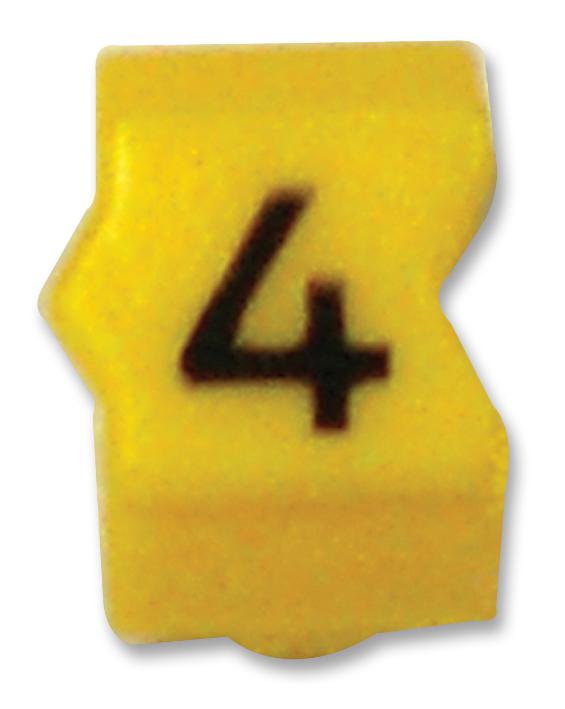

Raychem TE Connectivity STD06Y4 Cable Markers
TE Connectivity STD and STB markers are highly durable, zero halogen cable identification markers designed for permanent use in energy, oil refineries, and offshore platforms. Made from UV stabilized, flame-resistant polyoxymethylene (POM), these markers accommodate a wide range of wire sizes from 1.0 to 19.0mm. They feature an expanding profile for secure grip, chevron cut for aligned legends, and are suitable for post termination wire and optical fiber identification. Easy to install with applicator wands that prevent over-expansion, ensuring reliable performance in harsh environments with operating temperatures from -40°C to 106°C. These markers meet UL94 HB flame resistance and RoHS, REACH compliance standards, making them ideal for demanding industrial applications.
Raychem TE Connectivity STD06Y4 Cable Markers Specifications:
- Material: Zero halogen polyoxymethylene (POM)
- Flammability: UL94 HB rated
- Temperature Range: -40°C to 106°C
- UV Stabilized: Yes
- Color: White/Yellows with color coding options
- Sizes: 1.0 to 19.0mm diameter (0.04 to 0.75 inches)
- Expansion Profile: Enables wide wire size accommodation
- Application: Post termination cable identification, optical fibers
- Installation Method: Side-entry with applicator wand to prevent over-expansion
- Resistance: Key fluids, UV light, chemicals common in energy and industrial plants
- Standards: RoHS, REACH, UL94 HB flame resistance
- Environmental: No halogens, sulfur, nitrogen, phosphorus, or cadmium above trace levels
Buy the TE Series STD Cable Markers: STD06Y4
Order TE Series STD06Y4 cable markers online today and ensure reliable, long-lasting identification for wires and optical fibers in energy, oil refineries, and offshore platforms. These markers are made from high-quality UV stabilized, flame-resistant polyoxymethylene and feature an expanding profile for secure grip on wires ranging from 1.0 to 19.0mm in diameter. Easy to install using applicator wands, they provide a permanent labeling solution compliant with RoHS and REACH standards. Enhance your cable management today with these robust, easy-to-read markers designed for extreme environments.
Buy TE Series STD06Y4 cable markers now and experience unmatched durability, flame resistance, and easy installation for energy and industrial applications.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity STD06Y4?
You can click on the BUY or RFQ button to purchase STD06Y4 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part STD06Y4?
You can download the STD06Y4 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of STD06Y4?
Raychem TE Connectivity
