Raychem TE Connectivity TAT125120STK Heat Shrink Tubing

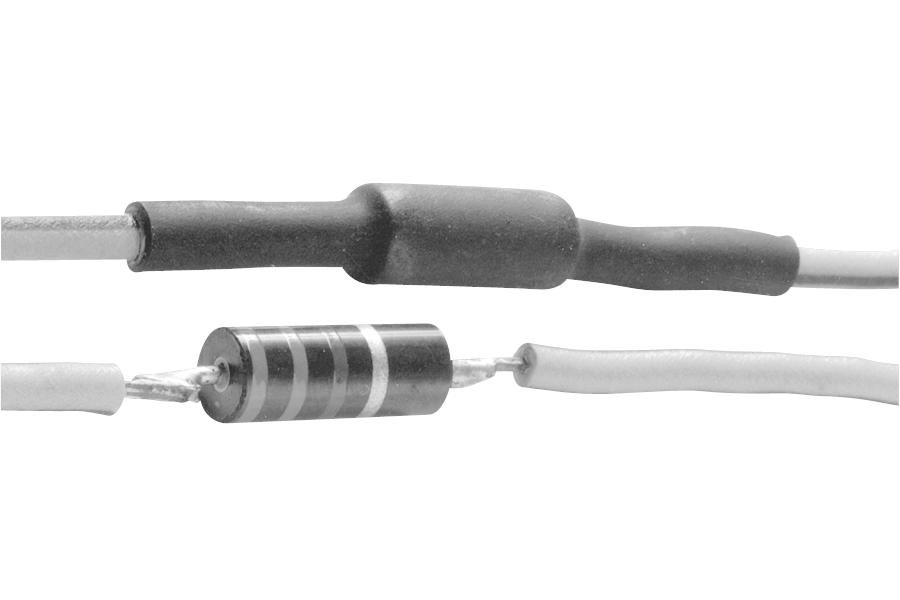

The TAT-125-1/2-0-STK is a black, flexible heat shrink tubing made from adhesive-lined polyolefin with dual thin-wall construction. It features a thin adhesive lining that bonds to the outer tubing and surface beneath, forming a reliable environmental seal. The moisture-resistant seal is designed to withstand bending of the substrate and bonds effectively to various materials including plastics, rubbers, metals, polyethylene, neoprene, lead, and steel. This tubing provides one-step electrical insulation and moisture sealing, making it ideal for sealing and protecting simple in-line splices, bi-metallic joints, and components from fluids, moisture, and corrosion. It is also suitable for repairing damaged wire insulation where flexibility is needed. The tubing offers high flexibility in both material and adhesive, good mechanical strength, cut-through resistance, and fluid resistance against sprays and splashes. It resists flexing, fluids, and mechanical damage with an operating temperature range of -55°C to 110°C. Additionally, it is flame-retardant and suited for industrial applications.
Raychem TE Connectivity TAT125120STK Heat Shrink Tubing Specifications:
- Material: Adhesive-lined polyolefin with dual thin-wall construction
- Color: Black (standard), also available in white, red, blue, yellow, green, brown, orange, violet, gray, and clear
- Inside Diameter: 1/8 to 1-1/2 inches (expanded) before shrinking
- Recovered Size: 0.062 to 0.500 inches depending on size
- Wall Thickness: 0.027 to 0.047 inches after heating
- Adhesive Wall Thickness: 0.009 to 0.011 inches after heating
- Operating Temperature Range: -55°C to 110°C
- Minimum Full Recovery Temperature: 121°C (250°F)
- Maximum Continuous Operating Temperature: 95°C (203°F) with bimetallic joints
- Mechanical Strength: Good, with cut-through resistance
- Moisture Seal Resistance: Effective against fluids and corrosion
- Flame Retardant: Yes
- Standards: RoHS compliant, UL Listed, CSA Certified, Series uw AY, Type 1 (colors), Type 2 (clear), part of Raychem TAT-125 series
- Sizes: 1/8 inch to 1-1/2 inch, available in 4-foot lengths, order by specifying size, color, and product name
Buy the Raychem Series TAT-125 Adhesive-Lined Heat Shrink Tubing: TAT125120STK
Purchase the Raychem Series TAT-125 adhesive-lined heat shrink tubing online today and benefit from its excellent sealing capabilities, flexibility, and mechanical strength. Designed for industrial applications, this tubing provides reliable protection against moisture, corrosion, and mechanical damage. Easy to install, it shrinks uniformly to fit components snugly, ensuring electrical insulation and environmental sealing for wires, joints, and components. With a temperature range from -55°C to 110°C, it is perfect for demanding settings. Buy now to achieve professional results with durable, flame-retardant tubing that complies with industry standards.
Order your Raychem Series TAT-125 adhesive-lined heat shrink tubing today and ensure reliable electrical insulation and moisture protection in your projects.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity TAT125120STK?
You can click on the BUY or RFQ button to purchase TAT125120STK from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part TAT125120STK?
You can download the TAT125120STK datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of TAT125120STK?
Raychem TE Connectivity
