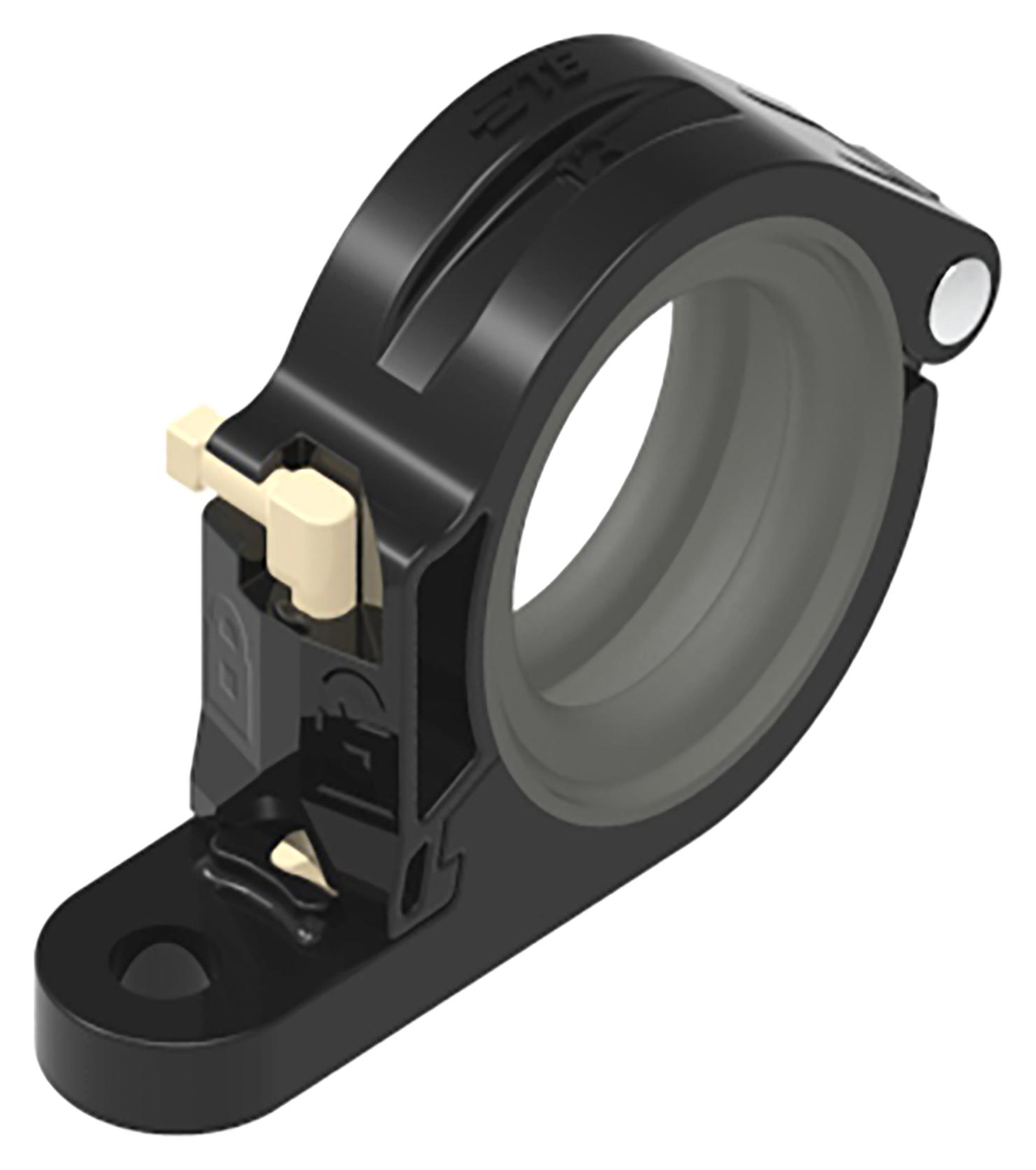

Raychem TE Connectivity THAPDKG15 Cable Clamp
The TE Connectivity P-Clamp series offers a lightweight, quick-install cable management solution designed for aerospace, military, and industrial applications. Made with aerospace-grade PEEK and chloroprene cushioning, it securely grips wide-diameter cables, reduces foreign object debris risk, and enables tool-free installation even in confined spaces. These P-Clamps support a load of up to 50 lbs, resist fuels, oils, and deicer fluids, and operate efficiently in temperatures from 5°C to +85°C. They streamline assembly, lowering costs and minimizing damage to cables during installation and operation.
Raychem TE Connectivity THAPDKG15 Cable Clamp Specifications:
- Material: Aerospace-grade PEEK, Chloroprene cushion
- Operating Temperature: 5°C to +85°C
- Load Capacity: 50 lbs static (all directions)
- Wire Bundle Range: 25" - 1.375" (3.2mm - 35mm)
- Width: 5 inches (12.7mm)
- Vibration Resistance: 27 grms
- Fluid Resistance: Fuel, Deicer, Oil, Cleaning Compound
- Mounting Hardware: ANSI 10/MS screw (washer recommended)
- Standards: SAE AS23190 Type 3 Class 1
Buy the TE Connectivity Series P-Clamp: THAPDKG15
Purchase the TE Connectivity P-Clamp online today to enjoy efficient, tool-free installation and secure cable management. Designed for aerospace, military, and industrial applications, this lightweight clamp features aerospace-grade materials ensuring durability and high performance. It supports a wide range of cable sizes, resists fluids like fuel and oil, and operates effectively in temperature ranges from 5°C to +85°C. Simplify assembly, minimize cable damage, and reduce costs with this reliable, easy-to-install clamp for your critical wiring needs.
Get TE Connectivity P-Clamp today—built for reliable, tool-free cable management in aerospace and industrial settings.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity THAPDKG15?
You can click on the BUY or RFQ button to purchase THAPDKG15 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part THAPDKG15?
You can download the THAPDKG15 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of THAPDKG15?
Raychem TE Connectivity
