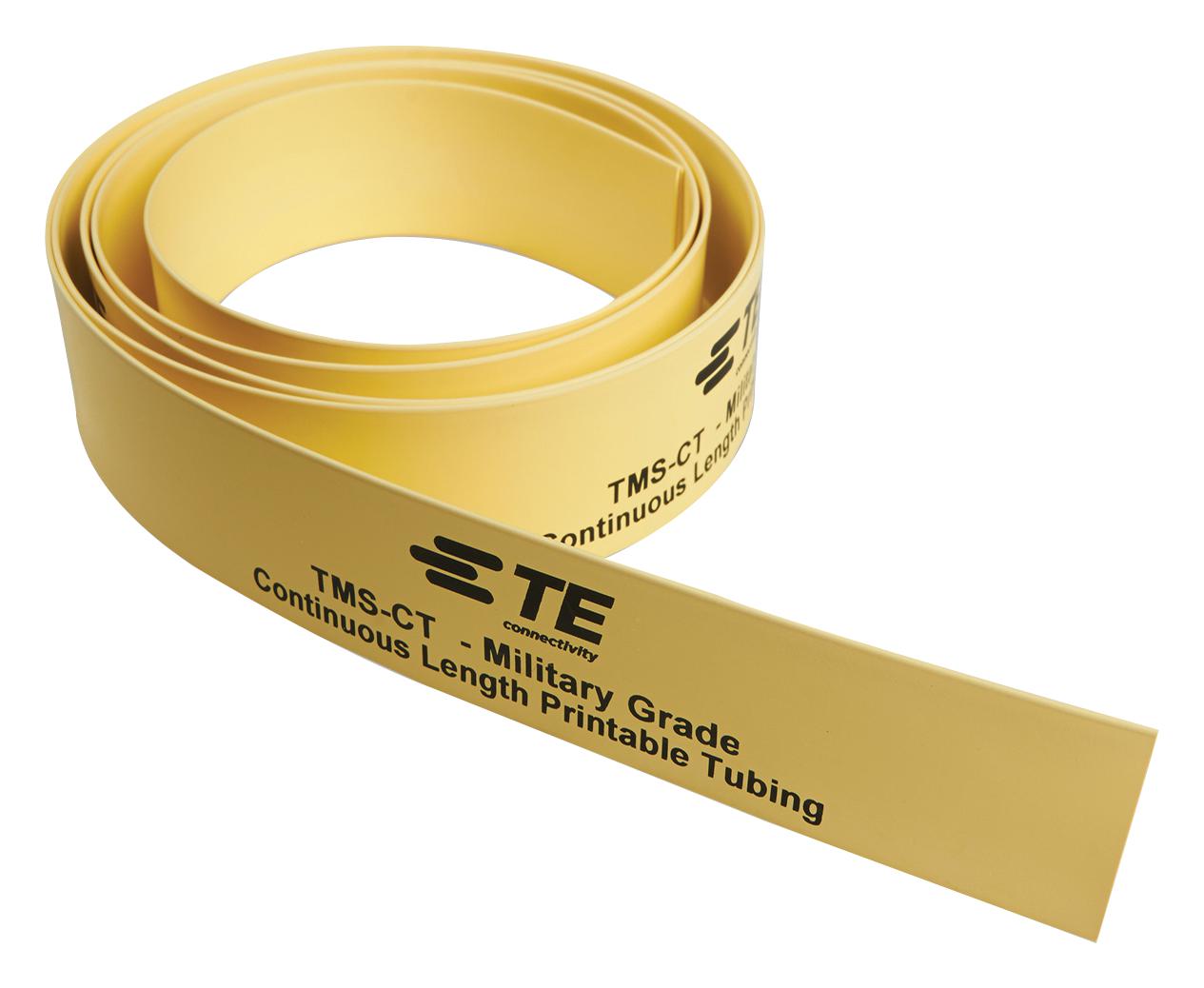

Raychem TE Connectivity TMSCT50M112OUT9 Heat Shrink Identification Sleeve
The TMS-CT series is a military-grade, heat-shrink identification marker sleeving used for the identification of wires and cables. Made from durable, flame-retardant polyolefin, these heat-shrinkable wire markers are designed to meet the high-performance requirements of aerospace, military, industrial, transportation, and energy applications. They are self-extinguishing with non-flame propagating properties, resistant to key military and aerospace fluids as specified by RW-2511, and can be laser marked for enhanced readability. The markers support pre-termination cable identification, feature a thin wall and lightweight design with a 2:1 shrink ratio for quick recovery, and have a more open profile for ease of use. The spools are 50 meters (160 feet) long and are compatible with outside printers. Operating temperature ranges from -55°C to +135°C.
Raychem TE Connectivity TMSCT50M112OUT9 Heat Shrink Identification Sleeve Specifications:
- Material: Crosslinked polyolefin
- Flammability: Self-extinguishing, non-flame propagating
- Resistant to military and aerospace fluids (RW-2511 compliant)
- Shrink Ratio: 2:1 (except 38.1 and 50.8mm which are 2:1)
- Operating Temperature Range: -55°C to +135°C
- Inside Diameter (Expanded): 2.4mm to 50.8mm
- Inside Diameter (Maximum after recovery): 0.09 inch to 2.00 inch
- Length per spool: 50 meters (164 feet)
- Printer Compatibility: Outside printer recommended for larger spool sizes
- Color Options: Yellow, White, Brown, Red, Orange, Green, Blue, Violet, Grey, Black
- Certifications: Meets industry standards including SAE-AMS-23053/5, UL, CSA, EN45545-2, NFPA 130, DOT, and railway fire safety standards
- Temperature Rating: -55°C to +135°C
Buy the TE Connectivity TMS-CT – Reliable Heat Shrink Identification System for Industrial Applications
Order TE Connectivity TMS-CT heat shrink identification markers online now and enjoy durable, flame-retardant wire and cable identification for aerospace, military, industrial, and energy sectors. With a 2:1 shrink ratio, easy application, and compliance with industry standards, these markers provide reliable, high-performance identification solutions. Available in multiple sizes and colors, they ensure efficient pre-termination wiring and robust performance under extreme temperature conditions. Purchase today for quick delivery and enhanced cable management in demanding environments.
Get TE Connectivity TMS-CT today—built for precision and long-lasting durability in demanding environments.
