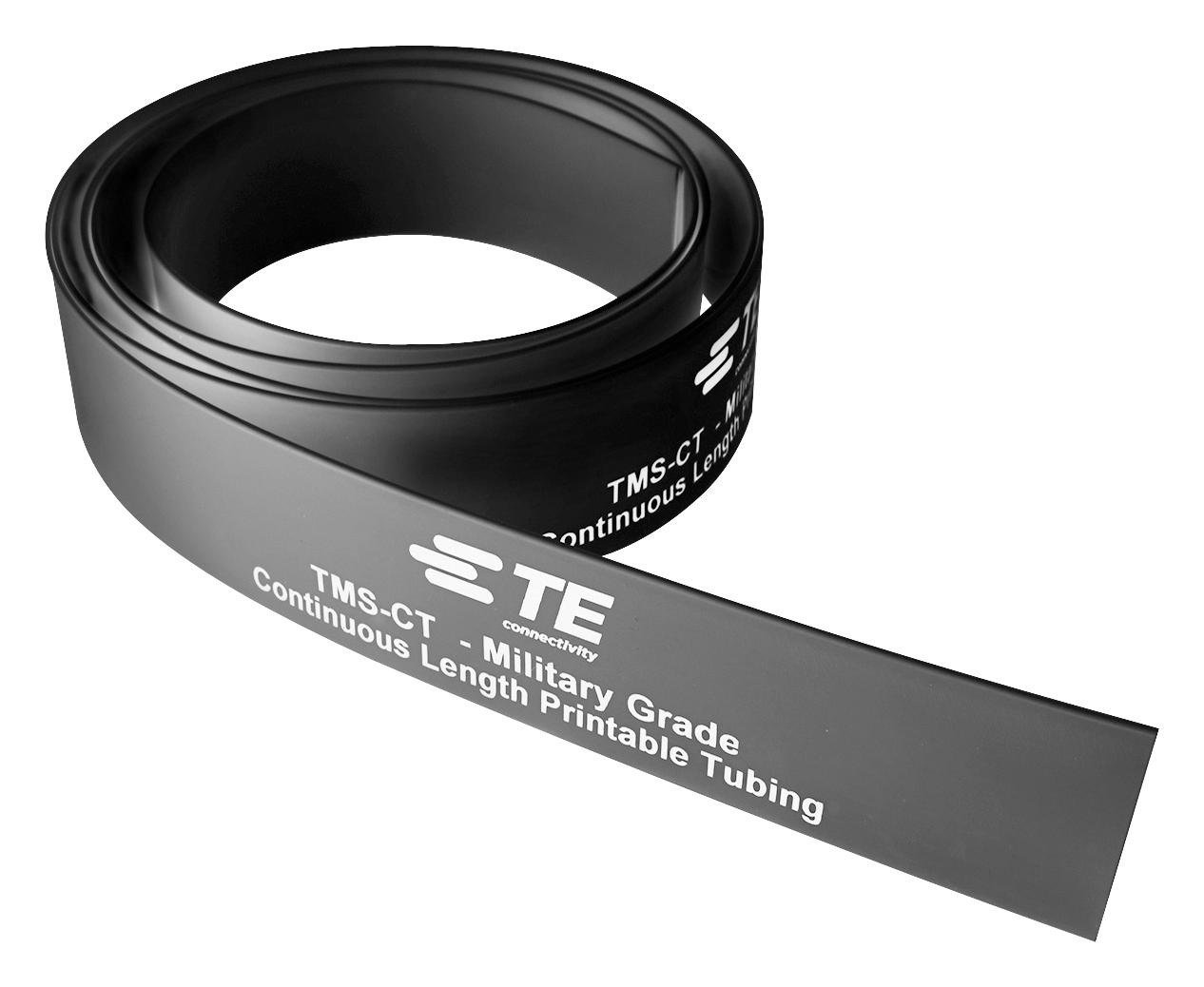

Raychem TE Connectivity TMSCT50M12OUT0 Heat Shrink Identification Sleeve
TMS-CT is a military-grade, heat shrink identification sleeve designed for wire and cable marking in aerospace, military, industrial, transport, and energy sectors. Made from durable, flame-retardant, radiation cross-linked polyolefin, it features a 3:1 shrink ratio enabling coverage of a wide range of cable diameters. It complies with SAE-AMS-DTL-23053/5 Class 1 and meets industry standards such as RoHS, REACH, and UL certification. Suitable for laser marking, it offers excellent flame resistance, resistance to key fluids, and is self-extinguishing, ensuring safe and long-lasting identification solutions.
Raychem TE Connectivity TMSCT50M12OUT0 Heat Shrink Identification Sleeve Specifications:
- Material: Cross-linked polyolefin
- Shrink Ratio: 3:1 (except 1.5 and 2 inch sizes with 2:1 ratio)
- Temperature Rating: -55°C to 135°C (-67°F to 275°F)
- Inside Diameter: Ranges from 2.4mm to 50.8mm (0.094 to 2.00 inches) before recovery
- Maximum Expanded Diameter: 25.4mm to 50.8mm (1.00 to 2.00 inches)
- Color Options: Yellow, White, Brown, Red, Orange, Green, Blue, Violet, Grey, Black
- Shelf Life: Refer to TE document 408-121006
- Standards and Approvals: SAE-AMS-23053/5, UL, CSA, EN45545-2, NFPA 130, DOT/FAI, Japan Railway
- Compliance: RoHS, REACH, Fire Hazard Classification 1, 2, 3
- Suitable for laser marking; compatible with specific TE printers and ribbons
Buy the Buy TE Connectivity TMS-CT Part Number TMSCT50M12OUT0 Online
Order TE Connectivity TMS-CT heat shrink identification sleeves online today to ensure reliable, flame-retardant wire and cable identification in aerospace, military, and industrial applications. Designed from durable, radiation cross-linked polyolefin, these sleeves provide superior flame resistance and environmental protection, meeting industry standards such as SAE-AMS and UL certifications. With an easy-to-use, fast recovery 3:1 shrink ratio, available in multiple colors and sizes, they simplify cable management and identification across various demanding sectors. Purchase now for long-lasting, safe wiring solutions.
Get TE Connectivity TMS-CT Part Number TMSCT50M12OUT0 today—built for precision, durability, and reliable wire identification in harsh environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity TMSCT50M12OUT0?
You can click on the BUY or RFQ button to purchase TMSCT50M12OUT0 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part TMSCT50M12OUT0?
You can download the TMSCT50M12OUT0 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of TMSCT50M12OUT0?
Raychem TE Connectivity
