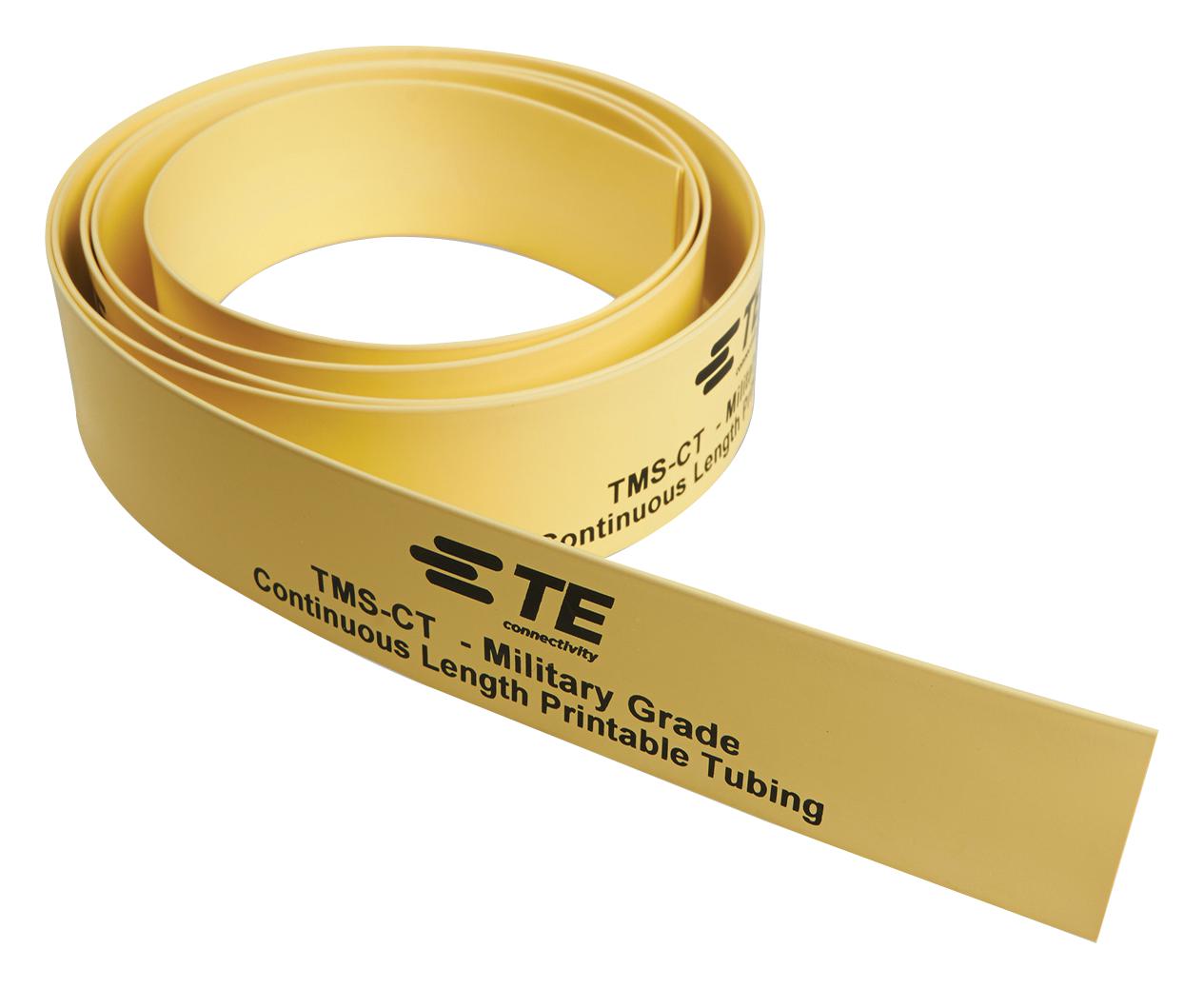

Raychem TE Connectivity TMSCT50M12OUT4 Heat Shrink Identification Sleeve
The TMS-CT series is a military-grade heat shrink identification marker sleeving used for the identification of wires and cables. Made from durable, flame-retardant polyolefin, this heat shrinkable wire marker is designed to meet the high-performance needs of industries such as aerospace, military, industrial, transportation, and energy. It is self-extinguishing and resistant to key military and aerospace fluids as defined by RW-2511. The marker can be laser marked for better readability, supports pre-termination cable identification, and features a thin-walled, lightweight design with a fast 3:1 shrink ratio and an open profile for easier application. Each spool is 50 meters (160 feet) long and compatible with outside printers. Operating temperature ranges from -55°C to +135°C.
Raychem TE Connectivity TMSCT50M12OUT4 Heat Shrink Identification Sleeve Specifications:
- Material: Polyolefin, flame retardant, radiation cross linked
- Shrink Ratio: 3:1 (except 38.1 and 50.8mm which are 2:1)
- Operating Temperature: -55°C to 135°C
- Inside Diameter (Expanded): from 2.4mm (0.094 inch) to 50.8mm (2.00 inch)
- Maximum Recovery Diameter: from 0.90mm (0.035 inch) to 25.5mm (1.00 inch)
- Length: 50 meters (164 feet) per spool
- Resistance: Self-extinguishing, flame retardant, resistant to military and aerospace fluids
- Application: Wire and cable identification in aerospace, military, industrial, transport, and energy sectors
- Compliance: Meets SAE-AMS-23053/5, EN45545-2, NFPA 130, Federal Railroad standards, CSA, UL certifications
- Supported Printers: Compatible with specific TE Connectivity thermal transfer printers and ribbons
- Laser Marking: Yes, for enhanced readability
- Shelf Life: Refer to TE document 408-121006
Buy the TE Connectivity Series TMSCT50M12OUT4 Heat Shrink Identification Sleeve: TMSCT50M12OUT4
Purchase the TE Connectivity TMS-CT heat shrink identification sleeve online today. This durable, flame-retardant, laser-markable wire marker supports pre-termination and features a 3:1 shrink ratio for quick, reliable installation across aerospace, military, industrial, and energy sectors. With sizes ranging from 2.4mm to 50.8mm inside diameter, it meets stringent industry standards including SAE-AMS-23053/5 and EN45545-2. Available in 50-meter spools, it offers excellent fluid resistance and high-temperature performance, ensuring your wiring systems are clearly identified and compliant with security regulations.
Order your TE Connectivity TMS-CT military grade heat shrink identification sleeve today and ensure reliable wire and cable identification in demanding industrial environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity TMSCT50M12OUT4?
You can click on the BUY or RFQ button to purchase TMSCT50M12OUT4 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part TMSCT50M12OUT4?
You can download the TMSCT50M12OUT4 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of TMSCT50M12OUT4?
Raychem TE Connectivity
