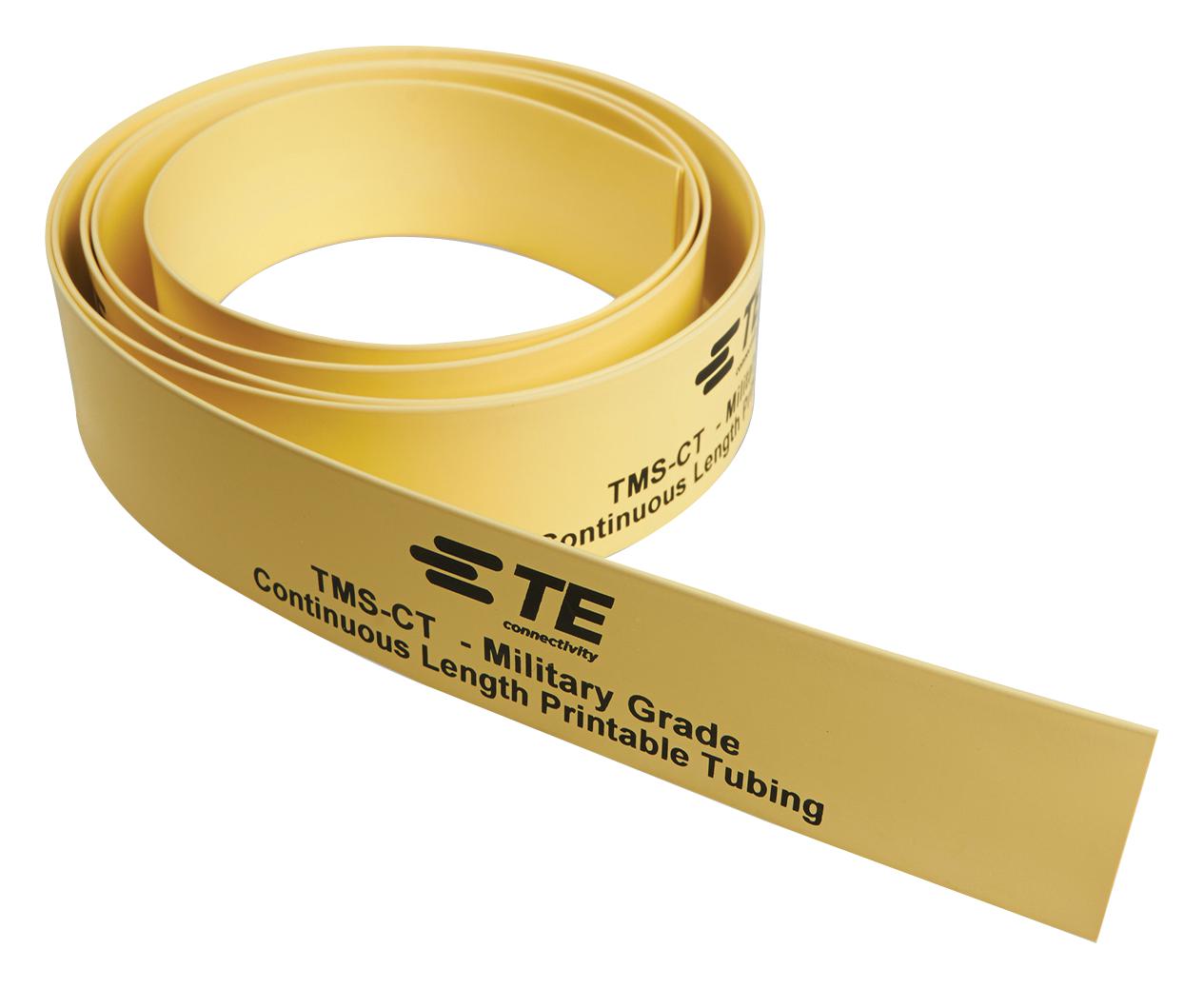

Raychem TE Connectivity TMSCT50M14OUT4 Heat Shrink Identification Sleeving
The TMS-CT series is a military-grade, heat shrink identification marker sleeving designed for wire and cable identification. Made from durable, flame-retardant polyolefin, this heat shrinkable marker offers high performance features suitable for aerospace, military, industrial, transportation, and energy applications. It is self-extinguishing with non-flame propagating properties, resistant to key military and aerospace fluids (per RW-2511), and can be laser marked for enhanced performance. The marker is ideal for pre-termination cable identification, with a thin wall, lightweight construction, and a 3:1 shrink ratio for quick recovery. Its more open profile facilitates easier installation. The spool length is 50 meters (160 feet), designed to fit outside printers, and operates within a temperature range of -55°C to +135°C.
Raychem TE Connectivity TMSCT50M14OUT4 Heat Shrink Identification Sleeving Specifications:
- Material: Cross-linked polyolefin
- Shrink Ratio: 3:1 (except 38.1 and 50.8mm which are 2:1)
- Diameter Range: 2.4mm to 50.8mm (0.094 inch to 2.00 inch)
- Maximum Inside Diameter After Recovery: 8mm to 50.8mm (0.33 inch to 2.00 inch)
- Temperature Rating: -55°C to +135°C (-67°F to 275°F)
- Flame Resistance: Self-extinguishing, non-flame propagating
- Fluids Resistance: Resists key military and aerospace fluids per RW-2511
- Compliance: Meets SAE-AMS-23053/5 Class 1, UL, CSA, EN45545-2, NFPA 130, Federal Railroad FRA
- Spool Length: 50 meters (164 feet)
- Outside Diameter: 2.4mm to 50.8mm (0.094 inch to 2.00 inch)
- Shelf Life: Refer to TE document 408-121006
- Printer Compatibility: For outside printer use (recommend TE Connectivity printers and ribbons)
Buy the Buy TE Connectivity TMS-CT Part Number TMSCT50M14OUT4 Online
Purchase the TE Connectivity heat shrink identification marker sleeving online for quick, reliable wire and cable identification. This military-grade, flame-retardant, laser-markable polyolefin sleeve offers excellent chemical and fluid resistance, conforming to industry standards such as SAE-AMS-23053/5. Its 50-meter spool contains durable, lightweight, and easy-to-install sleeves with a 3:1 or 2:1 shrink ratio, suitable for aerospace, military, industrial, and transportation applications. Compatible with specific printers and software, it ensures high-quality, long-lasting marking solutions in harsh environments with temperature resistance from -55°C to +135°C.
Order your TE Connectivity Series TMS-CT TMSCT50M14OUT4 today and ensure reliable, military-grade cable identification for your aerospace and industrial projects.
