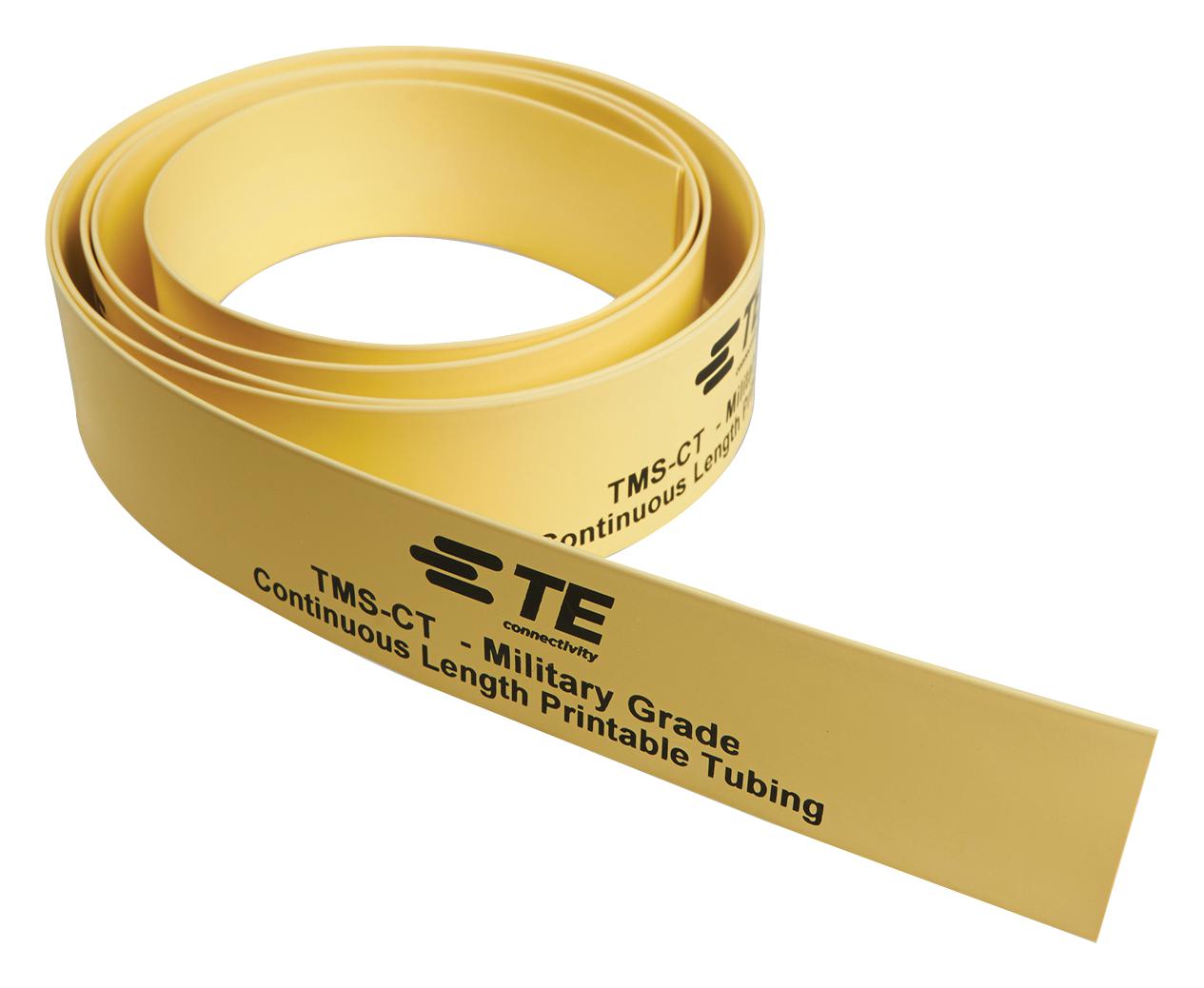

Raychem TE Connectivity TMSCT50M18OUT9 Heat Shrink Identification Sleeve
The TMS-CT series is a military-grade, heat shrink identification marker sleeving designed for the identification of wires and cables. Made from durable, flame-retardant polyolefin, this heat shrinkable wire marker meets high-performance requirements and is suitable for a wide range of applications including aerospace, military, industrial, transportation, and energy sectors. It is self-extinguishing and non-flame propagating, resistant to key military and aerospace fluids (as defined by RW-2511), and can be laser marked for enhanced readability. The product offers pre-termination cable identification with a thin wall, lightweight design, and a fast 3:1 shrink ratio. Its more open profile allows for easier installation. Supplied on a 50-meter (160-foot) spool, which fits outside printers, it operates effectively within a temperature range of -55°C to +135°C.
Raychem TE Connectivity TMSCT50M18OUT9 Heat Shrink Identification Sleeve Specifications:
- Material: Cross-linked polyolefin
- Flame Retardant: Yes
- Self-extinguishing: Yes
- Resistance: Aerospace and military fluids (RW-2511)
- Shrink Ratio: 3:1 (except 1.5 and 2 inch which are 2:1)
- Temperature Range: -55°C to +135°C
- Inside Diameter (Expanded): from 2.4mm (0.094 inch) to 50.8mm (2 inch)
- Maximum Recovery Diameter: from 0.90mm (0.035 inch) to 25.5mm (1.00 inch)
- Spool Length: 50 meters (164 feet)
- Color Options: Yellow, White, Brown, Red, Orange, Green, Blue, Violet, Grey, Black
- Printer Compatibility: External printers recommended for full functionality
- Compliance: SAE-AMS-23053/5, RoHS, REACH, UL Listed, CSA Standard C22.2 No 198.1
- Operating Temperature: -55°C to +135°C
- Application Sectors: Aerospace, military, industrial, transport, energy
Buy the TE Connectivity Series TMSCT50M18OUT9 Heat Shrink Sleeve: TMSCT50M18OUT9
Enhance your wiring and cable management with TE Connectivity's TMS-CT heat shrink identification sleeves. Designed for military and industrial use, these sleeves provide flame retardant, self-extinguishing protection resistant to aerospace fluids. Their fast-recovery 3:1 shrink ratio allows quick installation on wires from 2.4mm to 50.8mm diameter, ideal for aerospace, military, and industrial sectors. Supplied on a 50-meter spool, they are compatible with external printers for custom marking. Operate safely across a temperature range of -55°C to +135°C, ensuring reliable, long-lasting identification in demanding environments.
Get TE Connectivity TMS-CT today—built for durability and precision cable identification in demanding environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity TMSCT50M18OUT9?
You can click on the BUY or RFQ button to purchase TMSCT50M18OUT9 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part TMSCT50M18OUT9?
You can download the TMSCT50M18OUT9 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of TMSCT50M18OUT9?
Raychem TE Connectivity
