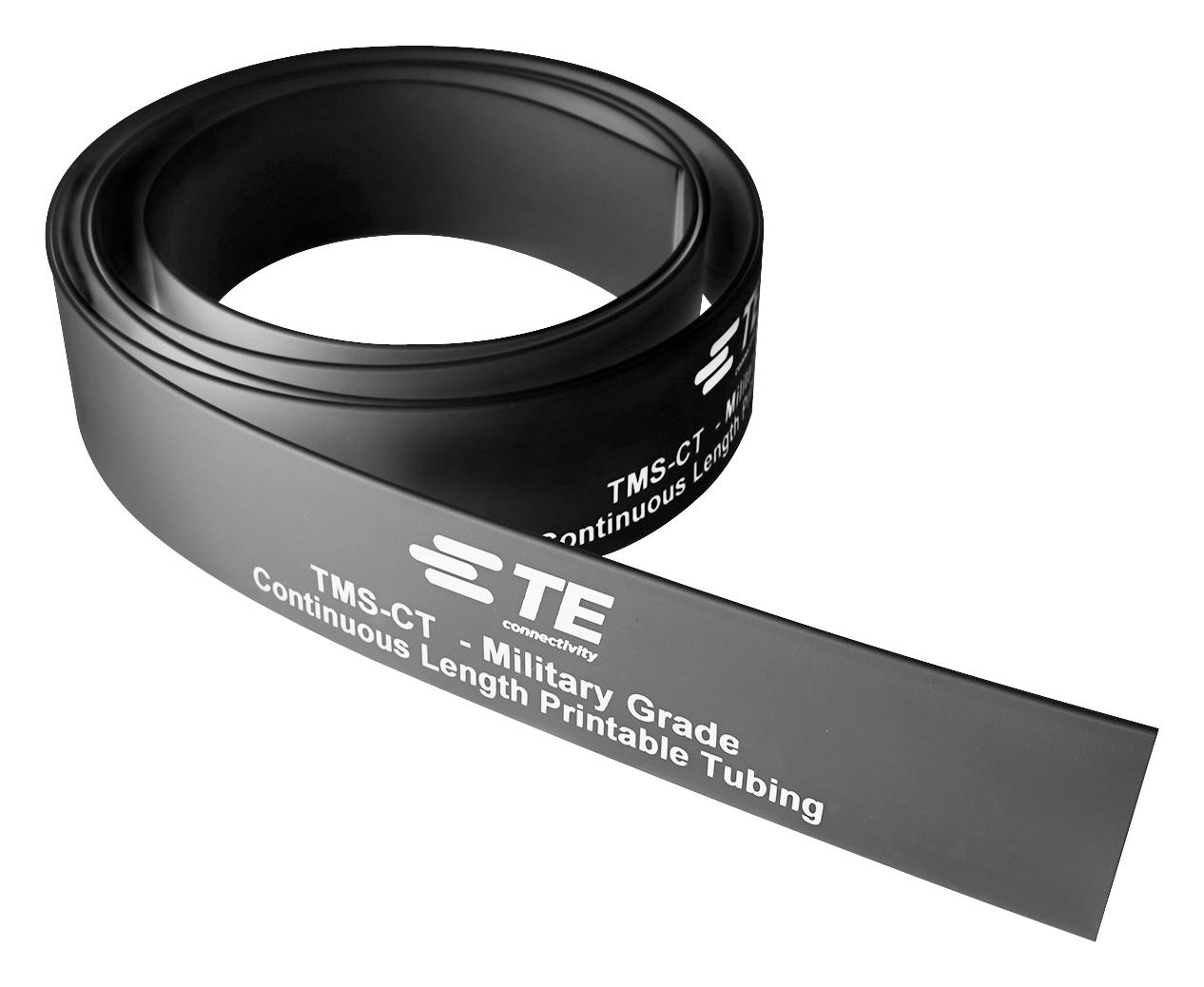

Raychem TE Connectivity TMSCT50M1OUT0 Heat Shrink Identification Sleeve
The TMS-CT Military Grade Heat Shrink Identification Sleeve is a durable, flame-retarded, radiation cross-linked polyolefin tubing designed for wire and cable identification. It features a 3:1 shrink ratio for easy application, covering a wide range of cable diameters from 2.4mm to 50.8mm, with some sizes at 2:1 shrink. The sleeves are resistant to key military and aerospace fluids, flame-retardant, and meet industry standards like SAE-AMS-DTL-23053/5 Class 1. Suitable for aerospace, military, industrial, transport, and energy applications, they can be laser marked for enhanced performance.
Raychem TE Connectivity TMSCT50M1OUT0 Heat Shrink Identification Sleeve Specifications:
- Material: Cross-linked polyolefin
- Shrink Ratio: 3:1 (except sizes 38.1mm and 50.8mm which are 2:1)
- Temperature Rating: -55°C to 135°C (-67°F to 275°F)
- Inside Diameter (Expanded): 2.4 mm to 50.8 mm (0.094 to 2.00 inches)
- Maximum Inside Diameter After Recovery: 0.090 inches to 2.00 inches
- Flammability: Self-extinguishing, UL 94V-0 compliant
- Certification: SAE-AMS-23053/5 Class 1, RoHS, REACH compliant
- Resistant to: Aerospace and military fluids
- Suitable for: Wire and cable identification, pre-termination
- Application: Aerospace, military, industrial, transport, energy
Buy the Buy TE Connectivity TMS-CT Part Number TMSCT50M1OUT0 Online
Order the TE Connectivity TMS-CT Heat Shrink Identification Sleeve online today to ensure reliable wire and cable identification in aerospace, military, and industrial applications. Made from flame-retardant, radiation cross-linked polyolefin, it offers a 3:1 shrink ratio, covering a wide diameter range from 2.4mm to 50.8mm. The sleeve is resistant to key aerospace and military fluids, meets industry standards like SAE-AMS-DTL-23053/5 Class 1, and can be laser marked for enhanced readability. Fast, easy to install and highly durable, it's the ideal solution for demanding environments.
Get TE Connectivity TMS-CT heat shrink identification sleeve today—built for precise wire marking and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity TMSCT50M1OUT0?
You can click on the BUY or RFQ button to purchase TMSCT50M1OUT0 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part TMSCT50M1OUT0?
You can download the TMSCT50M1OUT0 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of TMSCT50M1OUT0?
Raychem TE Connectivity
