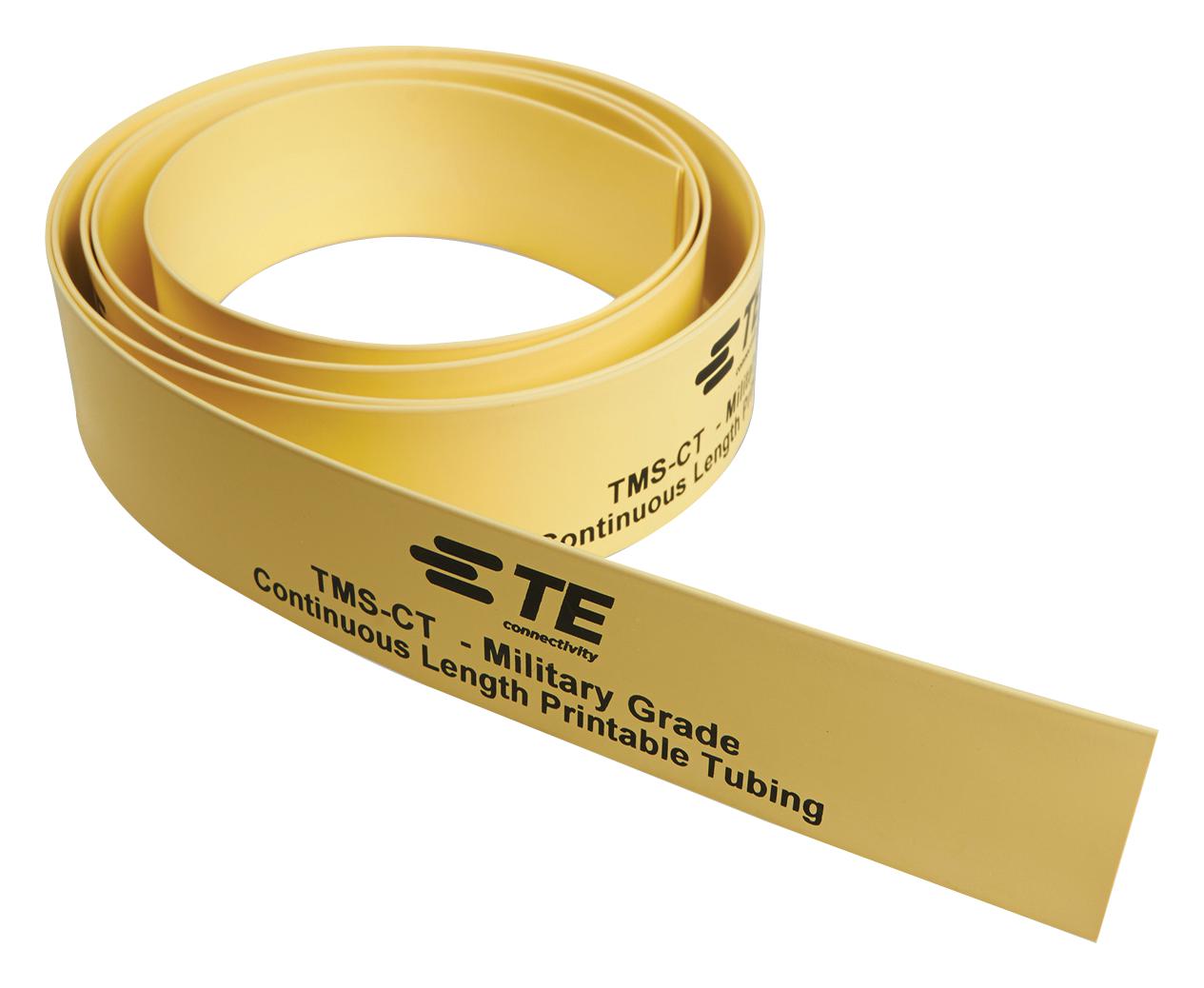

Raychem TE Connectivity TMSCT50M2OUT9 Heat Shrink Identification Sleeve
The TMS-CT series is a military-grade, heat-shrink identification sleeve designed for wire and cable marking. Made from durable, flame-retardant polyolefin, this heat-shrinkable marker offers high performance for demanding applications. It is suitable for use in aerospace, military, industrial, transportation, and energy sectors. Features include self-extinguishing and non-flame propagating properties, resistance to key military and aerospace fluids (per RW-2511), laser marking capability for improved visibility, and pre-termination cable identification. The sleeve has a thin wall, lightweight design with a fast 3:1 or 2:1 shrink ratio, depending on size, and an open profile for ease of use. Each spool contains 50 meters (160 feet) of sleeving and fits outside printers. Operating temperature ranges from -55°C to +135°C.
Raychem TE Connectivity TMSCT50M2OUT9 Heat Shrink Identification Sleeve Specifications:
- Material: Crosslinked polyolefin, flame retardant
- Shrink Ratio: 3:1 (except 38.1mm and 50.8mm which are 2:1)
- Inside Diameter: Ranges from 2.4mm to 50.8mm (0.094 inch to 2.00 inch)
- Operating Temperature: -55°C to +135°C (-67°F to 275°F)
- Flammability: Self-extinguishing, non-flame propagating
- Compliance: meets SAE-AMS-23053/5 Class 1, RoHS, REACH, UL and industry standards
- Shelf Life: Refer to TE document 408-121006
- Spool Length: 50 meters (164 feet)
- Color Options: Yellow, White, Brown, Red, Orange, Green, Blue, Violet, Grey, Black
- Application: Wire and cable identification, aerospace, military, industrial environments
Buy the TE Connectivity TMS-CT – Reliable Heat Shrink Identification for Industrial Applications
Upgrade your wiring projects with the TMS-CT heat shrink identification sleeves. Designed for demanding environments, these sleeves are flame-retardant, resistant to fluids, and laser markable, ensuring clear, durable wire and cable identification. With sizes ranging from 2.4mm to 50.8mm and a fast 3:1 or 2:1 shrink ratio, they provide excellent flexibility and reliability. Easy to install, lightweight, and compliant with industry standards, order online now to improve your cable management system efficiently and securely.
Order your TE Connectivity Series TMS-CT heat shrink identification sleeves today and enhance your wire marking with durable, flame-retardant performance.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity TMSCT50M2OUT9?
You can click on the BUY or RFQ button to purchase TMSCT50M2OUT9 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part TMSCT50M2OUT9?
You can download the TMSCT50M2OUT9 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of TMSCT50M2OUT9?
Raychem TE Connectivity
