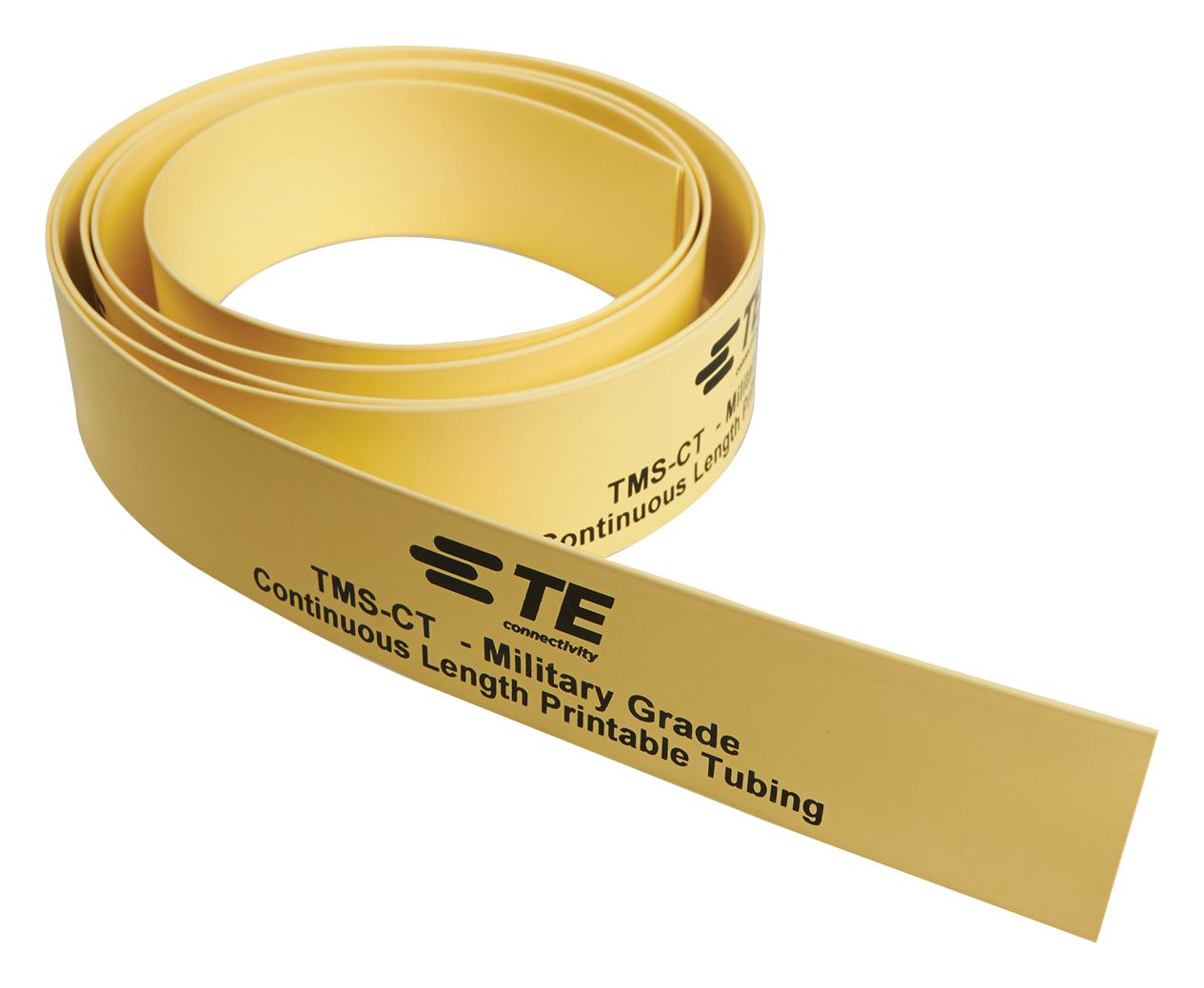

Raychem TE Connectivity TMSCT50M316OUT9 Heat Shrink Identification Sleeve
The TMS-CT series is a military-grade, heat-shrink identification marker sleeving designed for the clear identification of wires and cables. Made from durable, flame-retardant polyolefin, this heat-shrinkable wire marker is suitable for demanding applications in aerospace, military, industrial, transportation, and energy sectors. It features self-extinguishing, non-flame propagating properties and resistance to key military and aerospace fluids (per RW-2511). The markers can be laser marked for enhanced readability and are ideal for pre-termination cable identification. With a thin wall, lightweight design, and a 3:1 shrink ratio for fast recovery, the sleeving provides an open profile for easier application. Each spool contains 50 meters (approximately 160 feet) of sleeving, compatible with outside printers. The operating temperature ranges from -55°C to +135°C.
Raychem TE Connectivity TMSCT50M316OUT9 Heat Shrink Identification Sleeve Specifications:
- Material: Flame-retardant, radiation cross-linked polyolefin
- Shrink Ratio: 3:1 (except 1.5 and 2 inch which are 2:1)
- Diameter Range: 2.4mm to 50.8mm (0.094 to 2.00 inches)
- Operating Temperature: -55°C to +135°C
- Flammability: Self-extinguishing, non-flame propagating
- Resistance: To military and aerospace fluids (RW-2511 compliant)
- Length: 50 meters (approximately 164 feet) per spool
- Color options: Yellow, White, Brown, Red, Orange, Green, Blue, Violet, Grey, Black
- Applicable Standards: SAE-AMS-23053/5, EN45545-2, NFPA 130, Federal Railroad FRA, CSA C22.2 No 198.1, UL certification
- Application: Pre-termination cable identification, laser marker compatible, suitable for aerospace, military, industrial, transportation, and energy sectors.
Buy the TE Connectivity Series TMS-CT Heat Shrink Identification Sleeving: TMSCT50M316OUT9
Order the TE Connectivity TMS-CT50M316OUT9 military-grade heat-shrink identification sleeve online today to ensure reliable wire and cable identification in aerospace, military, industrial, transportation, and energy projects. This flame-retardant, radiation cross-linked polyolefin sleeve offers excellent resistance to fluids, supports laser marking for improved readability, and features a fast 3:1 shrink ratio for quick application. Each 50-meter spool guarantees a durable, lightweight, and flexible solution suitable for demanding environments with temperature ratings from -55°C to +135°C. Enhance your cable management now.
Buy TE Connectivity TMS-CT50M316OUT9 now and experience unmatched durability, flame resistance, and optimal wire identification for demanding applications.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity TMSCT50M316OUT9?
You can click on the BUY or RFQ button to purchase TMSCT50M316OUT9 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part TMSCT50M316OUT9?
You can download the TMSCT50M316OUT9 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of TMSCT50M316OUT9?
Raychem TE Connectivity
