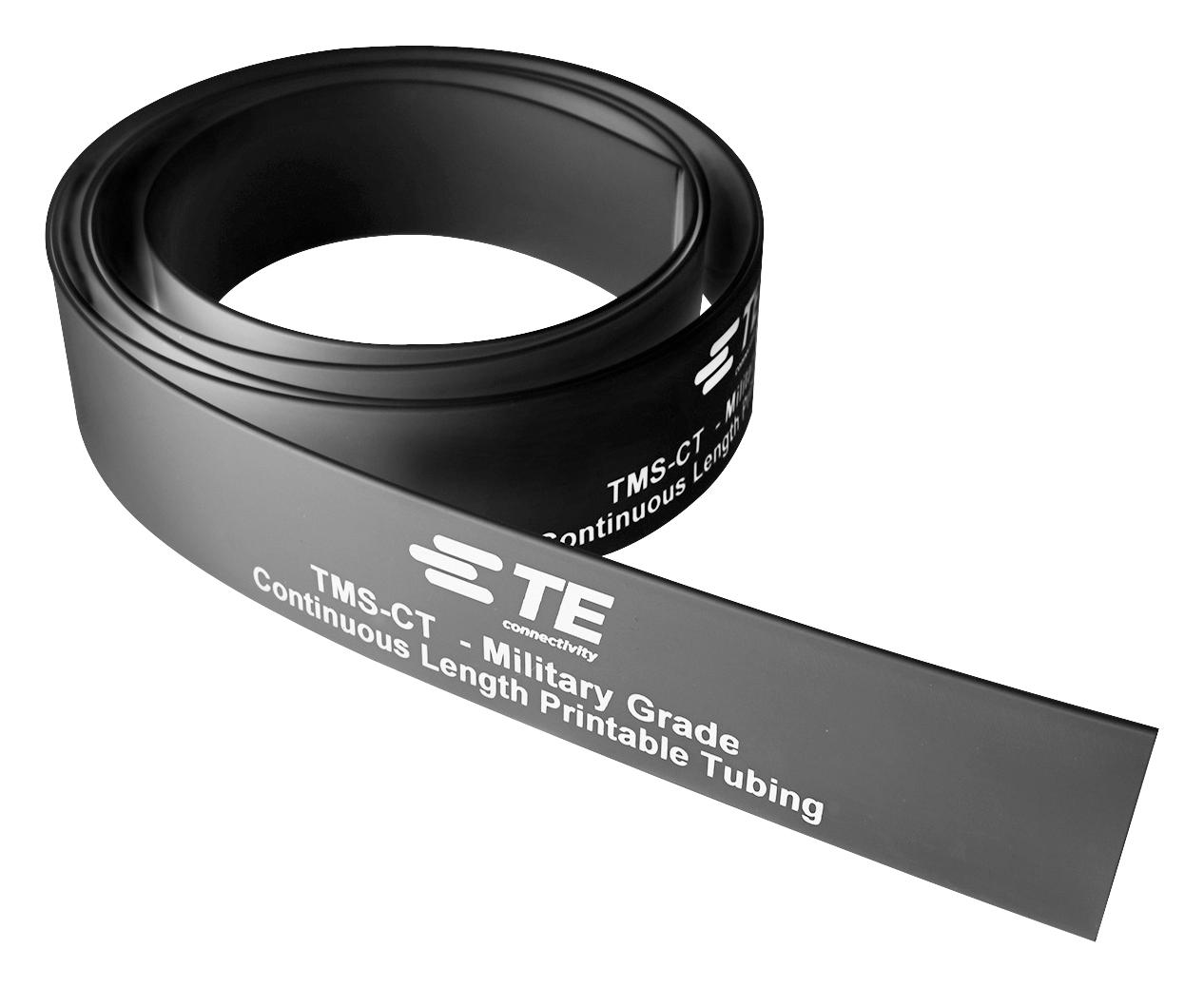

Raychem TE Connectivity TMSCT50M332OUT0 Heat Shrink Identification Sleeve
TMS-CT Military Grade Heat Shrink Identification Sleeve offers reliable wire and cable identification with a 3:1 shrink ratio, suitable for aerospace, military, and industrial applications. Made from flame-retarded, radiation cross-linked polyolefin, it is self-extinguishing and resistant to chemicals and fluids, meeting industry standards such as SAE-AMS-DTL-23053/5 and MIL 202 Method 215. The thin-wall, lightweight design facilitates easy application across a broad range of cable diameters from 2.4mm to 50.8mm, with extended shelf life and high-performance properties including laser marking capabilities and compliance with fire safety regulations.
Raychem TE Connectivity TMSCT50M332OUT0 Heat Shrink Identification Sleeve Specifications:
- Material: Cross-linked polyolefin
- Shrink Ratio: 3:1 (except 38.1 and 50.8mm which are 2:1)
- Inside Diameter: 2.4mm to 50.8mm (0.094 to 2.00 inches) before recovery
- Maximum Inside Diameter After Recovery: 4.41mm to 50.8mm (0.04 to 2.00 inches)
- Temperature Rating: -55°C to 135°C (-67°F to 275°F)
- Flammability: Self-extinguishing, complies with UL 94V-0
- Industry Standards: SAE-AMS-DTL-23053/5, EN45545-2, NFPA 130, Federal Railroad FRA, CSA C22.2 No 198.1
- Chemical Resistance: Resistant to key fluids and aerospace/railway chemicals
- Certifications: UL Listed, CSA Certified
- Color: Multiple pastel shades including Yellow, White, Brown, Red, Orange, Green, Blue, Violet, Grey, Black
- Spool Length: 50 meters (164 feet)
Buy the Buy TE Connectivity TMS-CT Part Number TMSCT50M332OUT0 Online
Order TE Connectivity's heat shrink identification sleeve today to ensure reliable wire and cable marking for aerospace, military, and industrial applications. Made from cross-linked polyolefin, it offers a 3:1 shrink ratio, adjustable diameters from 2.4mm to 50.8mm, and high flame-retardant properties meeting industry standards. Its lightweight, thin-wall construction facilitates easy installation and laser marking. Perfect for aerospace, railway, and energy sectors, this durable sleeve enhances safety, compliance, and ease of use. Buy online now for quality and dependable performance.
Get TE Connectivity TMS-CT TMSCT50M332OUT0 today—designed for high-performance cable identification and long-lasting durability.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity TMSCT50M332OUT0?
You can click on the BUY or RFQ button to purchase TMSCT50M332OUT0 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part TMSCT50M332OUT0?
You can download the TMSCT50M332OUT0 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of TMSCT50M332OUT0?
Raychem TE Connectivity
