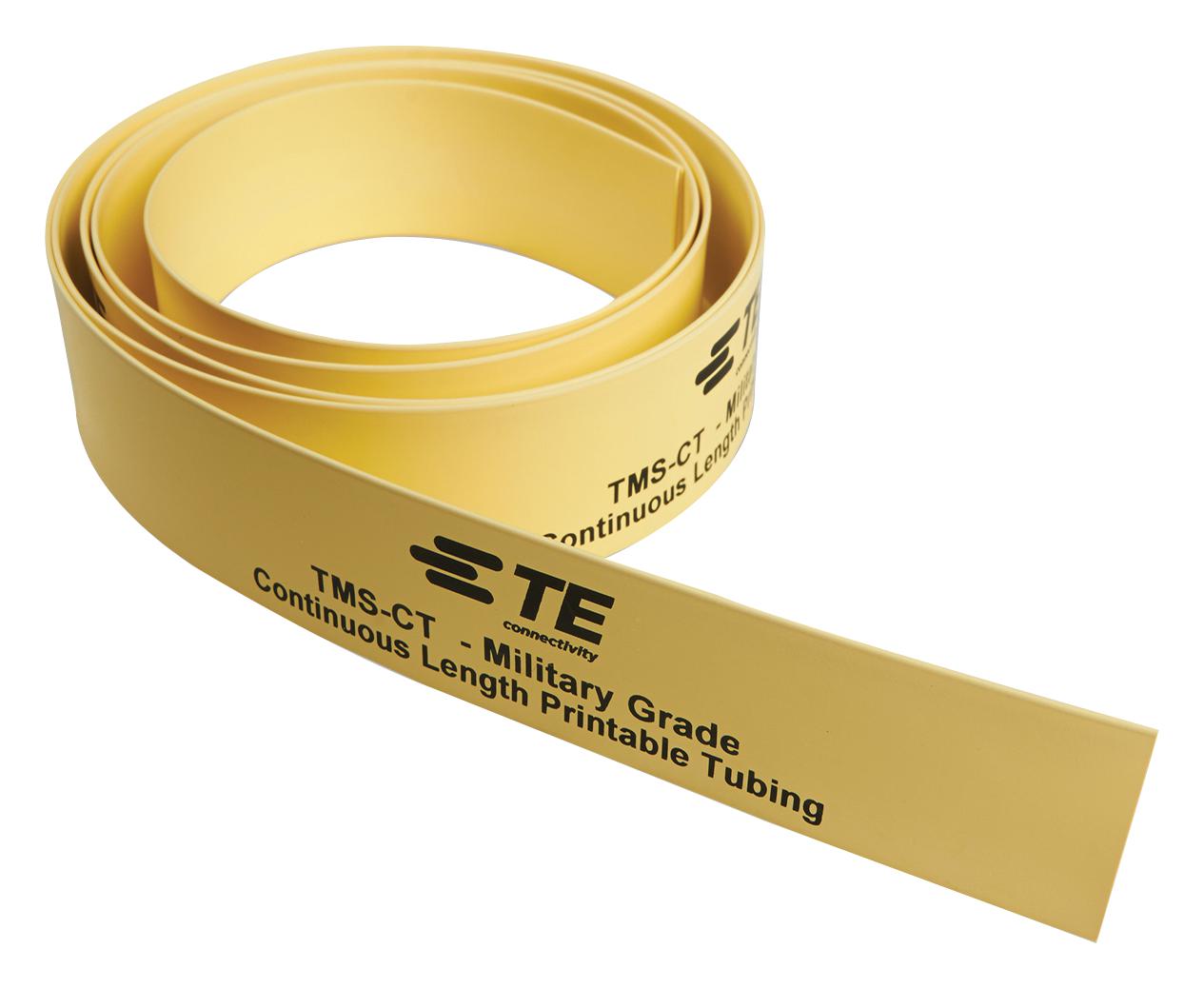

Raychem TE Connectivity TMSCT50M34OUT4 Heat Shrink Marker
The TMS-CT series is a military-grade heat shrink identification marker sleeving designed for the identification of wires and cables. Made from durable, flame-retardant polyolefin, this heat shrinkable wire marker provides high performance for demanding applications. It is suitable for aerospace, military, industrial, transportation, and energy sectors. Features include self-extinguishing and non-flame propagating properties, resistance to key military and aerospace fluids (per RW-2511), laser markability for enhanced readability, pre-termination cable identification, a thin wall and lightweight design with a fast 3:1 shrink ratio, and an open profile for ease of use. The spool contains 50 meters (160 feet) of sleeving, compatible with outside printers, and operates within a temperature range of -55°C to +135°C.
Raychem TE Connectivity TMSCT50M34OUT4 Heat Shrink Marker Specifications:
- Material: Flame-retardant, radiation cross linked polyolefin
- Shrink Ratio: 3:1 (except 38.1 and 50.8mm which are 2:1)
- Operating Temperature: -55°C to +135°C
- Sleeve Length: 50 meters (160 feet)
- Inside Diameter: from 2.4mm to 50.8mm (0.094 to 2 inches) before recovery
- Maximum Recovery Diameter: up to 50.8mm (2 inches)
- Flame Resistance: Self-extinguishing, complies with UL 94V-0
- Fluid Resistance: Resistant to military and aerospace fluids per RW-2511
- Certification: MIL-STD-23053/5 Class 1, UL listed, RoHS compliant
- Color: Standard yellow, white, with other colors available on request
- Application: Suitable for aerospace, military, industrial, transportation, and energy wiring
- Compatibility: Works with specific TE Identification Printer and ribbons as per TE documentation
Buy the Buy TE Connectivity TMS-CT Part Number TMSCT50M34OUT4 Online
Purchase the TE Connectivity TMS-CT heat shrink identification marker online today. Perfect for aerospace, military, industrial, and transportation wiring. Durable, flame-retardant polyolefin with a 3:1 shrink ratio, operates from -55°C to 135°C. The 50-meter spool offers easy application with pre-termination cable identification, laser markability, and resistance to fluids. Compatible with TE printers, this lightweight sleeve ensures clear, reliable wire and cable identification, meeting strict industry standards for safety and performance.
Order your TE Connectivity TMS-CT heat shrink identification marker today and ensure durable, reliable cable identification in demanding environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity TMSCT50M34OUT4?
You can click on the BUY or RFQ button to purchase TMSCT50M34OUT4 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part TMSCT50M34OUT4?
You can download the TMSCT50M34OUT4 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of TMSCT50M34OUT4?
Raychem TE Connectivity
