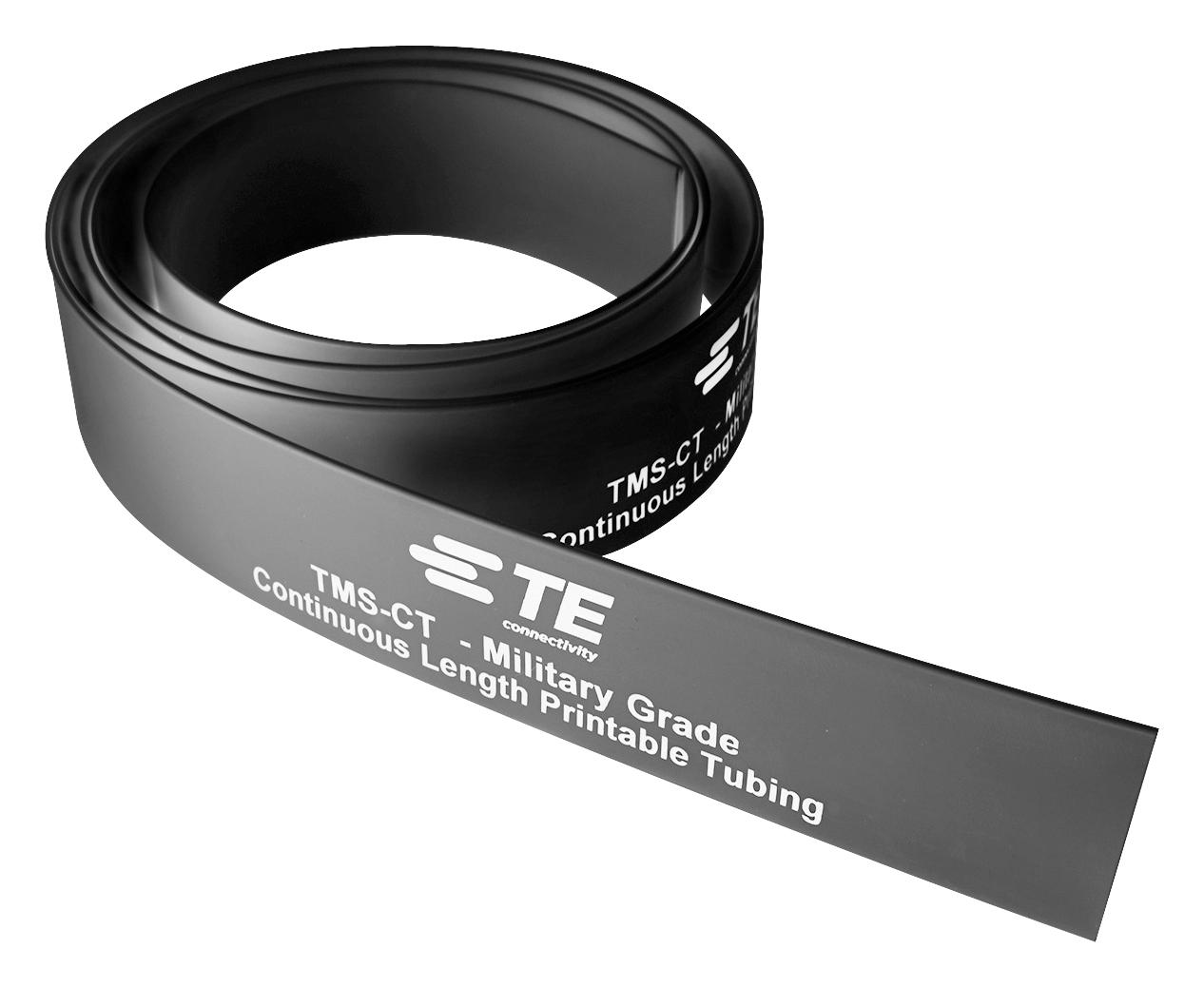

Raychem TE Connectivity TMSCT50M38OUT0 Heat Shrink Identification Sleeve
TMS-CT is a military-grade heat shrink identification marker sleeve made from durable, flame-retarded, radiation cross-linked polyolefin. It features a thin wall, lightweight design, and a 3:1 shrink ratio (except sizes 38.1mm and 50.8mm which are 2:1), providing fast recovery for easy application. Suitable for aerospace, military, industrial, transport, and energy sectors, it meets industry standards including SAE-AMS-23053/5 and UL certification. Its self-extinguishing, flame-retardant properties ensure high safety and performance in demanding environments.
Raychem TE Connectivity TMSCT50M38OUT0 Heat Shrink Identification Sleeve Specifications:
- Material: Cross-linked polyolefin
- Flammability: Self-extinguishing, flame-retardant
- Temperature Rating: -55°C to 135°C
- Shrink Ratio: 3:1 (except 38.1mm and 50.8mm sizes which are 2:1)
- Inside Diameter (Before Recovery): 2.4mm to 50.8mm
- Inside Diameter (After Recovery): 0.08mm to 1.6mm
- Length: 50 meters spool
- Color Options: Standard Yellow, White, other colors available on request
- Certifications: SAE-AMS-23053/5, UL, CSA, EN45545-2, NFPA 130, DOT
- Application: Wire and cable identification, military, aerospace, industrial, transport
Buy the TE Connectivity TMS-CT Reliable Heat Shrink Identification Sleeving for Industrial Applications
Order TE Connectivity TMS-CT heat shrink identification sleeves online today to secure reliable wire and cable marking solutions. Engineered with military-grade materials, these flame-retardant, radiation cross-linked polyolefin sleeves offer quick recovery and a wide diameter range, ideal for aerospace, military, industrial, and energy applications. Compatible with specific printers and ribbons, they adhere to industry standards such as SAE-AMS-23053/5 and UL certification. Enhance your cable management with high-performance sleeves designed for safety, durability, and easy installation.
Buy TE Connectivity TMS-CT heat shrink identification sleeve now and experience unmatched durability, safety, and performance in demanding industry environments.
