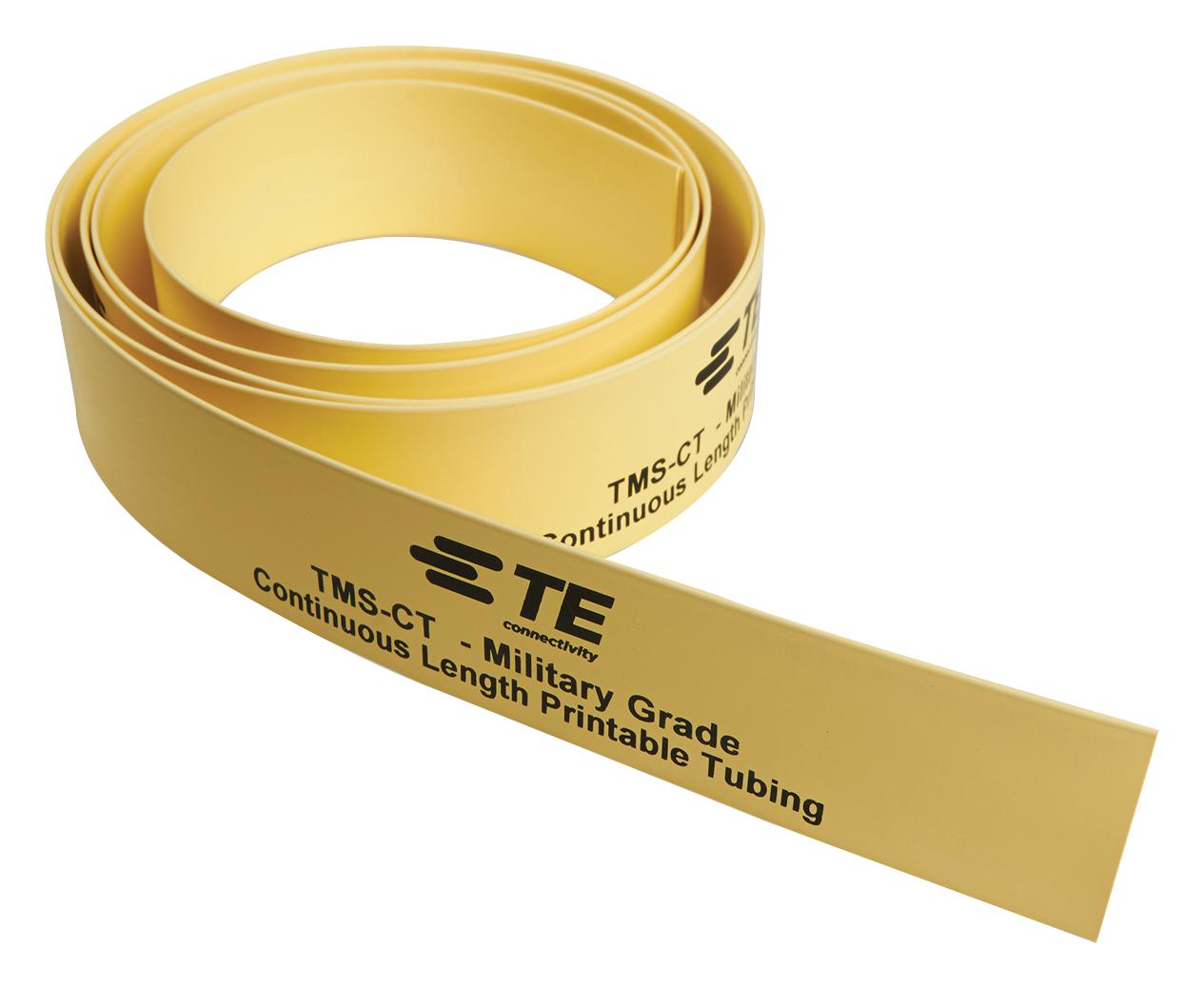

Raychem TE Connectivity TMSCT50M38OUT9 Heat Shrink Identification Sleeve
The TMS-CT series is a military-grade, heat shrink identification marker sleeving designed for the identification of wires and cables. Made from durable, flame-retardant polyolefin, this heat-shrinkable wire marker meets high-performance requirements and is suitable for aerospace, military, industrial, transportation, and energy applications. It features self-extinguishing, non-flame propagating properties, resistance to key military and aerospace fluids (as defined by RW-2511), and can be laser marked for enhanced performance. The product allows pre-termination cable identification with a thin wall, lightweight construction, and a fast 3:1 shrink ratio. Its more open profile facilitates easier handling. Each spool contains 50 meters (160 feet) of sleeving, which fits outside printers and operates within a temperature range of -55°C to +135°C.
Raychem TE Connectivity TMSCT50M38OUT9 Heat Shrink Identification Sleeve Specifications:
- Material: Flame retarded, radiation cross-linked polyolefin
- Shrink Ratio: 3:1 (except 38.1 and 50.8mm which are 2:1)
- Inside Diameter: From 2.4mm to 50.8mm (0.094 to 2.00 inches)
- Maximum Recovery Diameter: 0.90mm to 25.5mm (0.035 to 1.00 inches)
- Temperature Range: -55°C to +135°C (-67°F to 275°F)
- Length per spool: 50 meters (164 feet)
- Resistance: Flame retardant, resistant to military and aerospace fluids
- Compliance: Meets SAE-AMS-23053/5 Class 1, RoHS, REACH
- Fire Standards: EN45545-2, NFPA 130, Federal Railroad DOT, Railway Classification
- Certifications: UL, CSA, and military standards compliance
Buy the TE Connectivity TMS-CT Series Heat Shrink Identification Sleeve Part Number TMSCT50M38OUT9
Order the TE Connectivity TMS-CT heat shrink identification sleeve online today to ensure reliable wire and cable identification in demanding environments. Made from durable, flame-retardant polyolefin, this military-grade sleeving offers rapid 3:1 shrinkage, resistance to aerospace fluids, and is laser markable for enhanced readability. Its lightweight, open profile simplifies handling and installation. Each 50-meter spool provides excellent value, suitable for aerospace, military, industrial, and transportation applications, and operates over a temperature range of -55°C to +135°C, ensuring performance in critical conditions.
Buy TE Connectivity TMS-CT heat shrink identification sleeving now and experience unmatched durability, high-performance, and industry compliance for wire and cable marking.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity TMSCT50M38OUT9?
You can click on the BUY or RFQ button to purchase TMSCT50M38OUT9 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part TMSCT50M38OUT9?
You can download the TMSCT50M38OUT9 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of TMSCT50M38OUT9?
Raychem TE Connectivity
