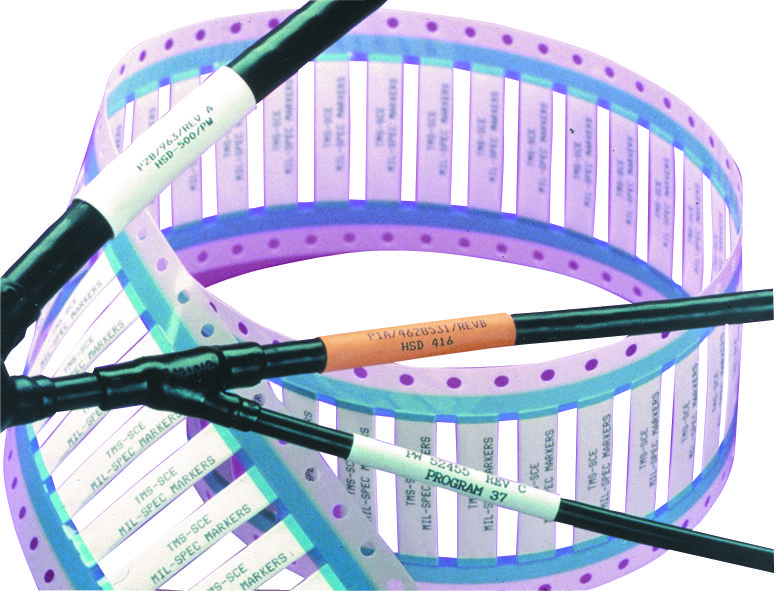

Raychem TE Connectivity TMSSCE1209 Heat Shrink Cable Marker
This military-grade heat-shrinkable wire identification sleeve is crafted from durable, flame-retardant, radiation cross-linked polyolefin material. Designed to meet high-performance requirements, it features a 3:1 shrink ratio for rapid thermal contraction and provides a wide range of wire diameter coverage, simplifying inventory management. The sleeve is printable via dot matrix or thermal transfer printers, producing permanent, legible markings that resist abrasion, cleaning solvents, military fuels, and oils. Suitable for defense, military, aerospace, and computer applications.
Raychem TE Connectivity TMSSCE1209 Heat Shrink Cable Marker Specifications:
- Material: radiation cross-linked polyolefin
- Flammability: UL 94V-0
- Temperature Rating: -85°C to +135°C
- Minimum Recovery Temperature: +85°C
- Maximum Storage Temperature: +40°C
- Shrink Ratios: 2:1 and 3:1
- Sleeve Diameter: 2.36 mm (0.093 inches) to 50.80 mm (2.000 inches)
- Wall Thickness: 0.032-0.075 inches (varies by size)
- Operating Temperature Range: -85°C to +135°C
- Color options: White, Yellow, and others
- CSA Certified, UL Recognized, MIL-STD-202, SAE-AMS-DTL-23053/5
- Printer Compatibility: Dot matrix and thermal transfer printers
- Certifications: CSA, UL Recognized
Buy the Tyco Series SCE Military Heat Shrinkable Wire Identification Sleeves: TMSSCE1209
Purchase the Tyco Series SCE TMSSCE1209 heat shrinkable cable marker sleeves online today to ensure high-quality, durable, and easy-to-apply wire identification solutions. With certifications like CSA and UL recognition, these sleeves are ideal for defense, aerospace, and industrial applications. Their rapid shrinking ratio and permanent, abrasion-resistant markings make them perfect for demanding environments. Simplify your inventory management and minimize errors by ordering now and benefit from fast delivery and technical support for reliable, military-grade wire identification.
Order your Tyco Series SCE TMSSCE1209 today and equip your projects with reliable, military-grade wire identification sleeves designed for durability and performance.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity TMSSCE1209?
You can click on the BUY or RFQ button to purchase TMSSCE1209 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part TMSSCE1209?
You can download the TMSSCE1209 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of TMSSCE1209?
Raychem TE Connectivity
