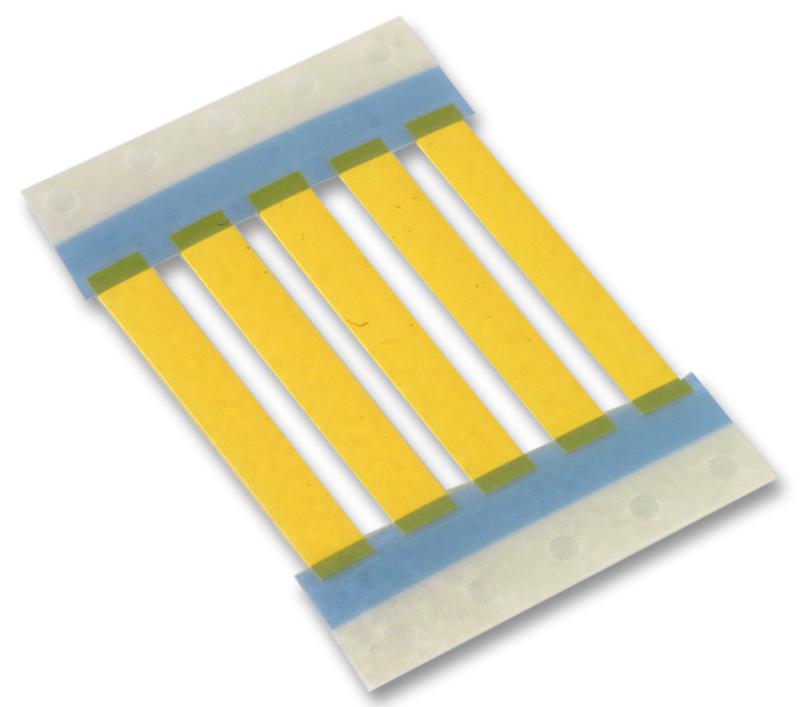

Raychem TE Connectivity TMSSCE12204 Heat Shrink Cable Marker
The TMS-SCE series offers military-grade heat shrinkable wire identification sleeves made from durable, flame-retardant, radiation cross-linked polyolefin, ensuring permanent, legible markings. Suitable for high-performance applications, these sleeves can be precisely printed via dot matrix or thermal transfer printers, reducing errors and cycle times. Designed to meet military specifications, they are lightweight yet rugged, ideal for aerospace, defense, and military uses. They recover quickly in heat-sensitive zones, with proven flame, flammability, and print endurance, making them a reliable choice for complex wiring systems.
Raychem TE Connectivity TMSSCE12204 Heat Shrink Cable Marker Specifications:
- Material: Radiation-crosslinked polyolefin
- Temperature Range: -55°C to +135°C
- Recovery Temperature: Minimum 485°C (186°F)
- Shrink Ratios: 2:1 and 3:1
- Glow Wire UL Recognized, CSA Certified
- Flame Retardant: Meets VW all flame tubing test
- Printing Compatibility: Dot matrix and thermal transfer printers
- Color Options: Various colors (Yellow, White, Red, Pink, Orange, Green, Blue, Violet, Gray, Black)
- Sleeve Length: 2.0 inches (nominal), other sizes available
- Inside Diameter: Ranges from 0.031 inches to over 0.750 inches
- Supply Format: Flat ladder, held between two hole-punched polyester strips
- Shelf Life: Stable under recommended storage conditions
- Certifications/Standards: SAE-AMS-DTL-23053/5, SAE AS81531 4.6.2, MIL-STD-202F
Buy the Buy Tyco Electronics Heat Shrink Cable Markers Part Number TMSSCE12204 Online
Experience the superior quality of Tyco Electronics military-grade heat shrinkable wire identification sleeves. Made from flame-retardant, radiation-crosslinked polyolefin, these sleeves guarantee permanent, legible markings even after exposure to abrasion, solvents, and fuels. Suitable for aerospace, military, and industrial use, they feature quick recovery for heat-sensitive areas and meet strict military specifications. Compatible with computer-driven printers, these sleeves reduce errors, cycle time, and costs. Available in multiple sizes and colors, they provide robust, reliable cable identification for critical applications worldwide.
Buy Tyco Electronics TMSSCE12204 now and ensure reliable, permanent wire identification with military-grade heat shrink sleeves designed for aerospace and harsh environments.
