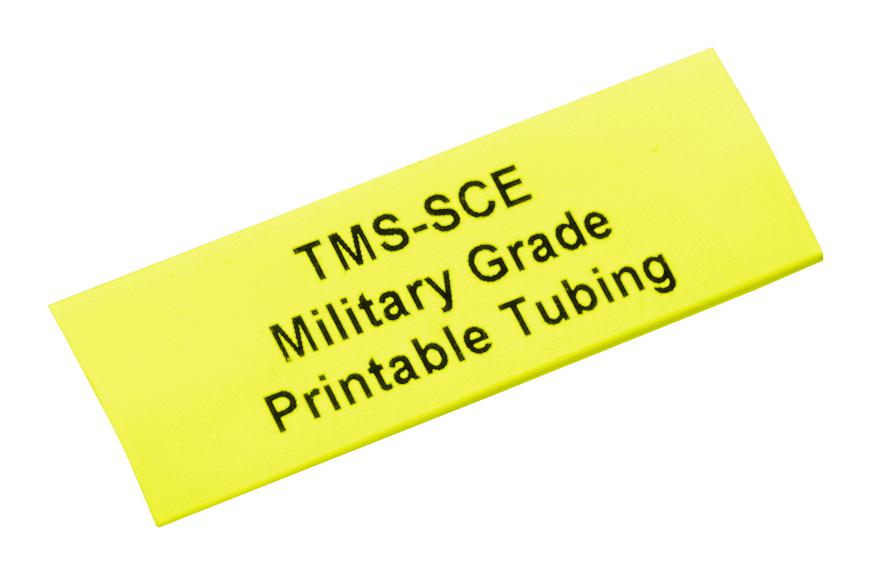

Raychem TE Connectivity TMSSCE2X1K384 Heat Shrink Identification Sleeve
TMS-SCE and TMS-SCE-2X are military-grade heat shrink identification sleeves designed for wire and cable marking across aerospace, military, industrial, and energy sectors. Made from durable, flame-retarded, radiation cross-linked polyolefin, these sleeves offer a 3:1 or 2:1 shrink ratio, facilitating quick and reliable cable identification. They meet strict industry standards such as AS5942, MIL 202 Method 215, and AMS SAE DTL 23053/5. The sleeves are available in various diameters, colors, and pack sizes, suitable for laser marking and pre-termination applications, ensuring permanent, high-quality markings under demanding conditions.
Raychem TE Connectivity TMSSCE2X1K384 Heat Shrink Identification Sleeve Specifications:
- Material: Radiation cross-linked heat shrinkable polyolefin
- Shrink Ratios: 3:1 (TMS-SCE), 2:1 (TMS-SCE-2X)
- Temperature Rating: -55°C to 135°C (-67°F to 275°F)
- Maximum Cable Diameter: up to 57.15mm (2.25 inches)
- Flame Resistance: Self-extinguishing, flame retardant
- Compliance: AS5942, MIL 202 Method 215, SAE AMS-23053/5, RoHS II, REACH
- Certifications: UL, CSA, EN45545-2, Railway fire safety standards
- Colors: Various pastel shades, White (TMS-SCE-2X only)
- Application: Aerospace, military, industrial, energy
- Shelf Life: Refer to TE documentation for specifics
- Features: Resistant to key fluids, laser marking, pre-term marking, flame retardant, durable and reliable under harsh conditions
Buy the Buy TE Connectivity TMS-SCE and TMS-SCE-2X Heat Shrink Identification Sleeves Part Number TMSSCE2X1K384 Online
Purchase the high-performance TE Connectivity heat shrink identification sleeves online today to secure reliable wire and cable marking solutions. Made from durable, flame-retardant polyolefin, these sleeves are designed for the toughest environments like aerospace and military applications. Featuring a 3:1 or 2:1 shrink ratio, they are available in various sizes and colors, including white for easy laser marking. Ensure your projects meet strict safety, flame, and flame-resistance standards. Conveniently order now for fast delivery and expert support in managing complex wiring identification needs.
Order your TE Connectivity Series TMSSCE2X1K384 heat shrink sleeves today and ensure your wire and cable identification is robust, durable, and compliant with military standards.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity TMSSCE2X1K384?
You can click on the BUY or RFQ button to purchase TMSSCE2X1K384 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part TMSSCE2X1K384?
You can download the TMSSCE2X1K384 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of TMSSCE2X1K384?
Raychem TE Connectivity
