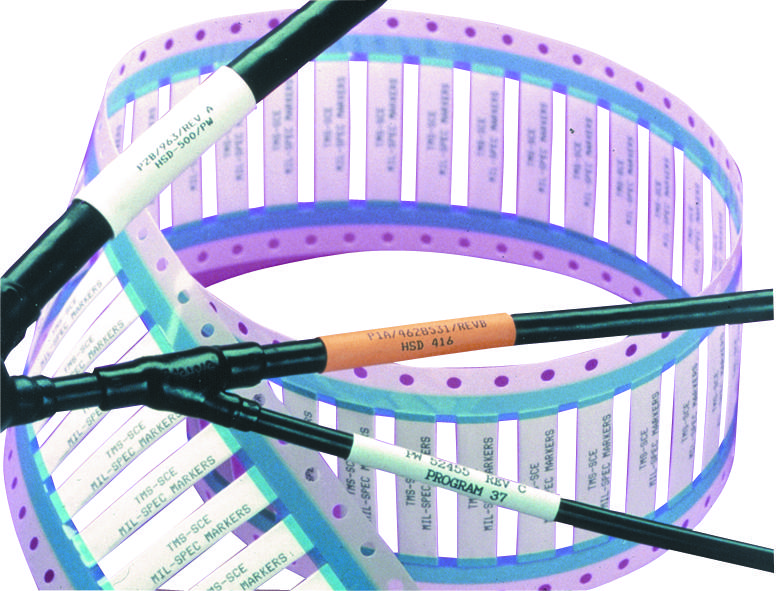

Raychem TE Connectivity TMSSCE31620S19 Wire Identification Sleeve
The heat-shrinkable wire identification sleeve is made from radiation cross-linked polyolefin, providing durable and permanent marking for wires and cables. Designed to meet high-performance requirements, it features a 2:1 shrink ratio, thick and rugged walls, and is easy to handle. The sleeve can be printed using computer-driven dot matrix or thermal transfer printers, which reduces errors and cycle time. Supplied in a flat, ladder format held between two punched polyester strips, it allows for straightforward feeding into compatible printers. The sleeve's markings are permanent immediately after printing and remain legible despite exposure to abrasion, cleaning solvents, and fuels. It is lightweight and offers quick recovery for heat-sensitive areas, making it suitable for industrial, defense, military, aerospace, and automotive applications.
Raychem TE Connectivity TMSSCE31620S19 Wire Identification Sleeve Specifications:
- Material: Radiation cross-linked polyolefin
- Shrink Ratio: 2:1
- Flammability: UL 224 recognized
- Service Temperature: -55°C to +135°C (-67°F to +275°F)
- Color Options: White, Yellow, and non-standard colors like Red, Blue, Green, etc.
- Shelf Life: 5 years from manufacturing date
- Storage Conditions: Maintain between 10°C to 40°C with 45:5% relative humidity
- Resistance Standards: SAE AMS-DTL-23053/5 Class 11:2, Class 1 & 3
- Electrical Resistance: Dielectric Strength ≥19.7 MV/m
- Volume Resistivity: ≥10^4 Ohm-cm
- Fire Resistance: Flame spread index 35 max, flame dripping and spread not allowed
- Resistance to solvents and fuels as per MIL standards
Buy the TE Series TMS-SCE: TMSSCE31620S19
Order the TE Series TMS-SCE TMSSCE31620S19 heat-shrinkable identification sleeve online today. Made from radiation cross-linked polyolefin, it features a 2:1 shrink ratio, rugged construction, and compatible with various printers for quick, accurate marking of wires and cables. Perfect for industrial, aerospace, military, and automotive applications, it offers excellent chemical, solvent, and fuel resistance. Its permanent markings remain legible under harsh conditions, and the sleeve is lightweight with quick recovery properties for heat-sensitive areas. Purchase now for reliable, high-performance wire marking.
Get TE Series TMS-SCE TMSSCE31620S19 today—built for durability and easy wire identification in tough environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity TMSSCE31620S19?
You can click on the BUY or RFQ button to purchase TMSSCE31620S19 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part TMSSCE31620S19?
You can download the TMSSCE31620S19 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of TMSSCE31620S19?
Raychem TE Connectivity
