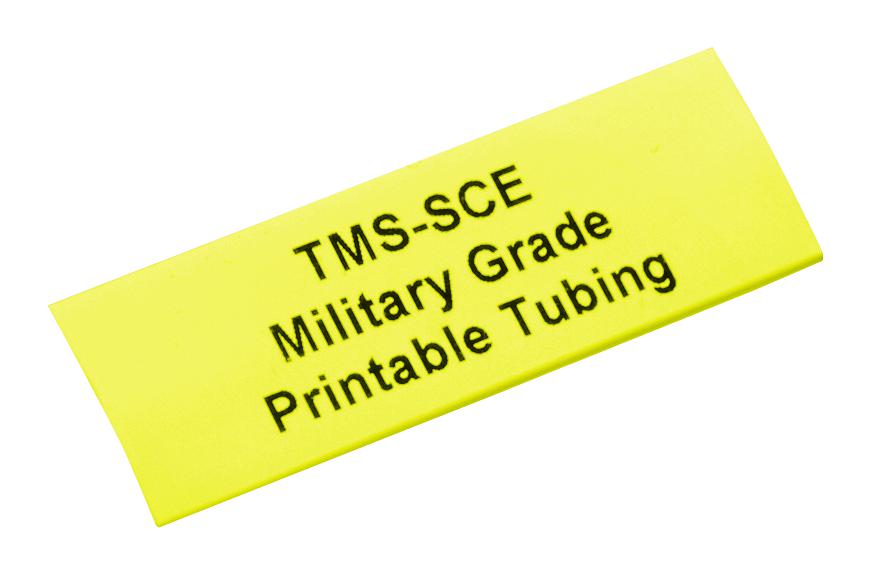

Raychem TE Connectivity TMSSCE34204 Heat Shrink Sleeve
TMS-SCE is a military-grade, heat shrink identification sleeve made from durable, flame-retarded, radiation cross-linked polyolefin. It features a 3:1 shrink ratio with a thin wall, lightweight design for fast recovery, ideal for identifying wires and cables across aerospace, military, and industrial applications. Available in ladder format, it can be laser marked for superior performance, resistant to key military and aerospace fluids, meeting industry standards and specifications such as AMS SAE DTL 23053/5. The TMS-SCE-2X variant offers a rugged wall, 2:1 shrink ratio, providing enhanced handling and installation qualities for demanding environments.
Raychem TE Connectivity TMSSCE34204 Heat Shrink Sleeve Specifications:
- Material: Cross-linked polyolefin
- Shrink Ratio: 3:1 for TMS-SCE, 2:1 for TMS-SCE-2X
- Temperature Range: -55°C to 135°C
- Flammability: Self-extinguishing, flame retardant
- Resistant to: Military and aerospace fluids (RW-2511)
- Standards: Meets AMS SAE DTL 23053/5, MIL 202 Method 215, AS5942
- Sleeve diameters: from 2.4mm to 57.15mm (aprox. 3/32 to 2 1/4 inches)
- Color Options: Pastel shades, white available in TMS-SCE-2X
- Shelf life: Refer to TE document 408-121006
- Certification: UL Listed, CSA Standard C22.2 No 198.1
- Compliance: RoHS II, REACH
Buy the Buy TE Connectivity TMS-SCE Heat Shrink Identification Part Number TMSSCE34204 Online
Purchase the TE Connectivity TMS-SCE heat shrink identification sleeve online today to enhance your wire and cable marking process. This military-grade, flame-retardant, cross-linked polyolefin sleeve features a 3:1 shrink ratio, is resistant to aerospace and military fluids, and can be laser marked for superior performance. Suitable for aerospace, military, and industrial applications, it meets strict industry standards for fire safety and durability. Easy to install, providing fast recovery and versatile sizes, this product guarantees high-quality wire labeling and long-lasting identification solutions.
Order your TE Connectivity Series TMSSCE34204 military-grade heat shrink identification sleeve today and ensure reliable wire and cable marking in demanding environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity TMSSCE34204?
You can click on the BUY or RFQ button to purchase TMSSCE34204 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part TMSSCE34204?
You can download the TMSSCE34204 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of TMSSCE34204?
Raychem TE Connectivity
