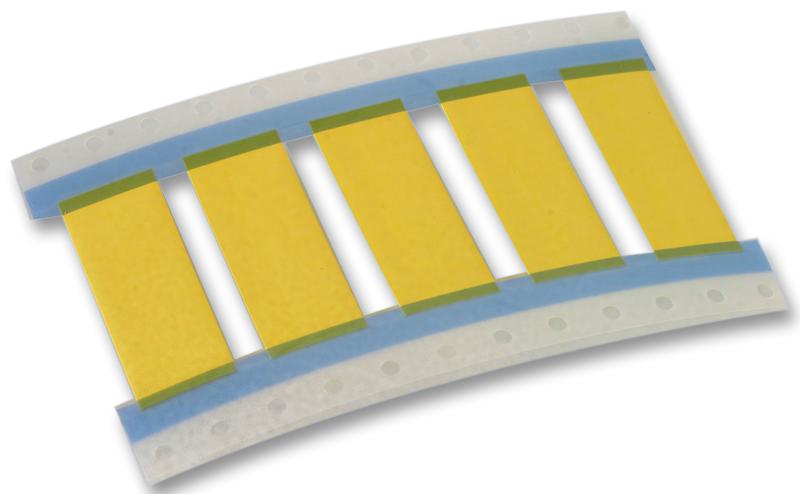

Raychem TE Connectivity TMSSCE38204 Heat Shrinkable Wire Markers
TMS-SCE military-grade heat shrinkable wire identification sleeves are designed for high performance and durability in demanding environments. Made from radiation crosslinked, flame-retardant polyolefin, these sleeves provide permanent, easily readable markings even after exposure to abrasion, chemicals, or fuels. Available in 2:1 and 3:1 shrink ratios, they feature compatibility with computer printers for error-free labeling. The sleeves meet industry standards such as SAE-AMS-DTL-23053/5, SAE AS81531, and MIL-STD-202, ensuring reliability in military and aerospace applications. Suitable for wire diameters from 0.79 mm to over 50 mm, these sleeves are CSA certified and UL recognized.
Raychem TE Connectivity TMSSCE38204 Heat Shrinkable Wire Markers Specifications:
- Material: Radiation crosslinked, flame-retardant polyolefin
- Temperature Range: -85°C to +135°C
- Minimum Recovery Temperature: +85°C
- Maximum Storage Temperature: +40°C
- Shrink Ratios: 2:1 and 3:1
- Inside Diameter: from 0.79 mm to over 50 mm depending on size
- Wall Thickness: varies, approximately 0.032-0.160 inches
- Color: White, yellow, and others (nonstandard colors available)
- CSA Certification: File 31929
- UL Recognized: UL224-WV1 rated
- Standards: SAE-AMS-DTL-23053/5, SAE AS81531, MIL-STD-202
- Printer Compatibility: Dot matrix, thermal transfer printers
- Operating Temperature: -85°C to +135°C
- Recommended Heat Gun: Standard reflector heat gun
Buy the Tyco Electronics TMS-SCE 38204 – Reliable Military-Grade Heat Shrinkable Wire Markers for Industrial Applications
Order Tyco Electronics TMS-SCE 38204 heat shrinkable wire markers online today and ensure secure, permanent identification for wires in demanding environments. Crafted from flame-retardant, radiation crosslinked polyolefin, these sleeves are designed to withstand extreme temperatures, abrasion, and chemical exposure. They are compatible with computer printers for precise labeling, meet military standards, and are CSA and UL certified for safety and reliability. Available in multiple sizes and colors, they simplify inventory management and provide long-lasting, legible markings even after exposure to harsh conditions. Shop now for dependable wire identification.
Buy Tyco Electronics TMS-SCE 38204 now and experience unmatched durability and easy installation in harsh conditions.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity TMSSCE38204?
You can click on the BUY or RFQ button to purchase TMSSCE38204 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part TMSSCE38204?
You can download the TMSSCE38204 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of TMSSCE38204?
Raychem TE Connectivity
