Raychem TE Connectivity TMSSCE38209 Heat Shrink Marker

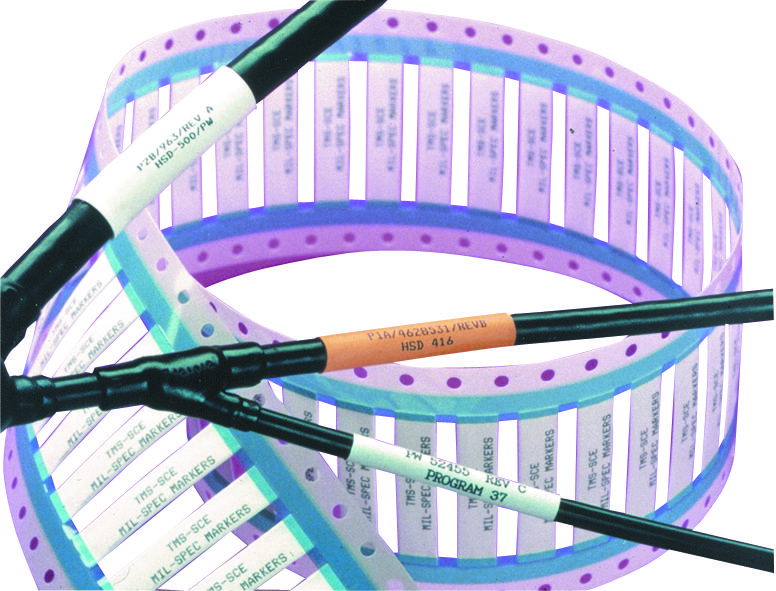

The TMS-SCE-3/8-2.0-9 is a military-grade heat-shrinkable wire identification sleeve designed for computer printing using dot matrix or thermal transfer printers. Crafted from durable, flame-retardant, radiation cross-linked polyolefin, this marker sleeve is suitable for high-performance wire and cable marking in defense, military, aerospace, and industrial applications. It provides permanent, legible markings that withstand abrasion, cleaning solvents, fuel, and oil exposure. The sleeve complies with SAE-AMS-DTL-23053/5 classes 1 and 3, and meets the mark permanence standards of SAE AS81531 and MIL-STD-202F before and after shrinking. Its lightweight design makes it ideal for aerospace uses, with quick recovery for heat-sensitive areas.
Raychem TE Connectivity TMSSCE38209 Heat Shrink Marker Specifications:
- Material: Radiation cross-linked polyolefin
- Heat Shrink Ratio: 2:1
- Operating Temperature Range: -85°C to +135°C
- Minimum Recovery Temperature: +85°C
- Maximum Storage Temperature: +40°C
- Color Options: White, Yellow, Red, Pink, Orange, Green, Blue, Violet, Gray, Black
- Sleeve Diameter: 3/8 inch (9.53 mm)
- Sleeve Length: 2.0 inches (50.8 mm)
- Wall Thickness: 0.032-0.075 inches (0.81-1.90 mm)
- Certification: UL Recognized, CSA Certified, MIL-STD-202F, SAE-AMS-DTL-23053/5 classes 1 and 3
- Print Compatibility: Dot matrix and thermal transfer printers
- Features: Permanent markings, quick recovery, lightweight, flame retardant
Buy the Tyco Electronics TMS-SCE-38209 – Reliable Military Heat Shrink for Industrial Applications
Purchase the Tyco Electronics heat shrink marker sleeves online to ensure high-quality wire identification in industrial, military, and aerospace applications. Designed from durable, flame-retardant polyolefin, these sleeves provide permanent, legible markings resistant to abrasion, oils, and solvents. Easy to print with dot matrix or thermal transfer printers, they offer quick shrinkage, making installation efficient. Suitable for harsh environments with operating temperatures from -85°C to +135°C, ensuring reliable wiring identification. Buy online now for fast delivery and dependable performance.
Get Tyco Electronics TMS-SCE-38209 today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity TMSSCE38209?
You can click on the BUY or RFQ button to purchase TMSSCE38209 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part TMSSCE38209?
You can download the TMSSCE38209 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of TMSSCE38209?
Raychem TE Connectivity
