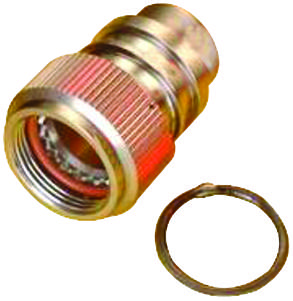

Raychem TE Connectivity TXR40AC000804AI Coaxial Adapter
This high-quality Tinel-Lock Adapter offers reliable connection and modular flexibility for coaxial cable assemblies. Made from durable aluminum alloy, it features precise dimensioning per ASME Y14.5M standards, with configurations including straight, 45°, and 90° angles. Designed for easy installation and compatibility with multiple cable sizes, it ensures optimal electrical performance. Suitable for industrial, telecommunications, and RF applications, this adapter guarantees secure, corrosion-resistant connections with excellent mechanical strength to meet demanding technical environments.
Raychem TE Connectivity TXR40AC000804AI Coaxial Adapter Specifications:
- Material: Aluminum alloy per QQ—A—225, nickel aluminum bronze per ASTM B150, or stainless steel per QQ—S—763
- Finish: See specification sheet 0157-002
- Configurations: 00 = Straight, 45 = 45°, 90 = 90°
- Entry Sizes: Customizable via SCD, larger sizes available with prefix S
- Braid Designator: Single layer 36 AWG, single layer 30 AWG or double layer 36 AWG
- Dimensions: Length varies based on connector code, with maximum sizes around 3.25 inches and diameters up to 2.75 inches
- Connections: Suitable for coaxial cables with thread, conduit, or modification options, including conduit thread and chain attachment capabilities
- Additional Options: Internal abrasion-resistant coating, optional O-ring materials like neoprene or fluorosilicone, lock wire holes, drain holes, and solid modifications
- Compatibility: Designed to meet ASME Y14.5M standards with precise tolerances, suitable for RF, industrial, and telecommunication environments
Buy the Buy TE Connectivity Tinel-Lock Adapter Part Number TXR40AC000804AI Online
Purchase the TE Connectivity coaxial adapter online today. Designed for high performance and durability, this adapter offers reliable RF and industrial connections. Made from rugged aluminum alloy, it features various configurations including straight, 45°, and 90°, with options for conduit threading, chain attachment, and internal coatings for abrasion resistance. Ensuring precise fit and secure connection, it is ideal for demanding environments requiring stable and corrosion-resistant performance, making it the perfect choice for professional technicians and engineers.
Get TE Connectivity TXR40AC000804AI today—built for precision and long-lasting durability in reliable coaxial connections.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity TXR40AC000804AI?
You can click on the BUY or RFQ button to purchase TXR40AC000804AI from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part TXR40AC000804AI?
You can download the TXR40AC000804AI datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of TXR40AC000804AI?
Raychem TE Connectivity
