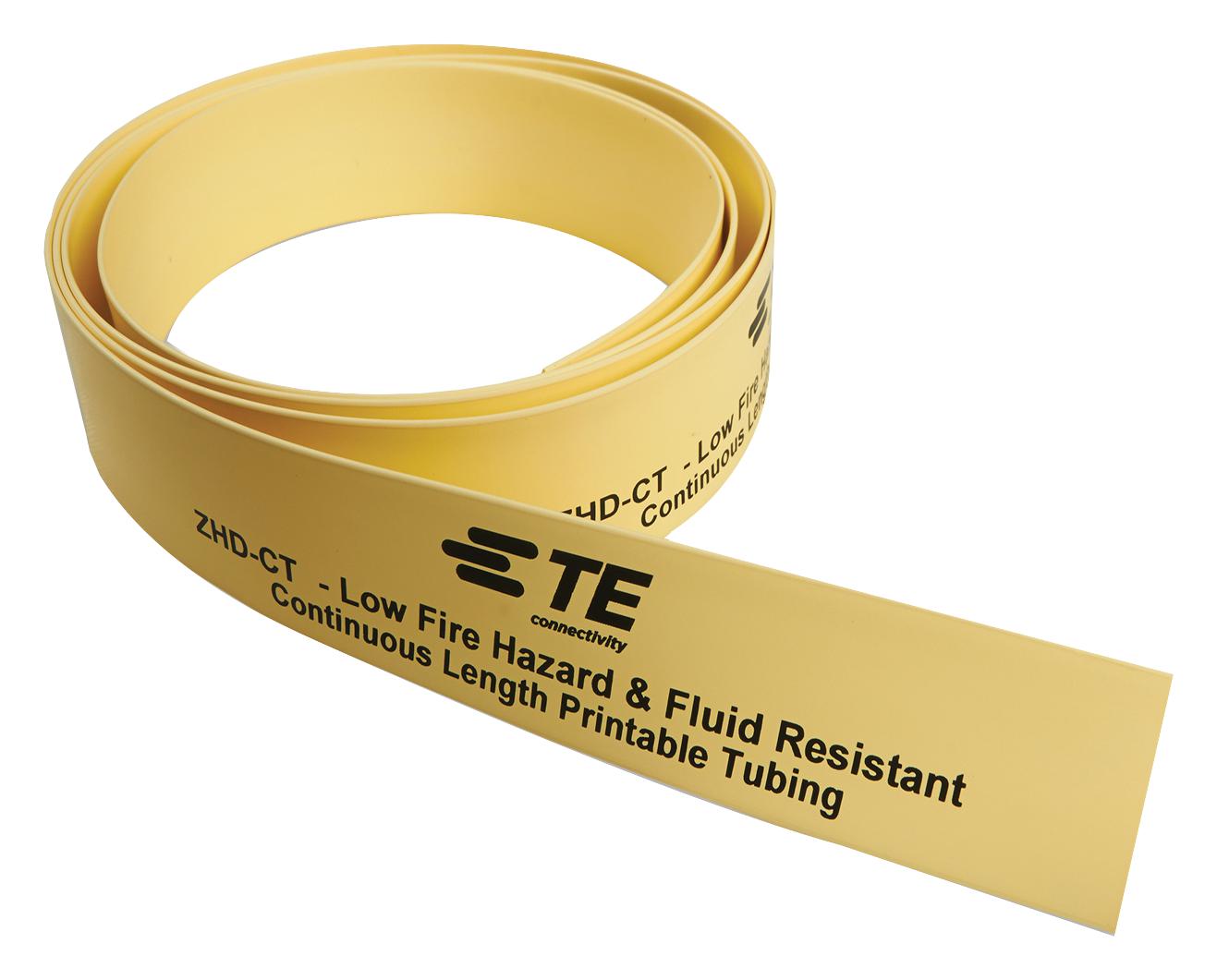

Raychem TE Connectivity ZHDCT40M381OUT9 Heat Shrink Marker
The ZHD-CT series is a heat shrinkable wire marker designed for high-performance installations, offering safety and reliability. It features a blend of D-CT and HX-CT characteristics, making it both zero halogen and diesel resistant. The marker is self-extinguishing, non-flame propagating, and resistant to industrial fluids as per TE specification RW-2536. It has a 2:1 shrink ratio and comes on a spool measuring 40 meters (131 feet). The operating temperature range is from -55°C to +125°C.
Raychem TE Connectivity ZHDCT40M381OUT9 Heat Shrink Marker Specifications:
- Heat shrink ratio: 2:1
- Spool length: 40 meters (131 feet)
- Expanded inside diameter options: 2.4mm, 3.2mm, 4.8mm, 6.4mm, 9.5mm, 12.7mm, 19.0mm, 25.4mm, 38.1mm
- Operating temperature range: -55°C to +125°C
- Material: Radiation cross-linked, zero halogen, diesel resistant
- Fire hazard classification: EN45545-2 Class 1 and 2
- Resistance: Industrial fluids, flame retardant properties
- Certifications: EN45545-2, BS 6853, NFPA 130, Federal Railroad Administration
- Spool diameter options vary, recommended for wire diameters from 1.27mm to 33.0mm depending on size
Buy the TE Connectivity ZHD-CT – Reliable Heat Shrink Cable Identification System for Industrial Applications
Purchase TE Connectivity ZHD-CT heat shrink marker sleeves online to ensure reliable and safe cable identification. These versatile, zero halogen, diesel resistant sleeves are designed for high-performance industrial, rail, and transportation applications. With a 2:1 shrink ratio and various diameter options, they provide excellent flame retardant properties and resistance to industrial fluids. Simplify your installation process with easy-to-use markers that meet strict safety standards like EN45545-2 and NFPA 130, ensuring compliance and durability in critical environments.
Get TE Connectivity ZHD-CT today—built for precision, safety, and long-lasting durability in wire marking and cable identification.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity ZHDCT40M381OUT9?
You can click on the BUY or RFQ button to purchase ZHDCT40M381OUT9 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part ZHDCT40M381OUT9?
You can download the ZHDCT40M381OUT9 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of ZHDCT40M381OUT9?
Raychem TE Connectivity
